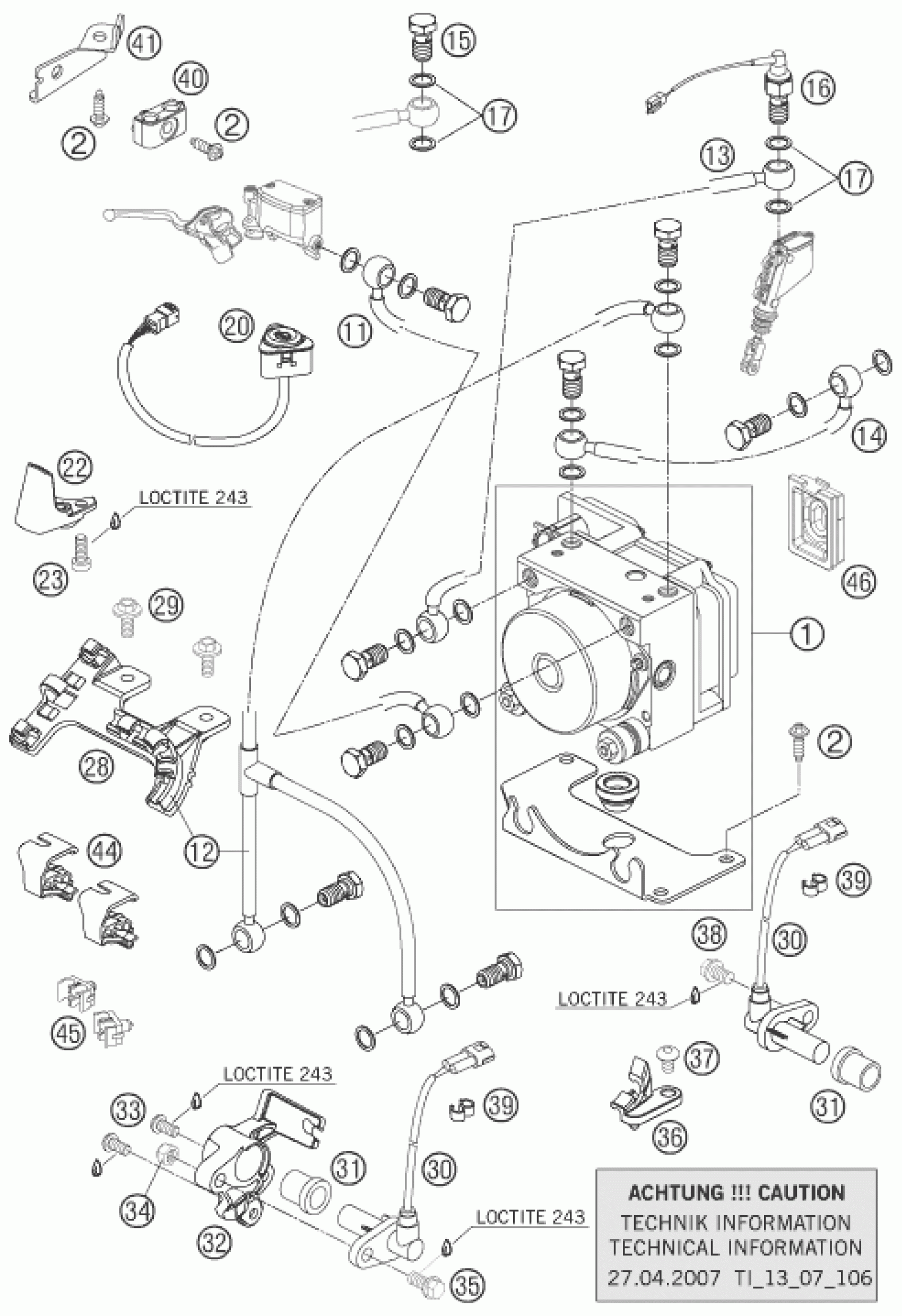

KTM 990 ADVENTURE BLACK ABS 2006 ABS Diagram

#

Description
Price

16

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

12

BRAKE HOSE 1190/715/810MM 06

60142011000

Unavailable

13

BRAKE HOSE L=360 08

60142012200

Unavailable

14

BRAKE HOSE L=845 08

60142013200

Unavailable

15

HOLLOW SCREW M10X1X19

50213025000

Unavailable

17

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

22

BRAKE HOSE GUIDE TOP 06

60101077000

Unavailable

23

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

28

BRAKE HOSE GUIDE LOWER 06

60101078000

Unavailable

29

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

30

ABS-SENSOR 06

60142025000

Unavailable

31

SLEEVE SENSOR HOLDER ABS

60142024050

Unavailable

32

SENSOR HOLDER FRONT 06

60142024000

Unavailable

33

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

34

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

35

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

36

CABLE SUPPORT SWING ARM 06

60142026000

Unavailable

37

SCREW TORX M5X10 05

58605083010

Unavailable

38

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

40

SUPPORT FOR BRAKE HOSE 06

60113046000

Unavailable

41

SUPPORT FOR BRAKE HOSE REAR 06

60113045000

Unavailable

1

ABS-MODULE 06

60142031000

Unavailable

2

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

11

BRAKE HOSE L=1320MM 06

60142010000

Unavailable

46

RUBBER SLEEVE 30X40 MM 06

60108017010

Unavailable

44

SUPPORT FOR BRAKE HOSE REAR 06

60113047000

Unavailable

45

Hose bracket 7/7mm

60113026000

Unavailable

20

SWITCH ABS 06

60142070000

Unavailable

39

CLIP 5/7 MM 06

60111094000

Unavailable
