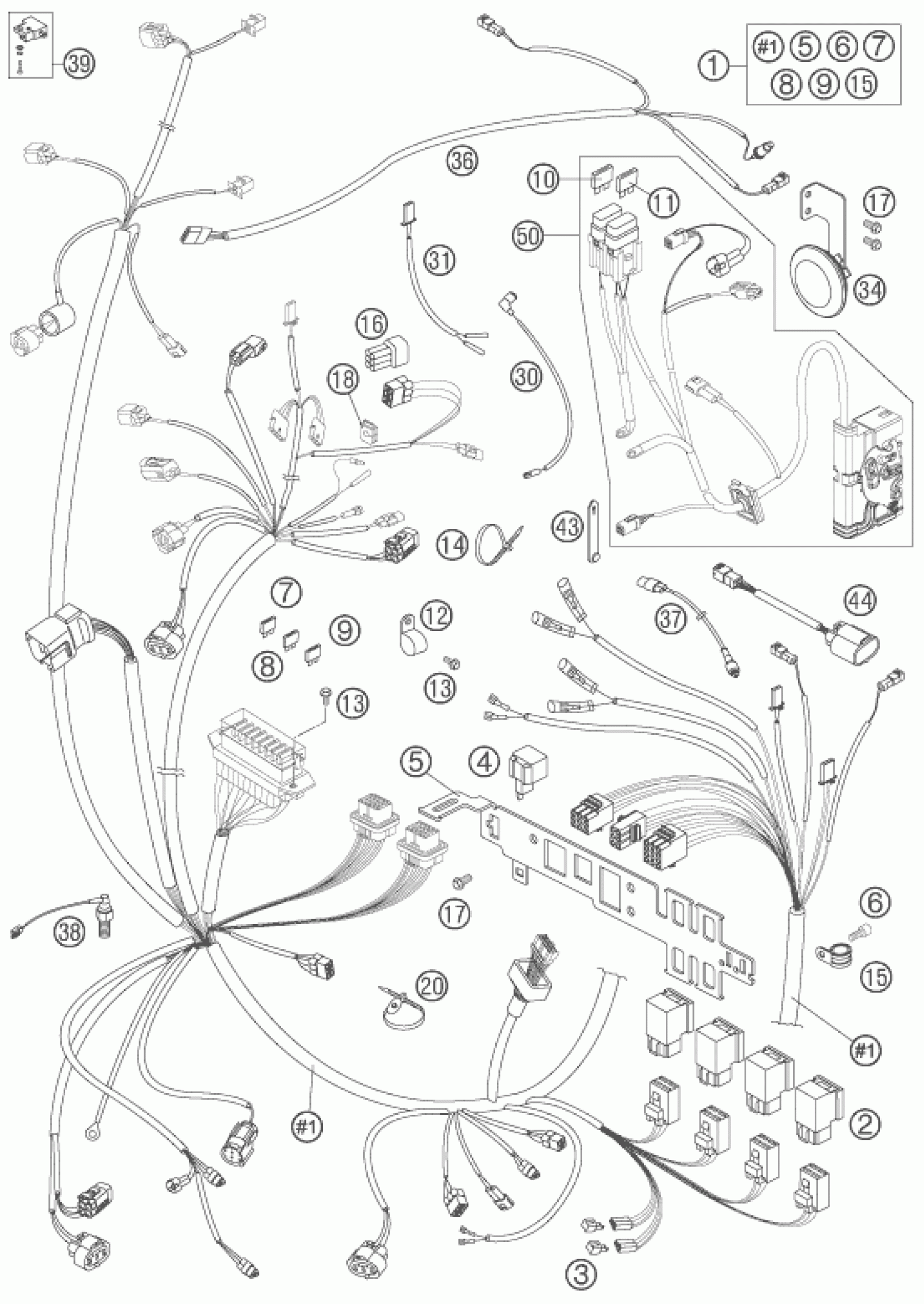

KTM 990 ADVENTURE BLACK ABS 07 <2007> WIRING HARNESS Diagram

#

Description
Price

1

MAIN CABLE HARNESS 990 ADV07

60111075200

$802.22

2

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

3

DIODE S3H-15 97

58411096100

$9.81

4

FLASHER UNIT 97

44611207200

$49.83

5

BRACKET FOR PLUGS 06

60111083000

$21.86

6

AH SCREW DIN0912-M 5X12

0912050123

$2.05

7

FUSE 5 A 2003

58011109105

Unavailable

8

Plug-in fuse, big 10A

58011109110

Unavailable

9

FUSE 15 A

58011109115

Unavailable

10

FUSE 25 A

58011109125

Unavailable

11

FUSE 40 A

58011109140

Unavailable

12

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable

13

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

14

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

14

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

15

CLAMP RSGU 15/12

49007439000

$5.23

16

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

17

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

18

RUBBER SLEEVE 22X18 MM 06

60108017015

Unavailable

20

CABLE TIE WITH PLUG 03

60011193000

$1.73

30

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

31

FLASHER CABLE FRONT 03

60011025000

$5.88

34

DC HORN 12V 06

60011060100

$29.54

36

WIRING HARNESS REAR 06

60111076000

$22.71

37

CLUTCH SWITCH 03

58411049100

$54.32

38

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

39

BRAKE LIGHT SW. FRONT CPL. 03

60011050000

$45.62

43

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

43

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

43

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

50

WIRING HARNESS ABS 06

60111079000

$268.43

44

STARTER INTERLOCK

61111020000

$97.89
