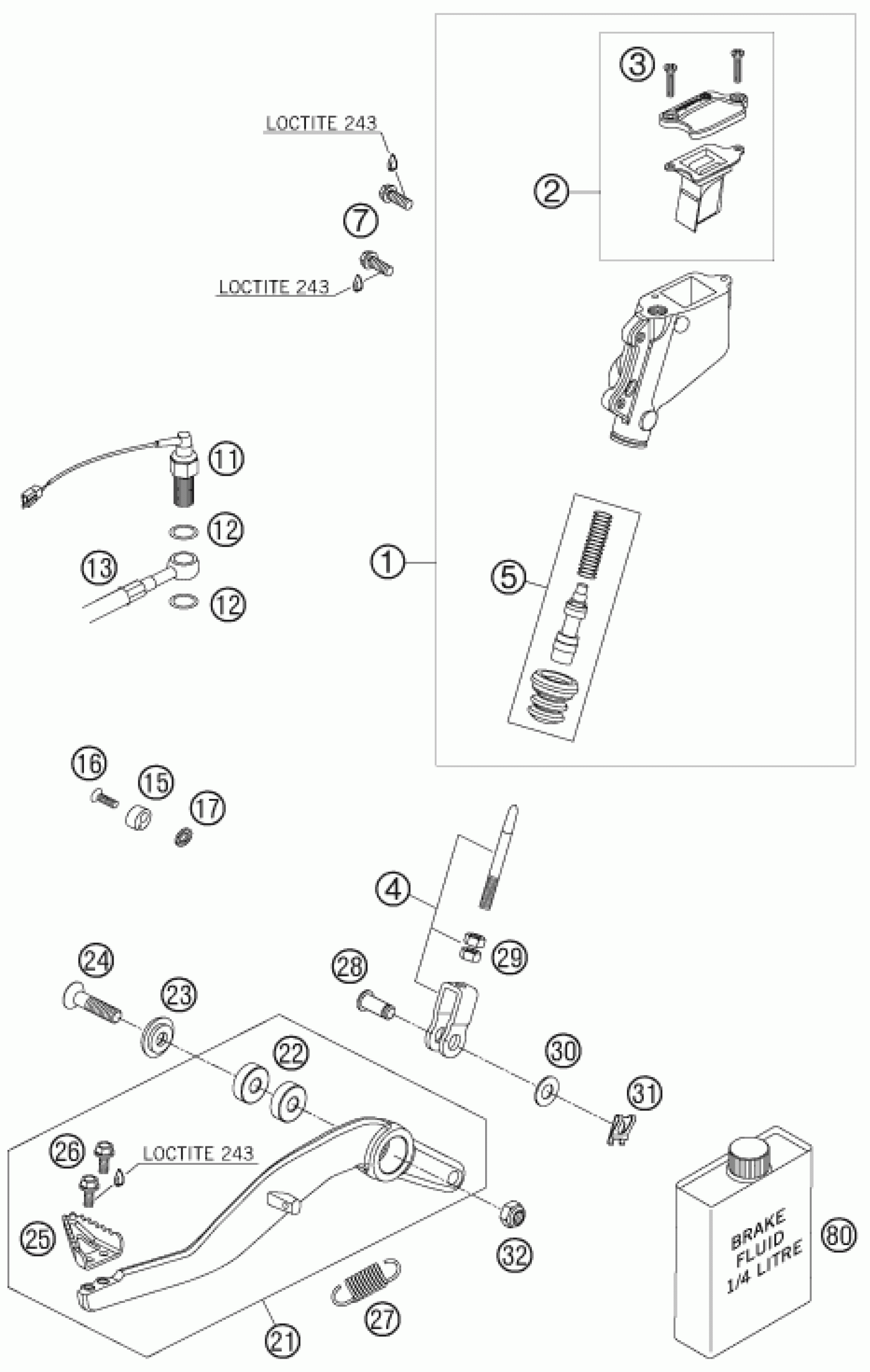

KTM 990 ADVENTURE BLACK ABS 07 <2007> REAR BRAKE CONTROL Diagram

#

Description
Price

15

BRAKE LEVER STOP LC4 03

58413048000

Unavailable

17

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

16

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

1

MAIN BRAKE CYLINDER CPL. 07

60013060200

Unavailable

2

COVER MAIN BRAKE CYLINDER CPL.

60013059100

Unavailable

3

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

Unavailable

4

PUSH ROD CPL. 06

63013056044

Unavailable

5

REPAIR KIT PISTON 03

60013061000

Unavailable

7

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

11

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

12

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

13

BRAKE HOSE L=360 08

60142012200

Unavailable

21

FOOT BRAKE LEVER CPL. 07

6001305004401S

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

SPECIAL WASHER ALU 8X24MM 03

60003061000

Unavailable

24

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

25

STEP PLATE FOOT BRAKE LEVER 03

60013051000

Unavailable

26

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

27

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

28

BOLT F. LINK FORK 8X20X16,5

60013057000

Unavailable

29

Hex. nut DIN 934 M6

0934060003

Unavailable

30

washer DIN 125 A -8.4

0125080003

Unavailable

31

SECURING CLIP D=8MM 03

60013058000

Unavailable

32

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
