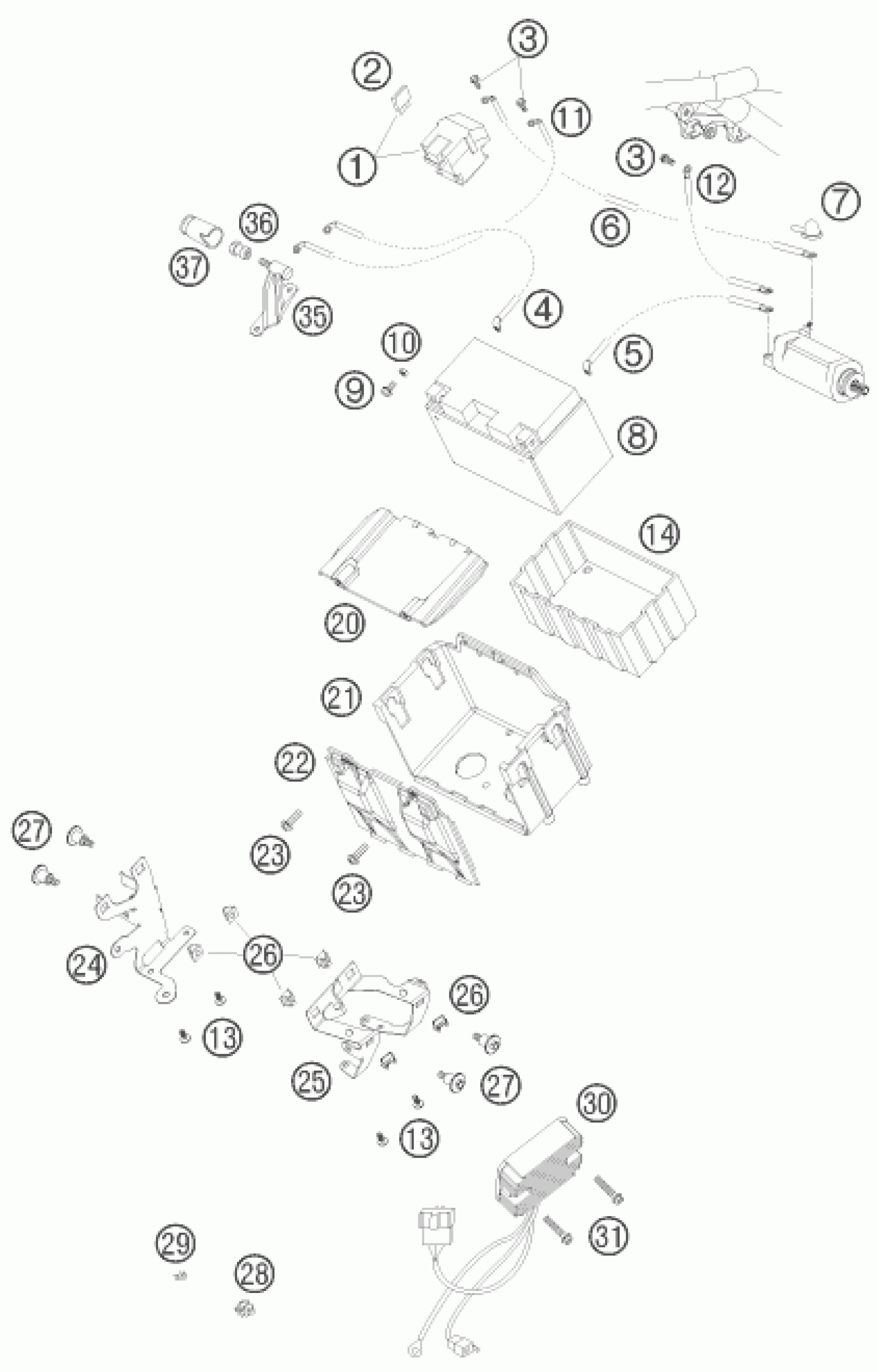

KTM 990 ADVENTURE BLACK ABS 07 <2007> BATTERY Diagram

#

Description
Price

1

STARTER RELAY 03

60011058000

$76.38

2

Plug-in fuse, big 30A

58011109130

Unavailable

3

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

4

BATTERY CABLE L=350MM LC8 03

60011059050

$17.10

5

GROUND CABLE L=470MM 03

60011097000

$13.64

6

STARTERCABLE L=475MM LC8 03

60011059000

$16.03

7

Rubber grommet, starter port 0

60040009000

$3.08

8

BATTERY 12V/11AH 03

60011053000

$366.89

9

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

10

Hex. nut DIN 934 M6

0934060003

$1.49

11

BATTERY CABLE 250MM 06

60111059000

$6.62

12

GROUND CABLE 100MM 06

60111097000

$7.92

13

SCREW FOR PLASTIC 50X12

0016050121

$2.05

14

BATTERY COVER 96

58411053050

$22.65

20

BATTERY BOX TOP PART 03

60011054007

$5.14

21

BATTERY BOX 03

60011054000

$16.07

22

BATTERY BOX FRONT PART 03

60011054006

$7.00

23

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

24

BRACKET STARTER RELAY 06

60111056000

$25.14

25

BRACKET VOLTAGE REGULATOR 03

60011055000

Unavailable

26

CAGE NUT M6 SL K100-1 1,5MM

60011038000

$2.32

27

Special screw M6x24 WS=8

60038083000

$3.08

28

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

29

WIRING HOLDER 16MM

57013072100

$1.49

30

VOLTAGE REGULATOR LC8 03

60011034000

$160.34

31

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

35

POSITIVE POL EXTENSION 06

60111048000

$9.34

36

HEXAGON NUT M6 SW=13 L=20

60111048020

$4.35

37

COVER CAP OUTER 06

60111048035

$6.54
