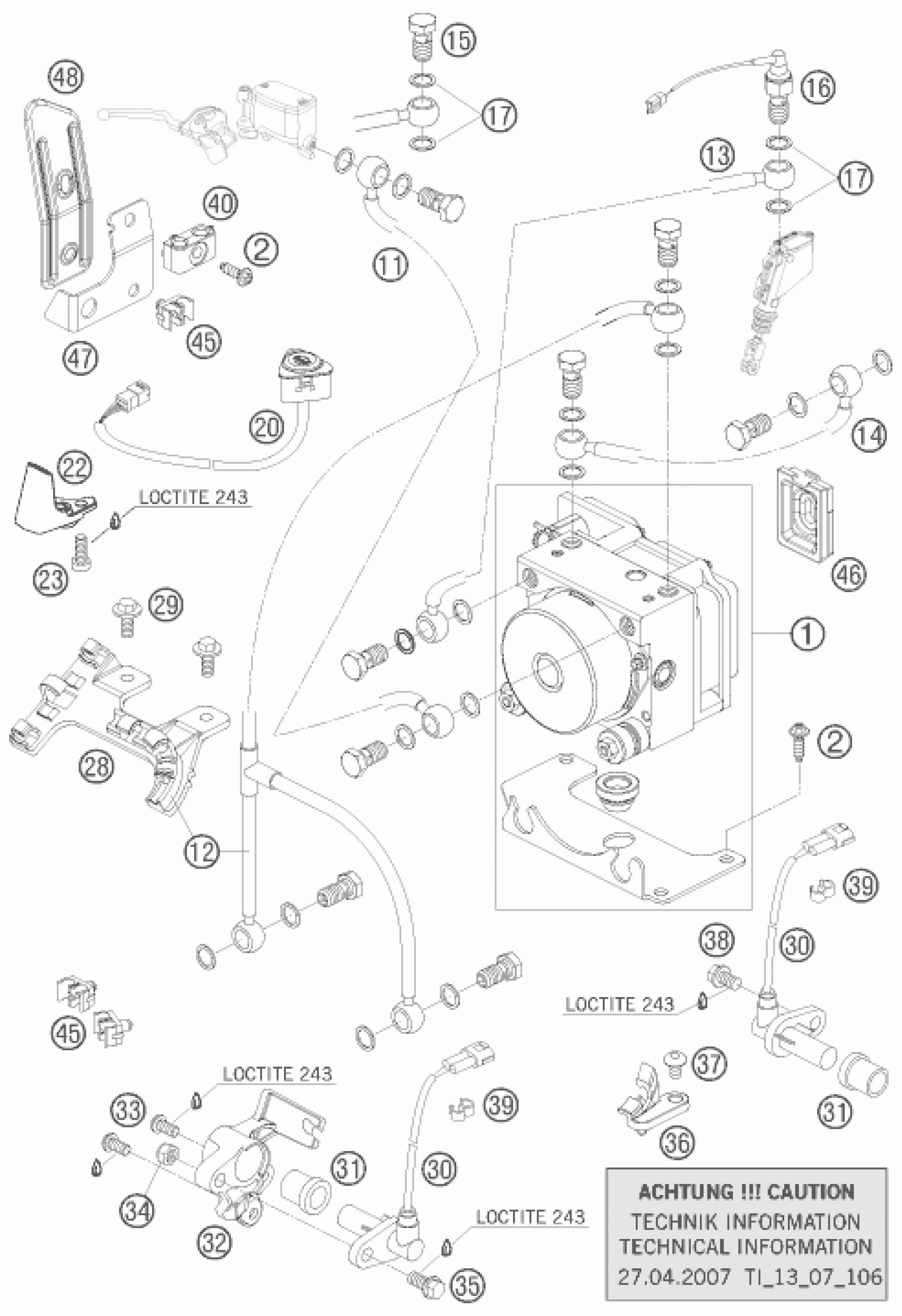

KTM 990 ADVENTURE BLACK ABS 07 <2007 ABS Diagram

sealing ring DIN 7603 10x14x1

0603100141

$2.05

SWITCH ABS 06

60142070000

$78.53

BRAKE HOSE GUIDE TOP 06

60101077000

$4.35

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

BRAKE HOSE GUIDE LOWER 06

60101078000

$4.70

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

ABS-SENSOR 06

60142025000

$104.43

SLEEVE SENSOR HOLDER ABS

60142024050

$5.32

HOLLOW SCREW M10X1X19

50213025000

$6.54

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

ABS-MODULE INCL. SUPPORT 08

60142031244

$1,816.11

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

BRAKE HOSE L=1320MM 06

60142010000

$79.38

BRAKE HOSE 1190/715/810MM 06

60142011000

$146.38

BRAKE HOSE L=360 08

60142012200

$63.74

BRAKE HOSE L=845 08

60142013200

$97.86

SENSOR HOLDER FRONT 06

60142024000

$8.59

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

Self lock. nut DIN985-M6-A2

0985060003

$2.05

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

CABLE SUPPORT SWING ARM 06

60142026000

$4.11

SCREW TORX M5X10 05

58605083010

$2.05

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

CLIP 5/7 MM 06

60111094000

$3.08

SUPPORT FOR BRAKE HOSE 06

60113046000

$5.23

Hose bracket 7/7mm

60113026000

$3.08

RUBBER SLEEVE 30X40 MM 06

60108017010

Unavailable

RETAINING PLATE BRAKE HOSE REA

60113044000

$10.88

HEAT PROTECT. BRAKE REAR HI.07

60113043000

$17.07
