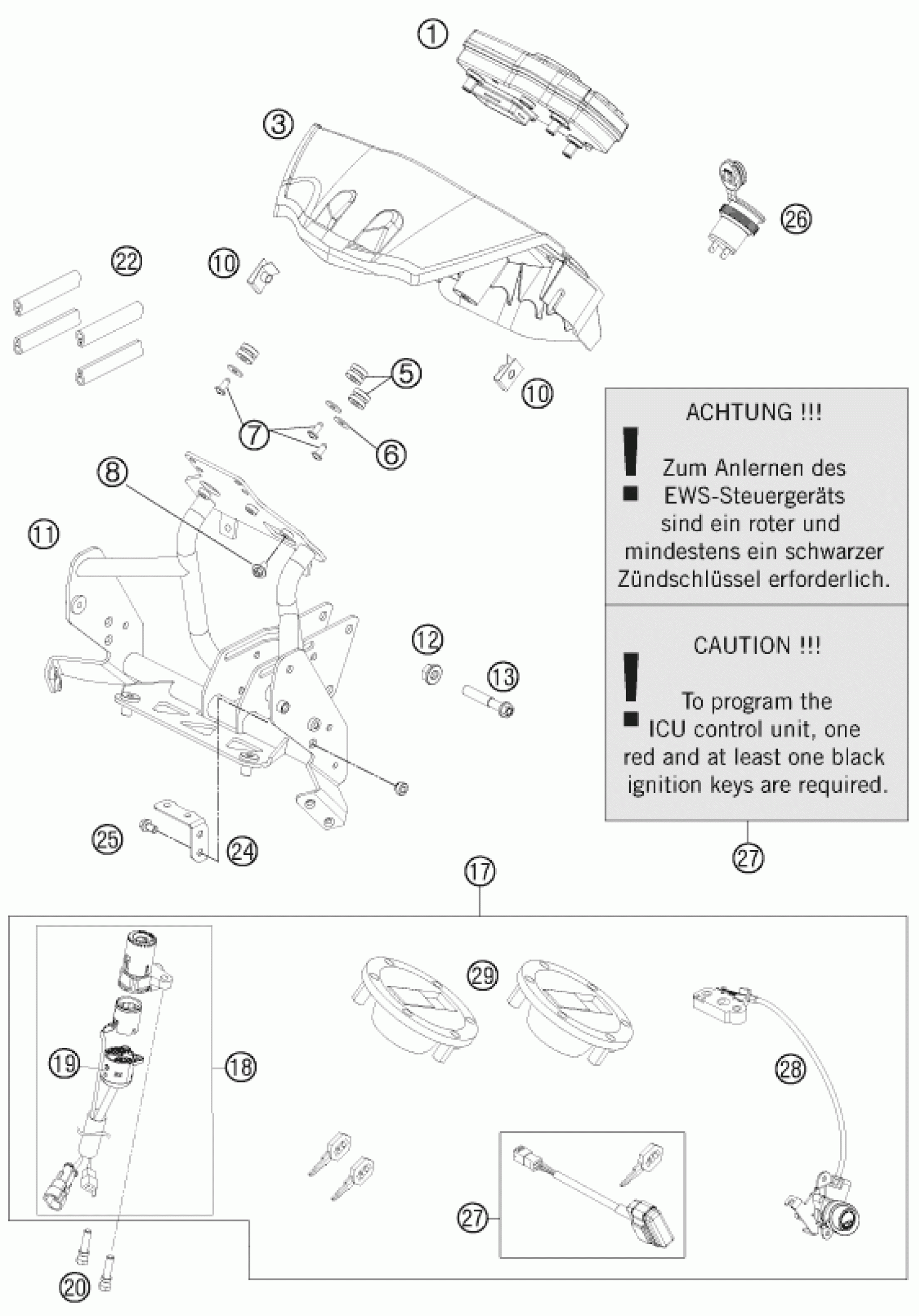

KTM 990 ADV. ORANGE ABS SPEC.EDIT <2012> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER 10

60114169200

$544.16

3

INSTRUMENTS COVER ABS 09

60114070200

$65.44

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

washer DIN 9021 A - 5.3

0021050003

$1.49

7

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49

8

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

10

clip nut M6

54603048100

$4.11

11

COCKPIT SUPPORT 06

60114010000

$413.07

12

Self locking nut M8 10.9

54310086200

$3.08

13

HH collar screw M8x45 TX40

0025080456

$4.11

17

LOCK SYSTEM 990 ADV. 09

60111066044

$710.09

18

IGNITION LOCK

60111066000

$362.30

19

INSERT IGNITION LOCK

60111066050

$100.50

20

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

$5.23

22

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.08

24

SUPPORT ROLLOVER SENSOR 06

60103001166

Unavailable

25

HH collar screw M6x10 TX30

0025060106

$3.08

26

SOCKET

60111042100

$20.09

27

IMMOBILIZER 990SM W. MASTERKEY

62611021000

$463.46

28

SEAT LOCK

60107050000

Unavailable

29

TANK PLUG

60007108000

$274.88

30

KEY WITH TRANSPONDER

62611067000

$172.97
