Description

Price

1

HANDLEBAR D=28MM NEKEN 08

60002001100

$186.99

2

THROTTLE GRIP CPL. DUKE 2000

58702010000

$58.71

3

GRIPP SET FULL WAFFLE

58302021100

$28.51

5

THROTTLE CABLE LC8 ADV 2003

60002091000

$96.48

6

Rear view mirror, left/right

58412040100

$65.63

9

CLUTCH SWITCH 03

58411049100

$54.32

10

MASTER CYLINDER MAGURA D=10.5

60002130000

$361.93

11

CLAMP MIRROR WITH CLAMP

60002044000

$53.38

12

HH collar screw M6x20 TX30

0025060206

$3.08

14

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

16

RUBBER FOR RESERVOIR '98

50302034000

$18.97

17

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

18

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

19

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

20

CLUTCH LEVER LONG CPL. 2003

60002031000

$64.69

21

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

23

CLUTCH PIPE LC8 ADV '03

60032063100

$116.49

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

25

HANDGUARD L/S+R/S CPL.BLCK

6000207910030

$64.59

32

START-STOP SWITCH 03

60011074100

$71.99

33

LIGHT SWITCH A.D. 03

60011070000

$159.97

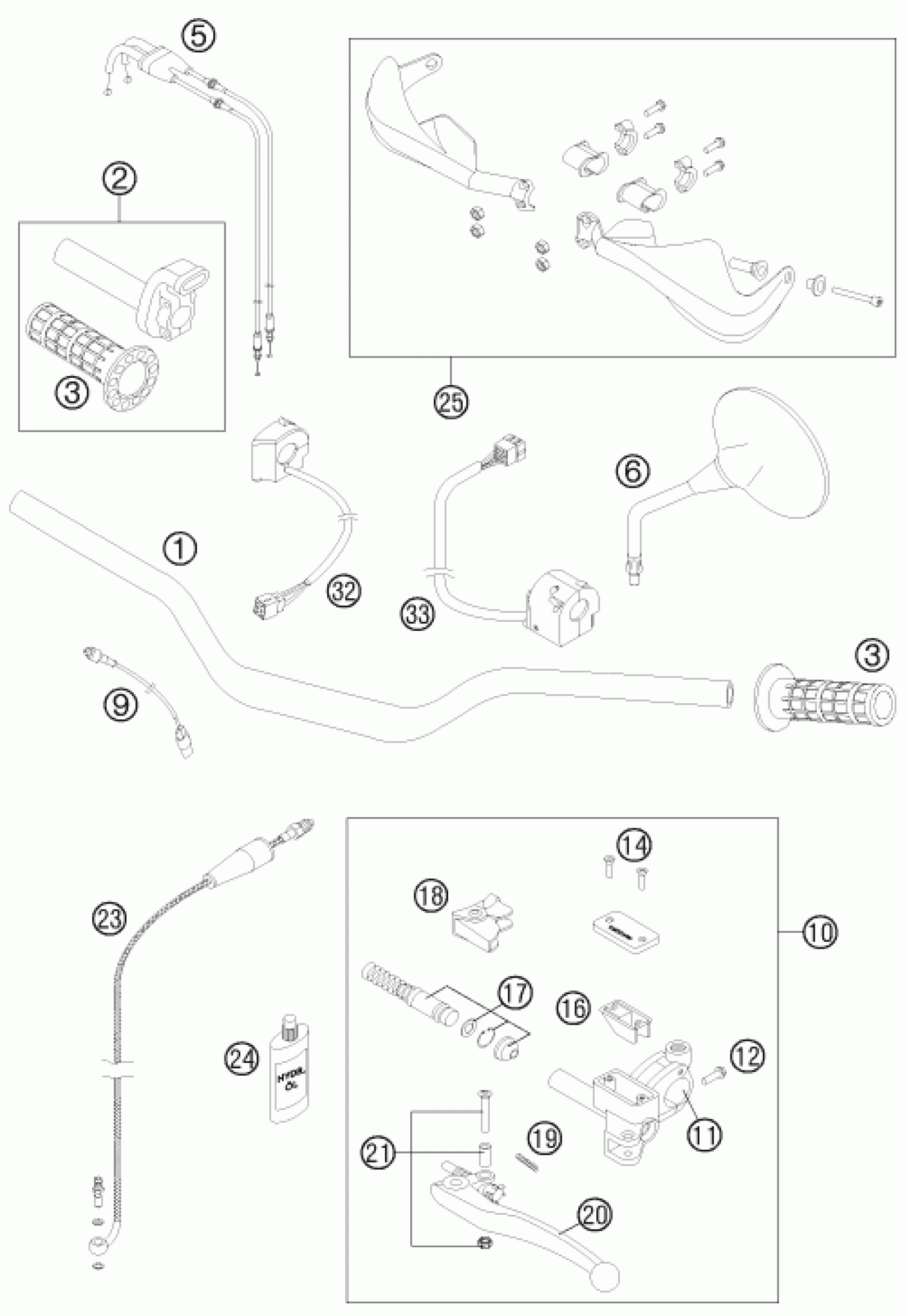

KTM 990 ADV. ORANGE ABS SPEC.EDIT <2012> HANDLEBAR, CONTROLS Diagram
