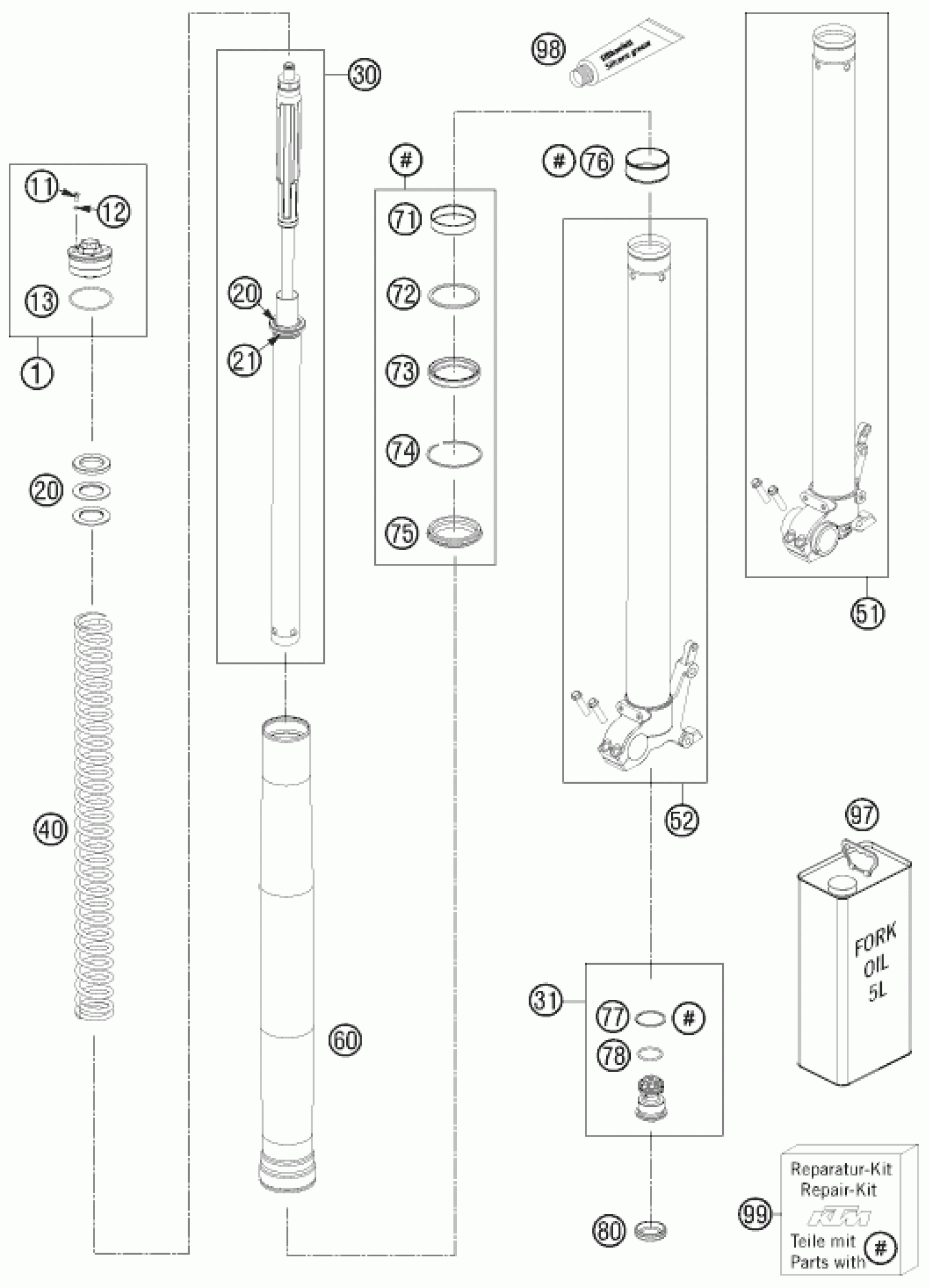

KTM 990 ADV. ORANGE ABS SPEC.EDIT <2012 FRONT FORK DISASSEMBLED Diagram

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

$127.99

Cross countersunk head screw M

48600481

$2.05

O-ring 3x1,5 NBR70

48600046

$1.49

O-ring 45x2 NBR70 siliconized

46810340

$1.49

Preload bush 26,5x42x5

48600037

$4.11

Preload bush 42x26,5x2,5

48600036

$2.05

Preload bush 26,5x42x1,5

48600053

$4.11

Spring retainer 33,5x43x3

48600021

$16.73

CARTRIDGE CPL. ADV ABS 07

48600140S

$325.06

TAP COMPRESSION CPL.

48600586S2

$53.01

Spring 4,8N/MM SET D=5.25MM

91410040S

$133.48

Spring D43.2 L465 4.6N/NM set

91410041SA

Unavailable

Spring D43.2 L465 5.0N/MM set

91410042SA

Unavailable

Axle clamp left ADV cmpl. 09

48600872S1

$376.65

AXLE CLAMP RIGHT ADV. CPL. 09

48600873S1

$644.20

OUTER TUBE L=610MM D=54/60 2L

48600553E

$383.88

DU-BUSH D48XD52X12DDL02

48600429

$12.05

Supportwasher 50x57,6x1,5

48600013

$3.08

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

Snap ring SB58x1,5 acc drawing

48600070

$2.05

DUST CAP D=48 58,4X11,8

48600400

$12.80

DU-BUSH D47XD49X20DDL02

48600428

$12.05

Copper disc 29,5x33,5x1

48600004

$4.11

O-ring 24x2 NBR70

35480320

$1.49

Rubber cap 35x10 NBR80

48600141

$4.11

FORK OIL SAE5 5L 2008

48600765S1

$149.59

SILICONE GREASE F. DUST STRI

T511

$34.59

REPAIR-KIT EXC FRONT FORK06/07

R14013

$106.21
