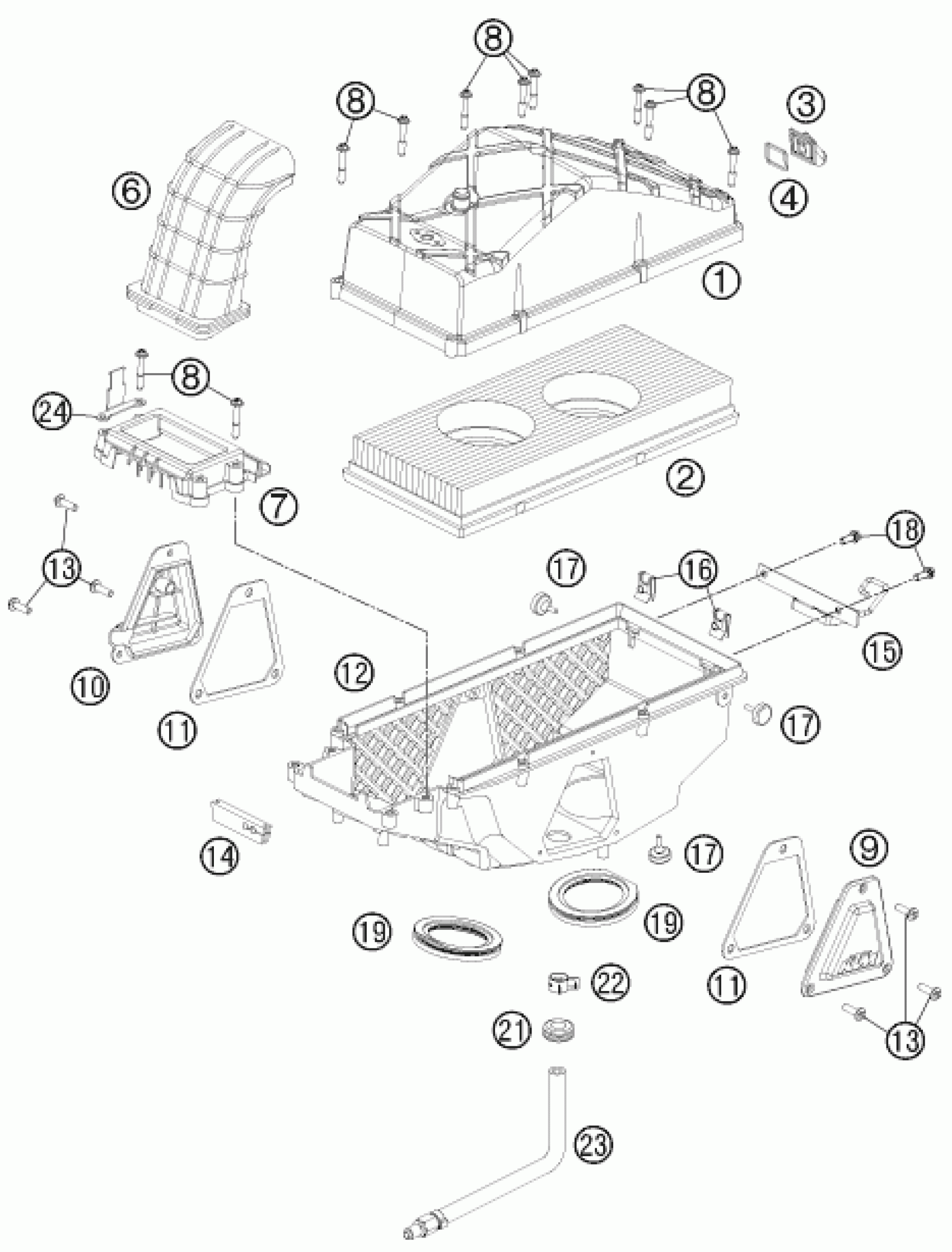

KTM 990 ADV. ORANGE ABS SPEC.EDIT <2012> AIR FILTER Diagram

#

Description
Price

1

AIRBOX COVER 990 DUKE 04

61006002000

$22.37

2

AIR FILTER EFI 05

61006015000

$39.82

3

CONNECTOR FOR SAS LC8 03

60006007000

$8.31

4

GASKET SAS CONNECTOR 03

60006007050

$1.49

6

INTAKE SNORKEL 03

60006040000

$27.32

7

AIRBOX FRONT PART LC8 03

60006004000

$12.28

8

SPECIAL SCREW K60X35/15 03

60006006000

$1.49

9

AIRBOX COVER L/S R/S 03

60006003002

$5.51

10

AIRBOX COVER R/S EFI 05

61006003002

$3.48

11

GASKET F. AIRBOX COVER L/S R/S

60006003050

$5.23

12

FILTER BOX LOWER PART 990 05

61006001000

$43.28

13

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

14

RUBBER SLEEVE F. THR. CABLE 05

61006001030

$5.23

15

SLS BRACKET PANEL

62106001020

$24.58

16

clip nut M6

54603048100

$4.11

17

Distance rupper airbox 03

60006001021

$2.05

18

HH collar screw M6x16 TX30

0025060166

$3.08

19

RUBBER SLEEVE AIRBOX 03

60036045000

$40.66

21

RUBBER SLEEVE FUEL HOSE 03

60006001041

$3.08

22

CLAMP STD DN14

00049140121

$1.49

23

FUEL HOSE 1 CPL.

60107016150

$60.02

24

RETAINING PLATE IMMOBILIZER

60111022000

$14.76
