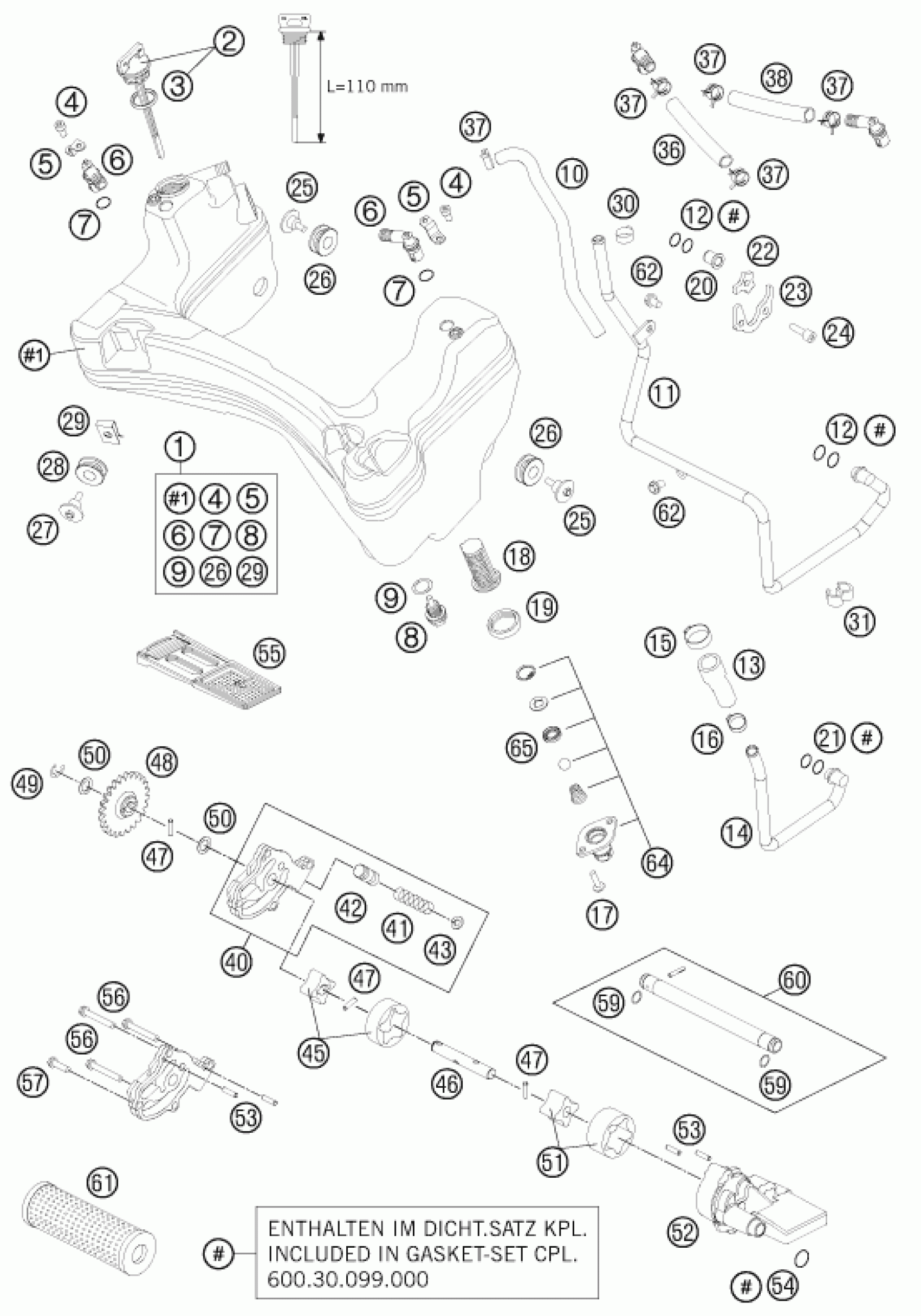

KTM 990 ADV. LIM. EDIT. OR ABS 11 <2011> LUBRICATING SYSTEM Diagram

#

Description
Price

10

PREFORMED HOSE D9X3,5

60038061203

$23.83

1

OIL TANK CPL.

60038081133

$559.84

2

OIL DIPSTICK CPL. W. O-RING 05

60030020100

$10.20

3

O-RING 19,00X3,00 NBR

0770191015

$2.05

4

AH SCREW DIN0912-M 5X10

0912050103

$1.49

5

ANGLE CONNECTOR BRACKET PANEL

60038082050

$6.07

6

ANGLE CONNECTOR LC8 03

60038082000

$2.05

7

O-RING 8X2 SILICONE

0770080020

$1.49

8

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

9

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

11

OIL PIPE ''B''

60038061044

$54.20

12

O-RING 9X2 VITON

0770090021

$1.49

13

PRE-FORMED HOSE 10X3,5

60038034100

$24.86

14

OIL PIPE ''A''

60038060044

$73.95

15

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

16

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

$3.08

17

HH collar screw M6x16 TX30

0025060166

$3.08

18

OIL SCREEN FINISHED 03

60038017000

$11.96

19

GASKET FOR OIL FILTER HNBR 03

60038018000

$6.91

20

PLUG 10MM LC8 03

60038024000

$6.72

21

O-RING 11X2 VITON

0770110021

$2.05

22

RETAINING PLATE 2 LC8 03

60038037000

$6.72

23

RETAINING PLATE 1 LC8 03

60038036000

$6.34

24

AH SCREW DIN0912-M 6X16

0912060163

$1.49

25

Special screw M6x24 WS=8

60038083000

$3.08

26

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

27

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

28

RUBBER SLEEVE D=12MM

41001052000

$4.11

29

clip nut M6

54603048100

$4.11

30

VARIABLE ONE-EAR CLAMP 18,5MM

00050185706

$3.08

31

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

36

OIL TANK BREATHING HOSE R/S

60038059130

$25.35

37

CLAMP STD DN16

00049160121

$2.05

38

OIL TANK BREATHING HOSE L/S

60038059083

$20.19

40

PRESSURE PUMP HOUSING CPL. 10

60038010133

$51.24

41

CONTROL SPRING LC8 3,5 BAR

60038026000

$1.49

42

CONTROL PISTON LC8 03

60038028000

$5.23

43

shim

50337073000

$2.05

45

ROTOR-SET PRESSURE PUMP 03

60038011000

$45.06

46

OIL PUMP SHAFT 03

60038002000

$26.52

47

needle roller NRB 4x15.8 G2

0402041580

$2.05

48

OIL PUMP GEAR 24-T

60038001124

$44.12

49

retaining washer DIN 6799 - 8

0799080000

$1.49

50

washer 10x16x0.5

60038007010

$2.33

51

ROTOR-SET 19MM 03

60038009000

$52.91

52

SUCTION PUMP CASE 03

60038008000

$77.14

53

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

54

O-RING 13,3X2,4 VITON

0770133024

$2.05

55

OIL SCREEN 03

60038016000

$11.87

56

HH collar screw M6x40 TX30

0025060406

$3.08

57

HH collar screw M6x25 TX30

0025060256

$3.08

59

o-ring 10.00x1.00 NBR70

0770010010

$2.05

60

OIL INJECTION TUBE GEAR 05

60030065100

$16.82

61

OIL FILTER 03

60038015000

$20.66

62

HH collar screw M6x10 TX30

0025060106

$3.08

64

OIL TANK VALVE CPL.

60038060102

$76.41

65

SHAFT SEAL R.10X18X4 B-VITON

0760101842

$10.09
