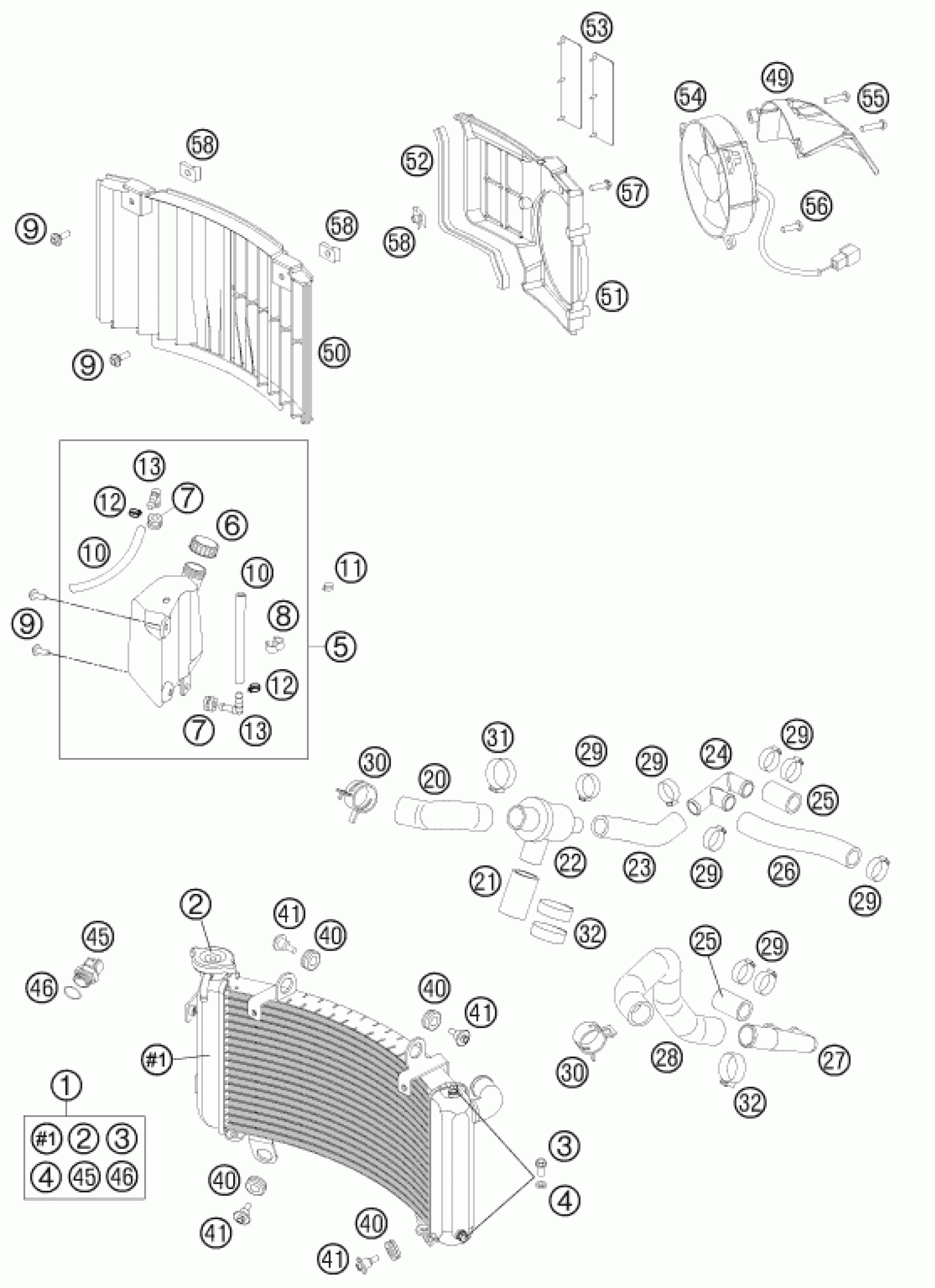

KTM 990 ADV. LIM. EDIT. OR ABS 11 <2011> COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR LC8 03

60035010000

$401.85

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

HH collar screw M6x10 TX30

0025060106

$3.08

4

ALU-GASKET 6X10X1.5

60035048000

$3.08

5

WATER EXPANSION TANK 03

60035065000

$37.66

6

PLUG F. EXPANSION TANK

60035066000

$6.72

7

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

8

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

9

HH collar screw M6x15 TX30

0024060156

$3.08

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

12

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

13

Angle piece, reservoir

60035068000

$3.08

20

RADIATOR HOSE THERM./RAD.

60035031000

$19.44

21

RADIATOR HOSE THERM./PUMP 03

60035030000

$11.96

22

THERMOSTAT 75° CPL. W. CASE 03

60035017000

$62.64

23

RADIATOR HOSE THERM./DISTR. 03

60035025000

$18.41

24

DISTRIBUTOR R/S 18/18/18MM 03

60035019000

$5.10

25

RADIATOR HOSE CYL./DISTR. 03

60035026000

$10.46

26

RADIATOR HOSE DISTR./DISTR. 03

60035027000

$18.41

27

DISTRIBUTOR L/S 18/18/25MM 03

60035028000

$12.99

28

RADIATOR HOSE RADIATOR L/S 03

60035024000

$35.80

29

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

$3.08

30

CLAMP STD DN32

00049320121

$4.11

31

VARIABLE ONE-EAR CLAMP 34,6MM

00050346706

$4.11

32

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

45

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

46

O-ring 17X1.5

0770017015

$1.49

49

FAN CAP 05

60035044050

$5.23

50

RADIATOR PROTECTOR 03

60035040000

$14.19

51

FAN COWL L/S 03

60035044000

$25.79

52

EDGE PROTECTOR PER METER

58312085100

Unavailable

53

FAN CLACK RUBBER 08

62635044050

$8.03

54

FAN L/S 03

60035041000

$164.83

55

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

56

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

57

HH collar screw M6x20 TX30

0024060206

$3.08

58

clip nut M6

54603048100

$4.11
