Description

Price

1

MAIN WIRING HARNESS 950 SM 07

62511075100

$490.44

2

SUPPORT BRACKET L/S 05

58611083000

Unavailable

3

SUPPORT BRACKET R/S 05

58611183000

Unavailable

4

CLAMP RSGU 15/12

49007439000

$5.23

5

AH SCREW DIN0912-M 5X10

0912050103

$1.49

6

SCREW FOR PLASTIC 50X12

0016050121

$2.05

7

DUMMY PLUG ALARM SYSTEM 05

61011075020

$14.67

8

BRACKET RELAY 05

62511057050

$12.19

9

Plug-in fuse, big 10A

58011109110

Unavailable

9

FUSE 15 A

58011109115

Unavailable

10

STARTER RELAY '96

58411057000

$22.82

11

DIODE S3H-15 97

58411096100

$9.81

14

RANGE CHANGE METAL NUT M5

54603048200

$5.23

15

HH collar screw M5x12 TX30

0025050126

$3.08

18

FLASHER UNIT 97

44611207200

$49.83

19

FUSE-BOX COVER

58511075510

$12.61

20

DC HORN 05

62511060000

$30.85

21

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

22

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

24

Cable tie 200/4.6mm black

44011076200

Unavailable

23

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

24

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

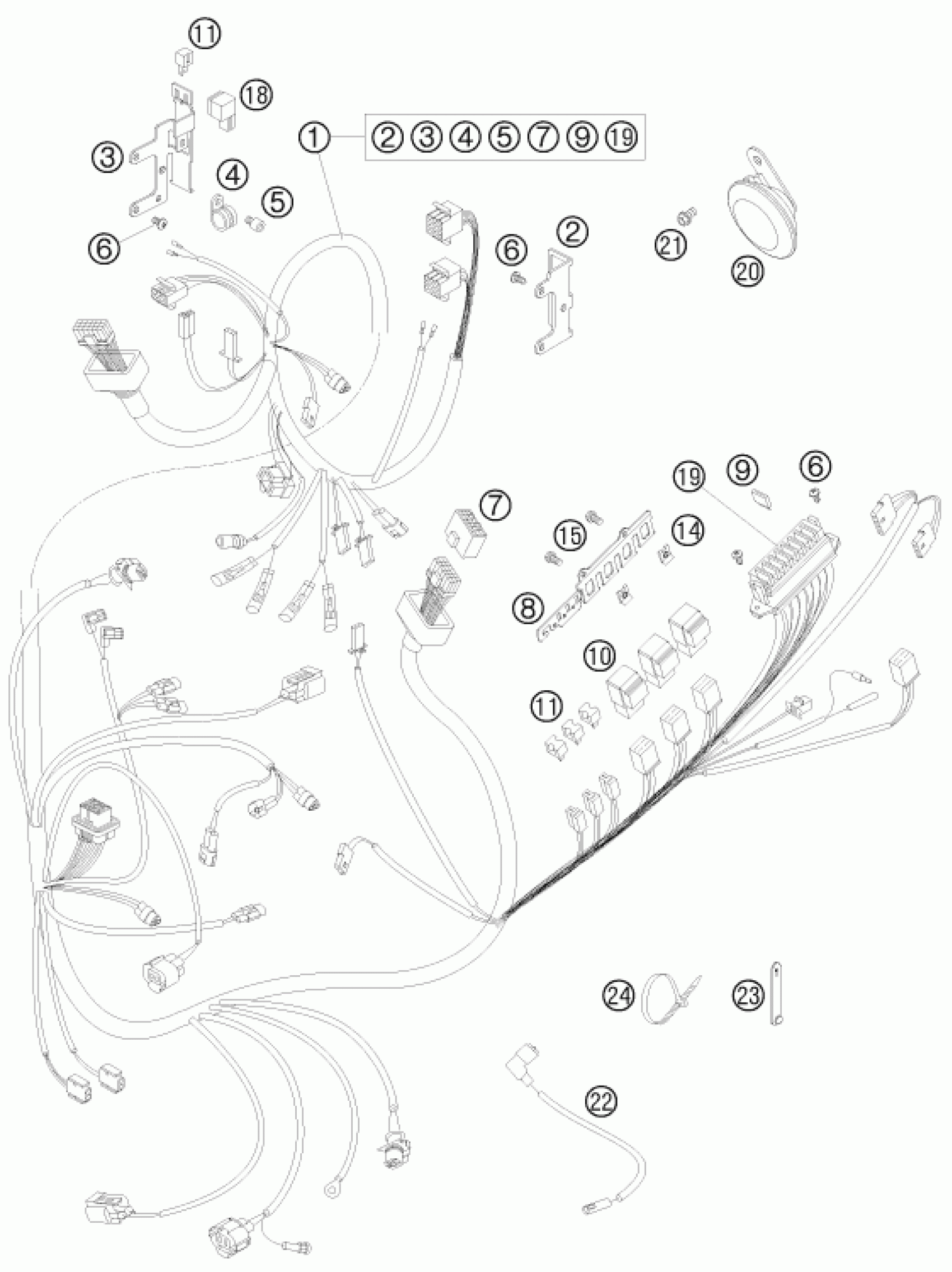

KTM 950 SUPERMOTO R 2008 WIRING HARNESS Diagram

MAIN WIRING HARNESS 950 SM 07

SUPPORT BRACKET L/S 05

SUPPORT BRACKET R/S 05

CLAMP RSGU 15/12

AH SCREW DIN0912-M 5X10

SCREW FOR PLASTIC 50X12

DUMMY PLUG ALARM SYSTEM 05

BRACKET RELAY 05

Plug-in fuse, big 10A

FUSE 15 A

STARTER RELAY '96

DIODE S3H-15 97

RANGE CHANGE METAL NUT M5

HH collar screw M5x12 TX30

FLASHER UNIT 97

FUSE-BOX COVER

DC HORN 05

HH COLLAR SCREW M6X10 TX30

OIL-PRESSURE SWITCH CABLE 03

Cable tie 200/4.6mm black

RUBBER CABLE TIE 45MM 03

RUBBER CABLE TIE 75MM 03

CABLE TIE 100/2,5MM BLACK
