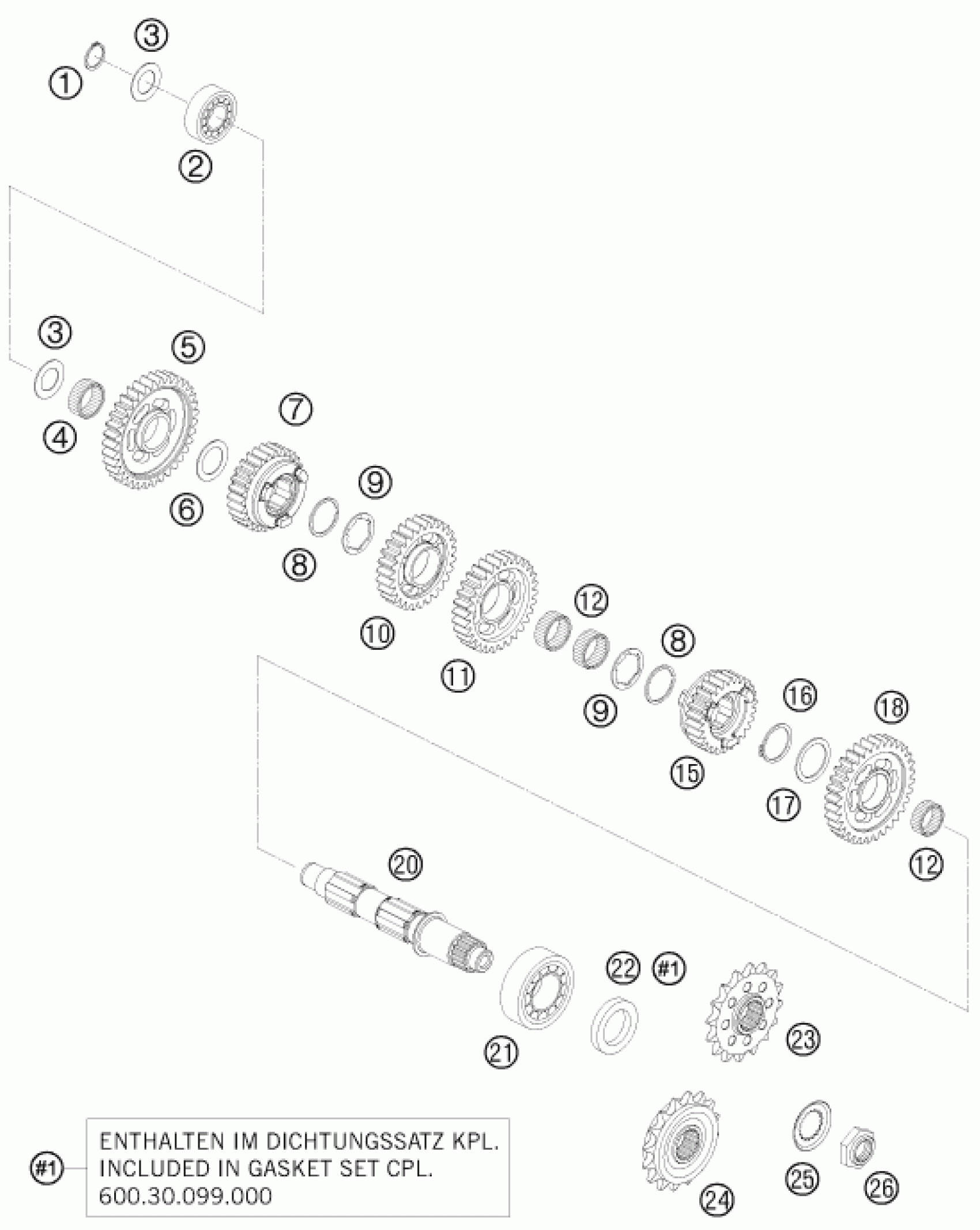

KTM 950 SUPERMOTO R 2008 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

6

STOP DISK 24,3/35,75/1

60033044000

$3.08

7

SLIDING GEAR 5.G ''600 5S27''

60033015000

$120.61

1

CIRCLIP DIN471 20X1,2

0471200120

$2.05

2

BALL BEARING 6204 DU J1 C3

0625062040

$28.98

3

STOP DISK 20,2 X 34 X 1

60033043000

$2.05

4

NEEDLE BEAR. K 24X28X13 TN

0405242813

$18.13

5

IDLER GEAR 1.G ''600 1S35''

60033011000

$73.63

8

LOCK RING WS 30

0417300151

$3.08

9

STOP DISK 26,2/36/1,5

60033045000

$5.23

10

IDLER GEAR 4.G ''600 4S27''

60033014000

$96.21

11

IDLER GEAR 3.G ''600 3S30''

60033013000

$98.73

12

NEEDLE BEAR. K 26-31-13

0405263113

$8.59

15

SLIDING GEAR 6.G ''600 6S26''

60033016000

$133.51

16

CIRCLIP DIN0471-30X1,5 NIRO

0471300151

$7.56

17

STOP DISK 30,2/39/1,5

60033046000

$3.48

18

IDLER GEAR 2.G ''600 2S32''

60033012000

$89.76

20

COUNTERSHAFT 03

60033010000

$137.07

21

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21

22

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

23

CHAIN SPROCKET 17-T 03

60033029017

Unavailable

24

Chain sprocket 17-t, damped 0

60033129017

Unavailable

25

Securing plate toothed

60033034000

$2.05

26

Hexagon nut M20x1.5 WS32

60033035000

$12.43
