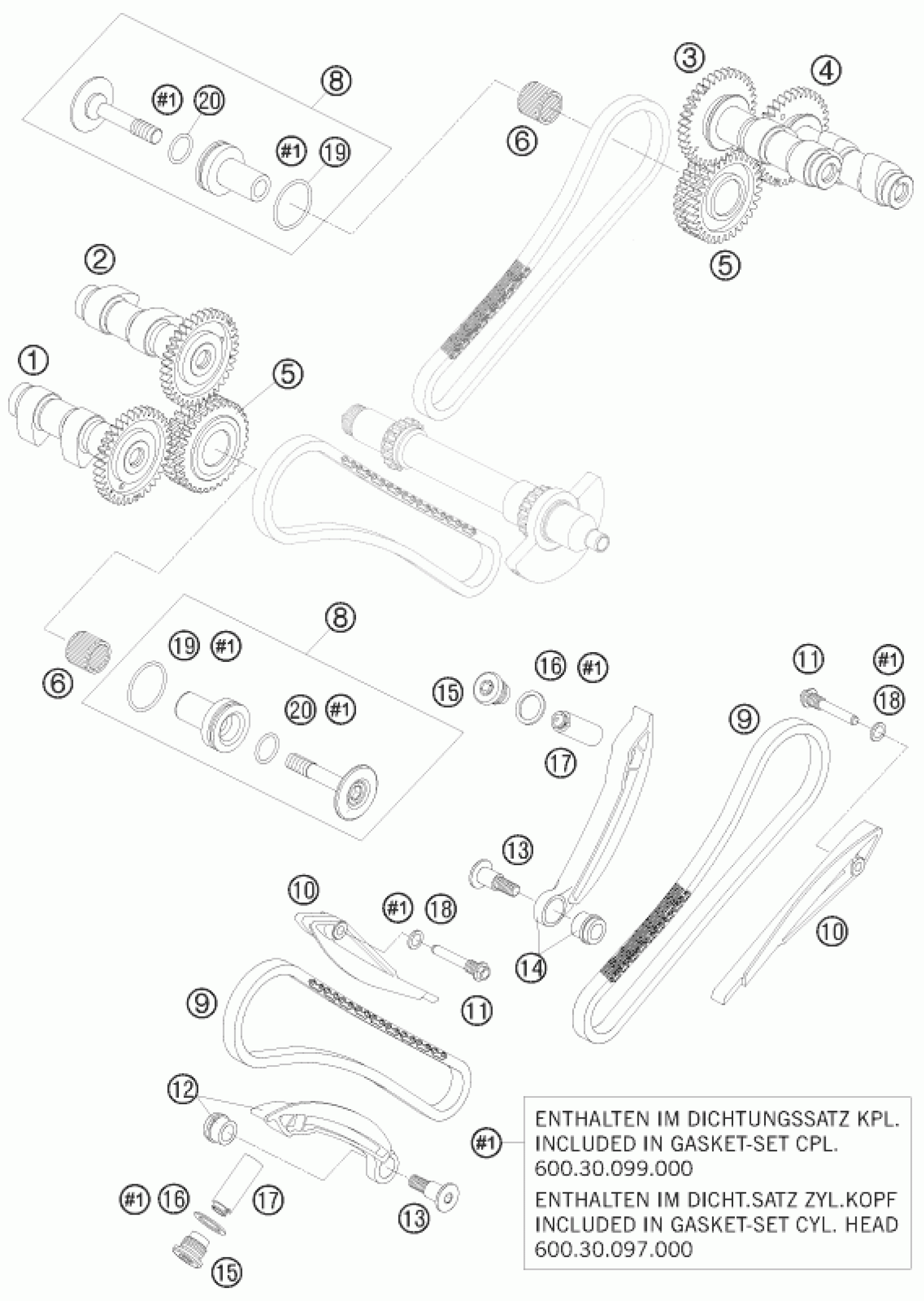

KTM 950 SUPERMOTO R 2008 TIMING DRIVE Diagram

#

Description
Price

20

O-ring 16x2 Viton 75

0770160021

$3.08

19

O-RING 29X2 VITON

0770290020

$3.08

1

CAMSHAFT EXHAUST CPL. FRT 03

60036010144

$178.42

2

CAMSHAFT INTAKE CPL. FRT. 03

60036009144

$369.32

3

CAMSHAFT INTAKE CPL. REAR 03

60036109144

$108.39

4

CAMSHAFT EXHAUST CPL. REAR 03

60036110144

$177.81

5

TIMING GEARS 32-T CPL. 03

60036070000

$109.88

6

NEEDLE BEARING K18/24/20

0405182420

$13.08

8

BEARING BOLT

60036071100

$20.99

9

TOOTH CHAIN 88 LINK 6,35PITCH

60036013000

$77.41

10

GUIDE RAIL 03

60036001000

$7.10

11

BUSHING SCREW 2 CYL. 03

60036002060

$11.12

12

TENSIONER RAIL CPL. FRONT 03

60036002000

$9.34

13

COLLAR SCREW AH M8 03

60036002050

$10.65

14

TENSIONER RAIL CPL. REAR 03

60036102000

$9.62

15

SCREW PLUG M16X1,5 03

60036008000

$11.12

16

CU SEAL-RING DIN7603 16X20X1,3

0603162013

$1.49

17

TIMING-CH.TENS. HYDR.(75YM) 03

60036003000

$52.26

18

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08
