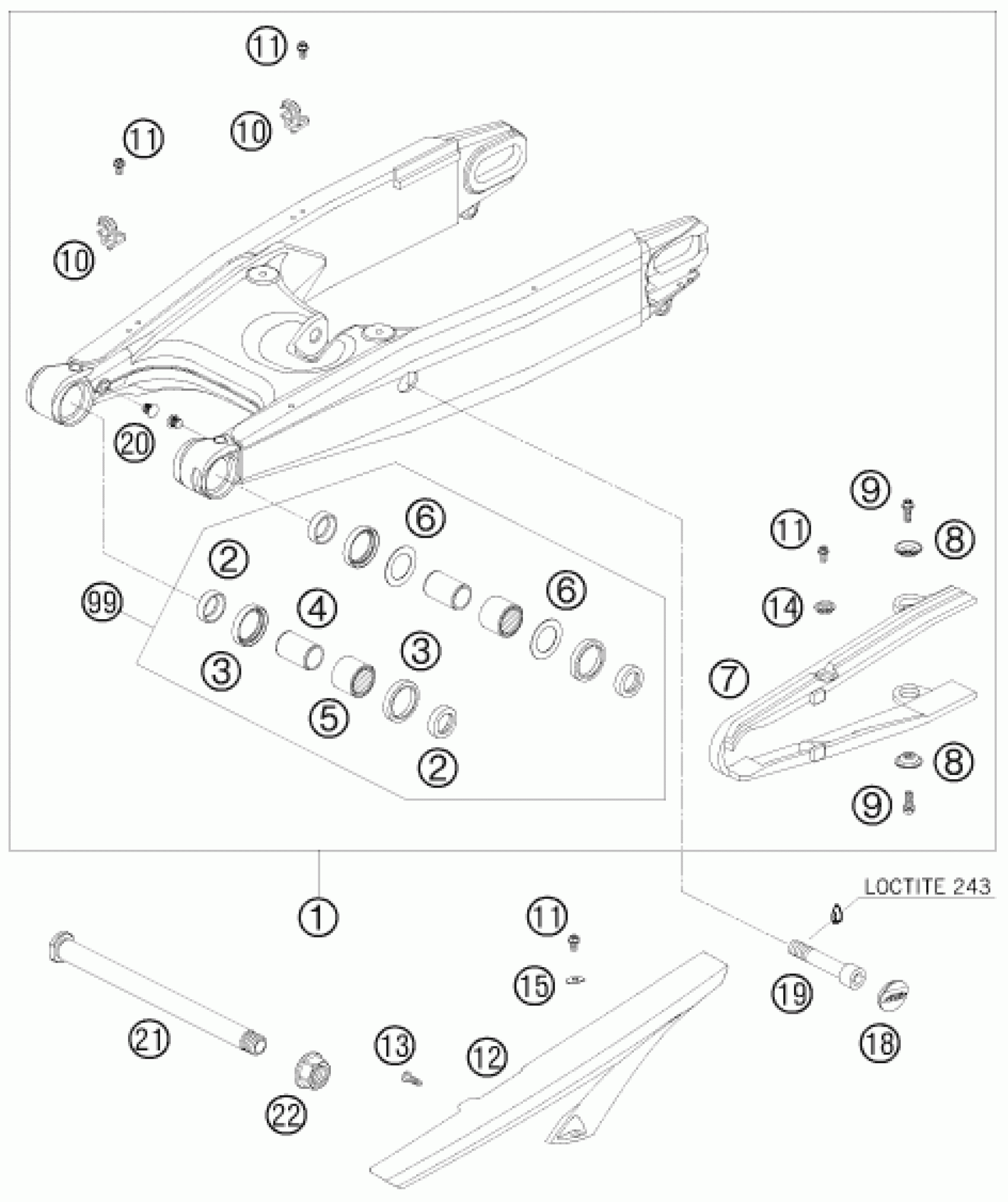

KTM 950 SUPERMOTO R 2008 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. SM-R SD-R 07

6100403004433

$1,281.10

2

Bucket f. shaft seal ring 03

60004034000

$8.03

3

Radial shaft seal 30X40X7

0760304073

$4.11

4

INNER RING JR20X25X38,5 03

60004032000

$18.13

5

NEEDLE BUSH HK2526B 03

60004031000

$10.65

6

Stop disk 03

60004033000

$2.05

7

CHAIN SLID. GUARD SWINGARM 05

60004066100

$27.48

8

BUCKET

72210079000

$3.00

9

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

$2.05

11

SPECIAL SCREW M 5,0X10

0009050103

$2.05

12

CHAINGUARD 05

61004060000

$10.00

13

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

14

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

15

WASHER CHAINGUARD 05

61004060050

$5.23

18

PLUG SWINGARM 03

60004041000

$6.72

19

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

20

PLUG SFL13

55009086000

$2.05

21

SWINGARM BOLT CPL. 05

60004037144

$56.72

22

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

99

SWINGARM REP. KIT

60004230010

$86.57
