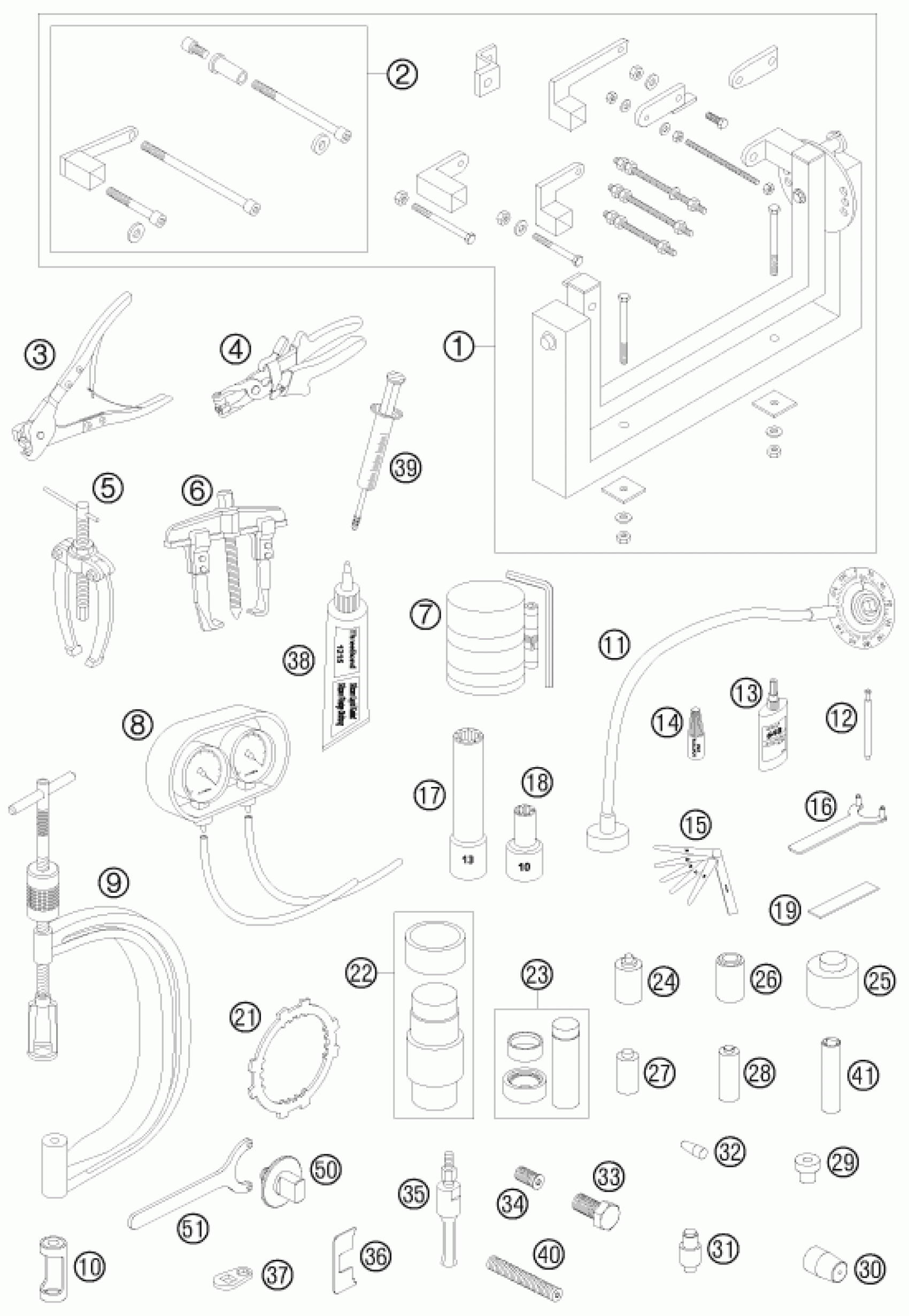

KTM 950 SUPERMOTO R 2008 Special tools (engine) Diagram

#

Description
Price

1

ASSY SUPPORT WITH ENGINEHOLDER

56012001044

Unavailable

2

ENGINE BRACKET FOR LC8 03

60029002000

Unavailable

3

PLIERS F. VAR.ONE-EAR CLAMP 03

60029057000

Unavailable

4

PLIERS F. CLAMP 03

60029057100

Unavailable

5

BUSHING EXTRACTOR

15112017000

Unavailable

6

EXTRACTOR PRIM. GEAR

60029033000

Unavailable

7

PISTON RING COMPRESSOR CPL. 03

60029015000

Unavailable

8

SYNCHRONIZER CPL. 2-CYLINDER

60029011000

Unavailable

9

VALVE SPRING LEVER

59029019000

Unavailable

10

INSERT FOR VALVE SPRING LEVER

60029041000

Unavailable

11

DEGREE DISK 360DEG - 1/2 INCH

60029010000

Unavailable

12

LIMIT PLUG GAUGE F.VALVE GUIDE

59029026006

Unavailable

13

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

14

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

15

FEELER GAUGE SET10,12,15,20,25

59029041000

Unavailable

16

HOLDER FOR WATER PUMP WHEEL

60029082000

Unavailable

17

SPECIAL SOCKET F. CYLINDER NUT

60029083000

Unavailable

18

SPECIAL SOCKET F.CYL.-HEAD NUT

60029075000

Unavailable

19

PLASTIGAUGE - MEASURING STRIP

60029012000

Unavailable

21

BRACKET FOR CLUTCH

60029003000

Unavailable

22

PRESS TOOL FOR MAIN BEARING

60029044050

Unavailable

23

PRESS TOOL F. SUPPORT BEARING

60029046028

Unavailable

24

SEAL.RING PRESS PUNCH PUSH ROD

60029043010

Unavailable

25

SEAL.RING PRESS PUNCH COUNT.SH

60029043020

Unavailable

26

SEAL.RING PRESS PUNCH WAT.PUMP

60029043040

Unavailable

27

SEAL.RING PRESS PUNCH BA.SHAFT

60029043050

Unavailable

28

PRESS PUNCH WAPU-BEARING

60029043060

Unavailable

29

PRESSURE PUNCH F. CRANKSHAFT

60029031000

Unavailable

30

MOUNT.SLEEVE F. SH. SEAL RING

60029005000

Unavailable

31

PRESS PUNCH SEAL.RING/BEARING

60029043030

Unavailable

32

MOUNT.SLEEVE F. SH.S.RING WAPU

58529005000

Unavailable

33

FLYWHEEL EXTRACTOR

60029009000

Unavailable

34

PUSH SCREW F. FLYWH. EXTRACTOR

60029009110

Unavailable

35

INTERN.BEAR.PULLER 28 MM

60029018000

Unavailable

36

SETTING GAGE F. FLOAT LEVEL

60029016000

Unavailable

37

WRENCH FOR CYLINDER-HEAD SCREW

60029081000

Unavailable

38

SILICON GASKET THREE-BOND

309098

Unavailable

39

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

40

ENGINE BLOCKING SCREW

0113080802

Unavailable

41

SPARK PLUG WRENCH 16MM 1/2INCH

60029073000

Unavailable

50

BOTTOM PART PRETENSIONING TOOL

60029050000

Unavailable

51

HOOK WRENCH PRETENS.TOOL CPL.

60029051000

Unavailable
