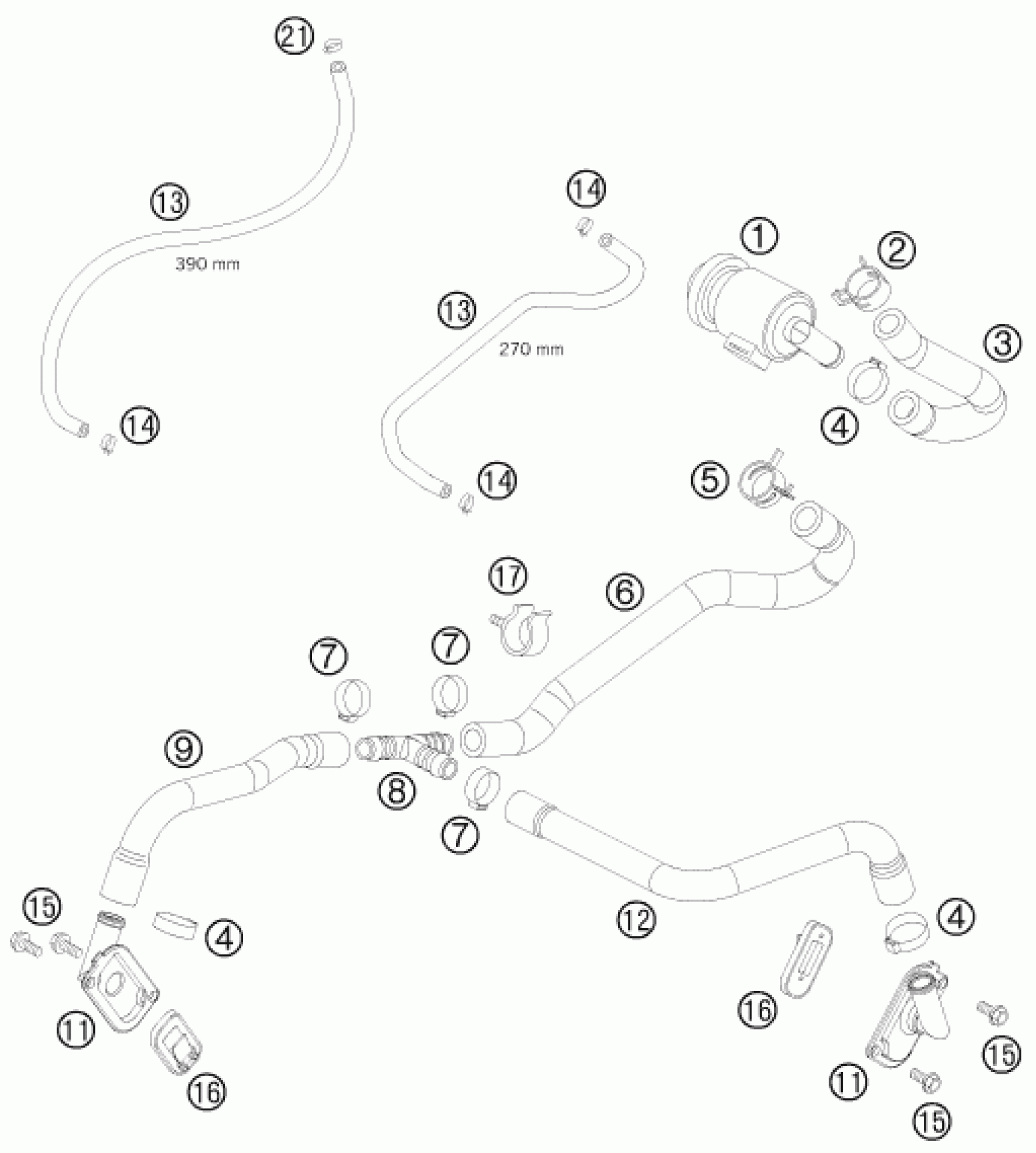

KTM 950 SUPERMOTO R 2008 SECONDARY AIR SYSTEM SAS Diagram

#

Description
Price

1

CONTROL VALVE SAS 03

60005024000

$35.59

2

CLAMP STD DN19

00049190121

$2.05

3

HOSE FOR SAS 03

60005035024

$19.07

4

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

$2.05

5

CLAMP STD DN20

00049200121

$1.49

6

HOSE FOR SAS REAR 03

60005035021

Unavailable

7

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

$3.08

8

T-CONNECTION 12MM LC4 '98

58431072000

$8.35

9

HOSE FOR SAS FRONT 03

60005035022

$17.21

11

SAS FLANGE 03

60005022000

Unavailable

12

HOSE FOR SAS LEFT 03

60005035023

$20.13

13

HOSE 3,2X8,5 PER METER

60031098001

$13.92

14

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

15

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

16

SAS Reed Valve

60005026000

$21.50

17

CLAMP FOR SAS HOSE 03

60005045000

$2.61

21

YDNAC-CLAMP FUEL HOSE (8MM)

45031005000

$1.49
