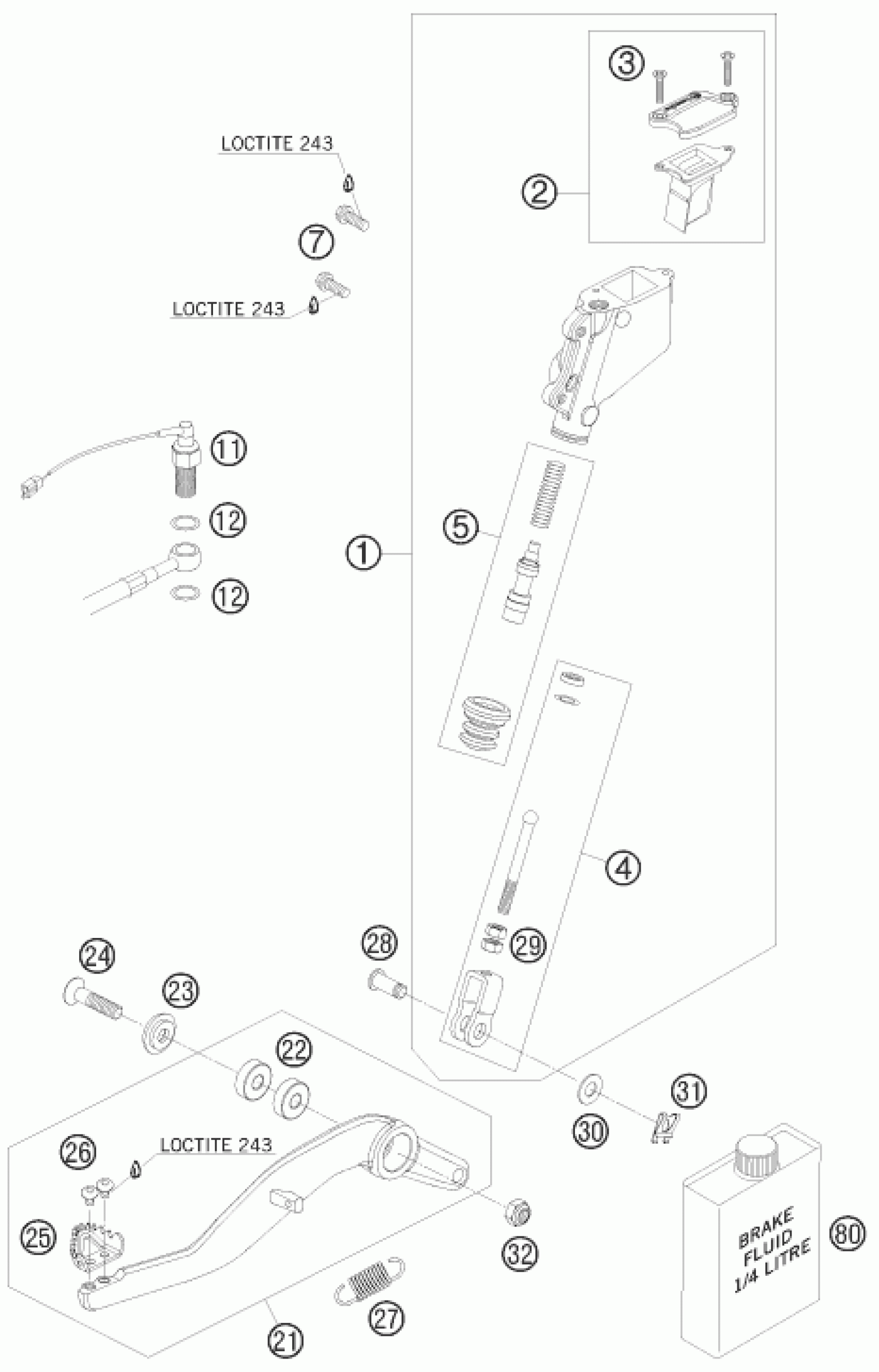

KTM 950 SUPERMOTO R 2008 REAR BRAKE CONTROL Diagram

MAIN BRAKE CYLINDER CPL. 07

60013060200

$211.40

COVER MAIN BRAKE CYLINDER CPL.

60013059100

$41.04

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

$1.49

PUSH ROD CPL. '03

60013056044

$28.79

REPAIR KIT PISTON 03

60013061000

$50.11

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

sealing ring DIN 7603 10x14x1

0603100141

$2.05

FOOT BRAKE LEVER CPL. 07

6251305004401S

$98.30

Grooved ball bearing 608 2RS C

0625006087

$21.40

SPECIAL WASHER ALU 8X24MM 03

60003061000

$6.44

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

STEP PLATE FOR BRAKE LEVER

54813051100

$8.79

SCREW TORX M5X10 05

58605083010

$2.05

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

BOLT F. LINK FORK 8X20X16,5

60013057000

$4.11

Hex. nut DIN 934 M6

0934060003

$1.49

washer DIN 125 A -8.4

0125080003

$1.49

SECURING CLIP D=8MM 03

60013058000

$2.05

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

Brake fluid DOT5.1 0,25L

00062030000

$12.52
