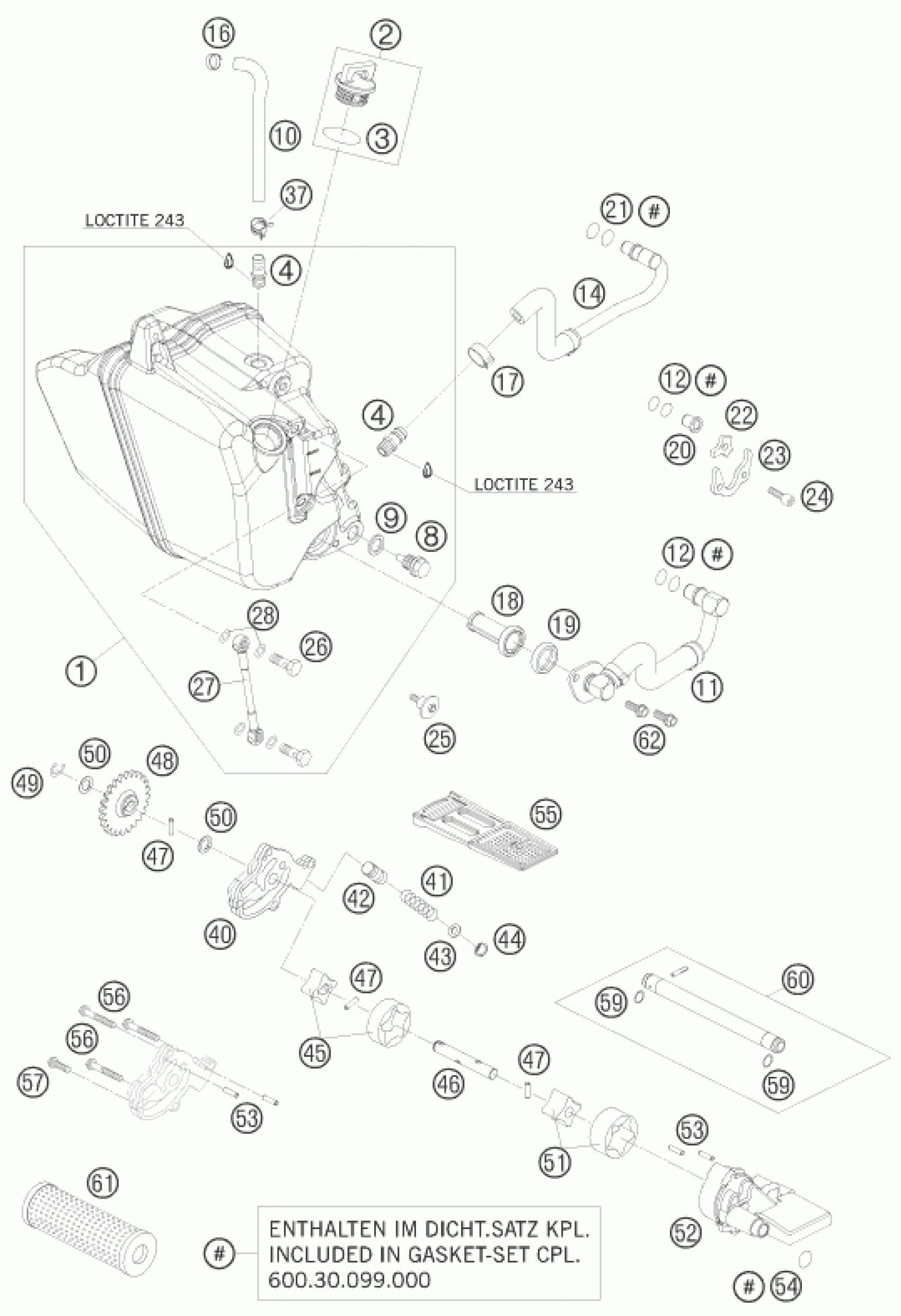

KTM 950 SUPERMOTO R 2008 LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL TANK CPL. 05

62538081033

Unavailable

2

oil plug cpl. M24x3

58030020100

Unavailable

3

O-RING 19,00X3,00 NBR

0770191015

Unavailable

4

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

8

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

9

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

10

PREFORMED HOSE 9X15 05

62538034030

Unavailable

11

SUCTION PIPE 05

62538060000

Unavailable

12

O-RING 9X2 VITON

0770090021

Unavailable

14

RETURN OIL PIPE 06

62538061000

Unavailable

16

VARIABLE ONE-EAR CLAMP 17,0MM

00050170706

Unavailable

17

VARIABLE ONE-EAR CLAMP 18,5MM

00050185706

Unavailable

18

OIL SCREEN FINISHED 03

60038017000

Unavailable

19

GASKET FOR OIL FILTER HNBR 03

60038018000

Unavailable

20

PLUG 10MM LC8 03

60038024000

Unavailable

21

O-RING 11X2 VITON

0770110021

Unavailable

22

RETAINING PLATE 2 LC8 03

60038037000

Unavailable

23

RETAINING PLATE 1 LC8 03

60038036000

Unavailable

24

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

25

Special screw M6x24 WS=8

60038083000

Unavailable

26

BANJO BOLT M8X1

58038029000

Unavailable

53

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

54

O-RING 13,3X2,4 VITON

0770133024

Unavailable

55

OIL SCREEN 03

60038016000

Unavailable

27

OIL RISING PIPE CPL. 05

61038084000

Unavailable

28

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

37

CLAMP STD DN16

00049160121

Unavailable

40

PRESSURE PUMP CASE 03

60038010000

Unavailable

41

CONTROL SPRING LC8 3,5 BAR

60038026000

Unavailable

42

CONTROL PISTON LC8 03

60038028000

Unavailable

43

WASHER 6X12X1 HRC 40-45

0988060121

Unavailable

44

CIRCLIP DIN0472 J12

0472012010

Unavailable

45

ROTOR-SET PRESSURE PUMP 03

60038011000

Unavailable

46

OIL PUMP SHAFT 03

60038002000

Unavailable

47

needle roller NRB 4x15.8 G2

0402041580

Unavailable

48

OIL PUMP GEAR 24-T

60038001124

Unavailable

49

retaining washer DIN 6799 - 8

0799080000

Unavailable

50

washer 10x16x0.5

60038007010

Unavailable

51

ROTOR-SET 19MM 03

60038009000

Unavailable

52

SUCTION PUMP CASE 03

60038008000

Unavailable

56

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

57

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

59

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

60

OIL INJECTION TUBE GEAR 05

60030065100

Unavailable

61

OIL FILTER 03

60038015000

Unavailable

62

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable
