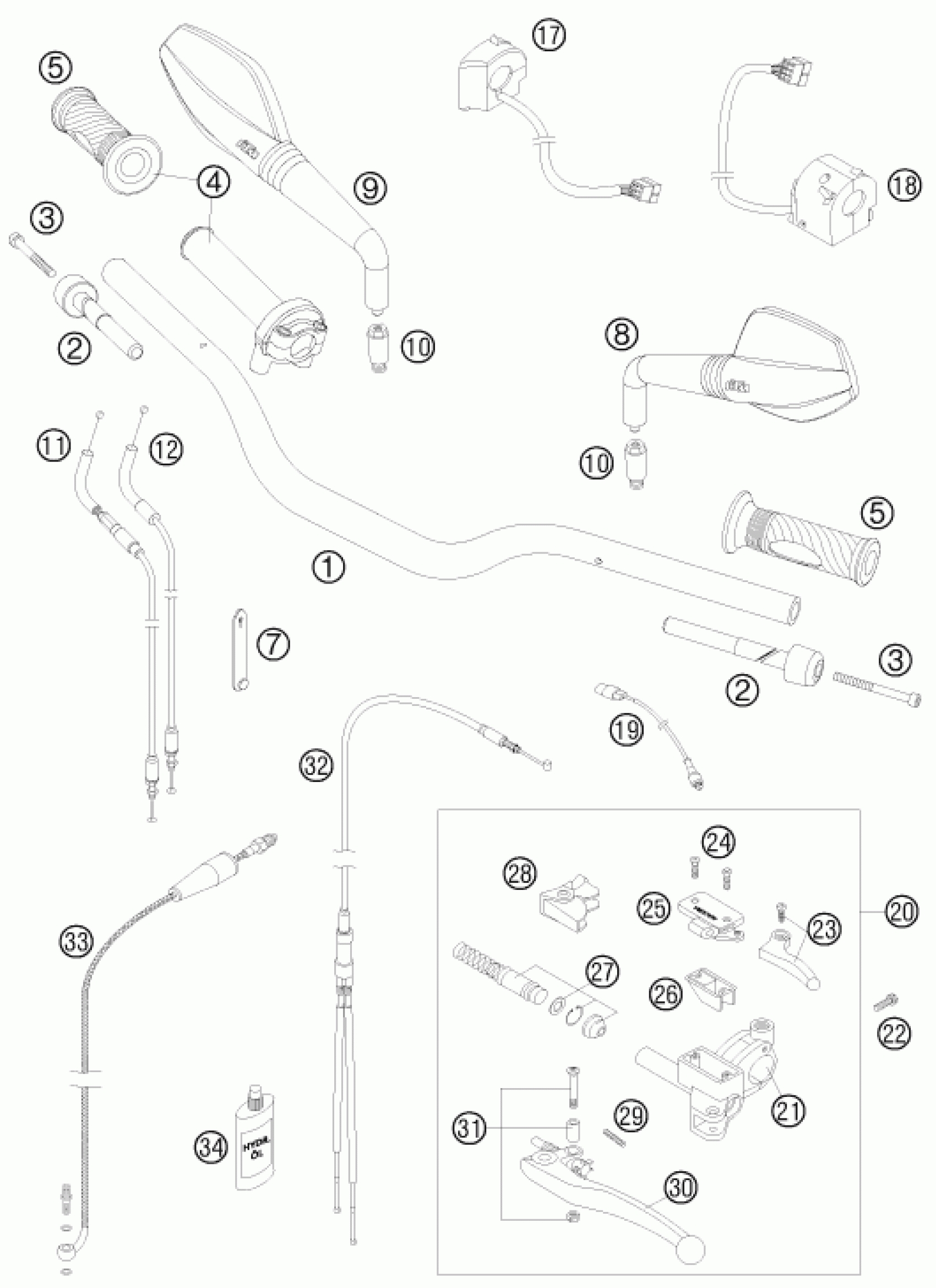

KTM 950 SUPERMOTO R 2008 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR ALU 05

62502001000

Unavailable

10

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

11

THROTTLE CABLE OPEN 05

62502091000

Unavailable

12

THROTTLE CABLE CLOSE 05

62502092000

Unavailable

2

handlebar weight

61002004000

Unavailable

3

SHCS DIN 912 M6x65

0912060653

Unavailable

4

THROTTLE GRIP 05

61002010000

Unavailable

5

GRIPP SET

61002021000

Unavailable

7

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

8

REVIEW MIRROR L/S 07

61112040000

Unavailable

9

REVIEW MIRROR R/S 07

61112041000

Unavailable

17

START-STOP SWITCH AD 03

58411074300

Unavailable

18

LIGHT SWITCH 05

61011070000

Unavailable

19

CLUTCH SWITCH 03

58411049100

Unavailable

20

MASTER CYLINDER MAGURA D=10.5

60002030000

Unavailable

21

CLAMP MIRROR WITH CLAMP

60002044000

Unavailable

22

HH collar screw M6x20 TX30

0025060206

Unavailable

23

CHOKE LEVER CPL. LC8 2003

60036050000

Unavailable

24

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

25

COVER HYD.CLUTCH WITH CHOKE 03

60002033000

Unavailable

26

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

27

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

28

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

29

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

30

CLUTCH LEVER LONG CPL. 2003

60002031000

Unavailable

31

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

32

CHOKE CABLE LC8 ADVENTURE 03

60002095000

Unavailable

33

CLUTCH PIPE LC8 ADV '03

60032063100

Unavailable

34

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable
