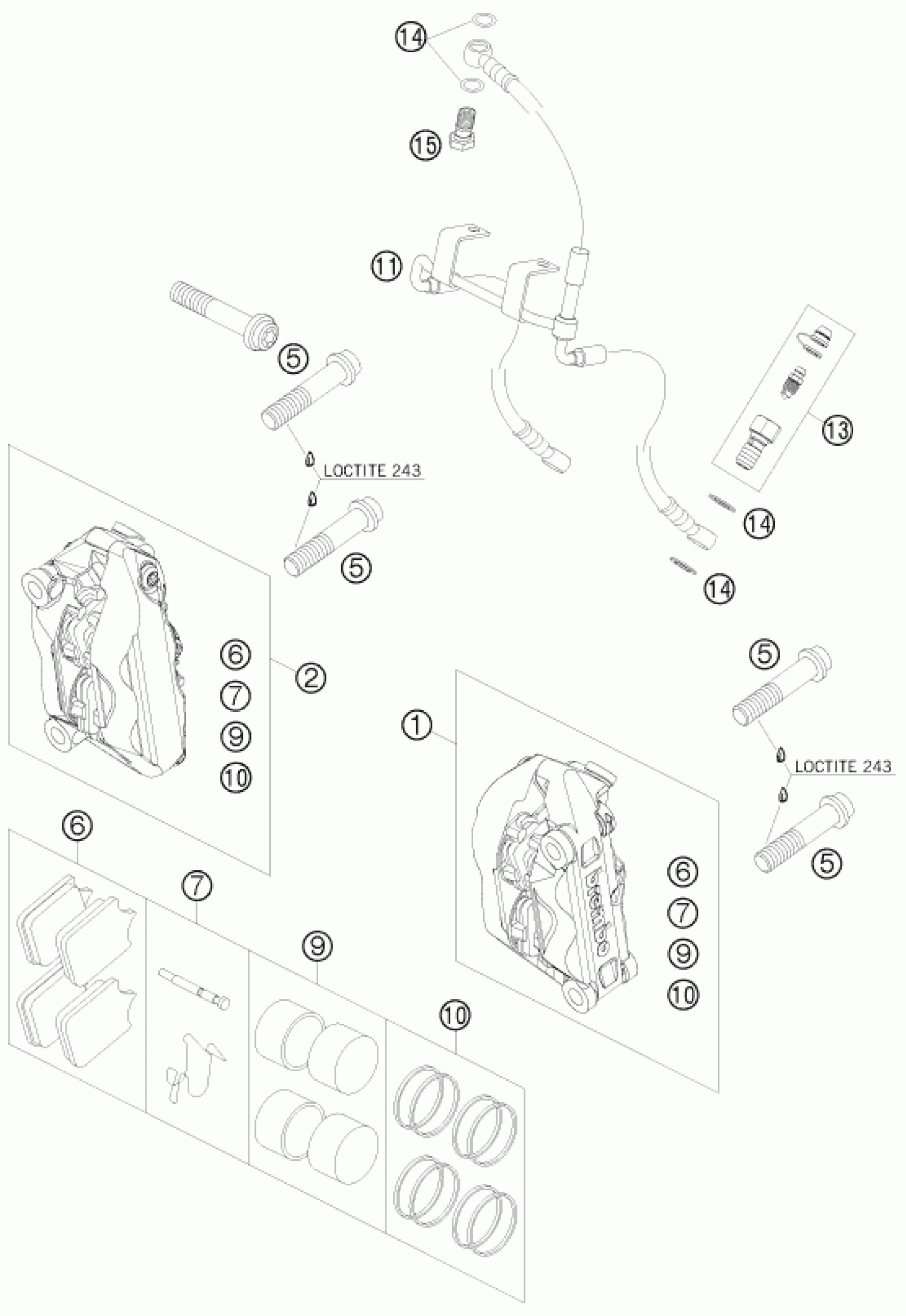

KTM 950 SUPERMOTO R 2008 FRONT BRAKE CALIPER Diagram

#

Description

Price

5

AH-COLLAR SCREW M10X1,25X55

0035100559

$3.08

1

BRAKE CALIPER FRONT L/S 07

6251301510030

Unavailable

2

BRAKE CALIPER FRONT R/S. 07

6251301610030

Unavailable

6

BRAKE PAD FR. TOSHIBA TT2172HH

61013030000

$77.41

7

PINS + SPRINGS F. BRAKECALIPER

61013018000

$30.38

9

BRAKE PISTONS 4X

61013019000

$79.00

10

REP.KIT SEALING RINGS 4X

61013019100

$33.65

11

BRAKE HOSE FRONT CPL. 07

6251301200030

$164.88

13

BLEEDER SCREW CPL. 05

62513020000

$27.48

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

HOLLOW SCREW M10X1X19

50213025000

$6.54
