EXHAUST SYSTEM

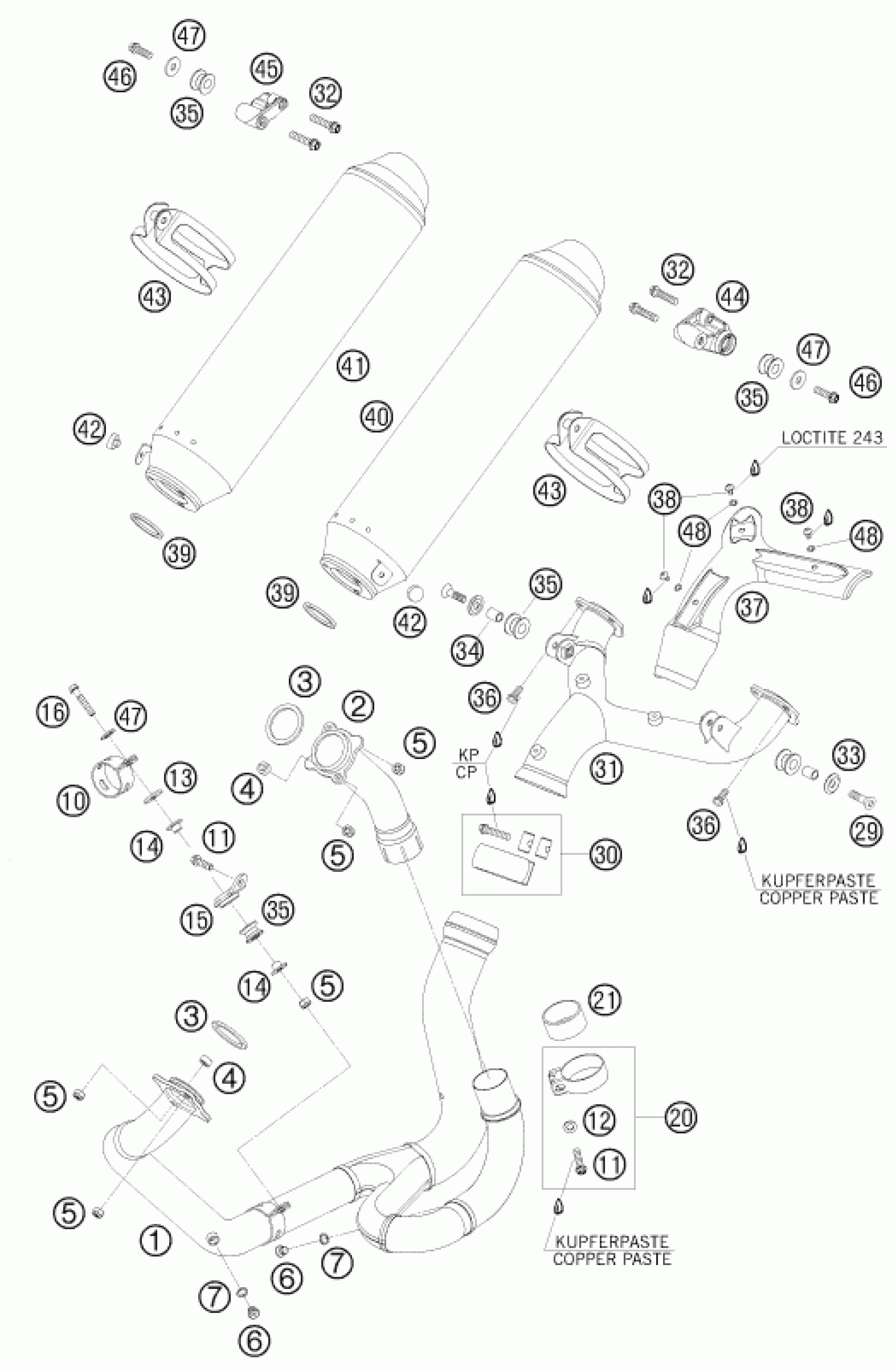

KTM 950 SUPERMOTO R 2008 EXHAUST SYSTEM Diagram
#
30
EXHAUST CLAMP CPL. 05
61005052000
Unavailable
31
DISTRIBUTOR TUBE 05
62505048100
Unavailable
32
HH collar screw M8x30
0025080306
Unavailable
33
SPECIAL WASHER ALU 8X24 MM ELO
58303061100
Unavailable
34
SPACER BUSH. 8,5X12X18MM 05
62505069000
Unavailable
35
damp. component silicone grey
54305068100
Unavailable
36
HH COLLAR SCREW M8X16 TX40
0025080166
Unavailable
37
THERMAL SHIELD 05
62505047000
Unavailable
38
SCREW TORX M5X10 05
58605083010
Unavailable
39
EXHAUST GASKET 03
60005005002
Unavailable
40
SILENCER L/S 08
62605082000
Unavailable
41
SILENCER R/S 08
62605083000
Unavailable
42
RUBBER BUFFER
54308042000
Unavailable
43
CLAMP FOR SILENCER CPL. 03
60005095000
Unavailable
44
SILENCER/HANDLE HOLDER L/S 07
6000508500001S
Unavailable
45
SILENCER/HANDLE HOLDER R/S 07
6000508600001S
Unavailable
46
HH collar screw M8x25
0025080256
Unavailable
47
WASHER DIN9021-A 8,4
0021080003
Unavailable
48
TOOTH LOCK WASHER DIN6797-J
0797050000
Unavailable
1
EXHAUST PIPE FRONT 05
62505007100
Unavailable
2
EXHAUST PIPE REAR 05
62505008000
Unavailable
3
GASKET 03
60005005000
Unavailable
4
SPACER BUSH. 8,5X15X7,5 05
61005009000
Unavailable
5
self-locking nut M8 Cu
51010086100
Unavailable
6
PLUG DIN0908-M10X1 A2
0908100000
Unavailable
7
sealing ring DIN 7603 10x14x1
0603100141
Unavailable
10
CLAMP EXHAUST PIPE 05
61005007049
Unavailable
11
HH collar screw M8x35 TX40
0025080356
Unavailable
12
washer DIN 125 A -8.4
0125080003
Unavailable
13
INSOLATE WASHER 8,5X28X3
51005067000
Unavailable
14
collar bushing 8.5x12x23.5x10
58405050065
Unavailable
15
EXHAUST PIPE BRACKET FRONT 07
62505015150
Unavailable
16
HH COLLAR SCREW M8X40 TX40
0025080406
Unavailable
20
CLAMP CPL. D=53,2MM 05
61005051100
Unavailable
21
Graphite ring 45X50X25
58405005001
Unavailable
29
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
Unavailable
