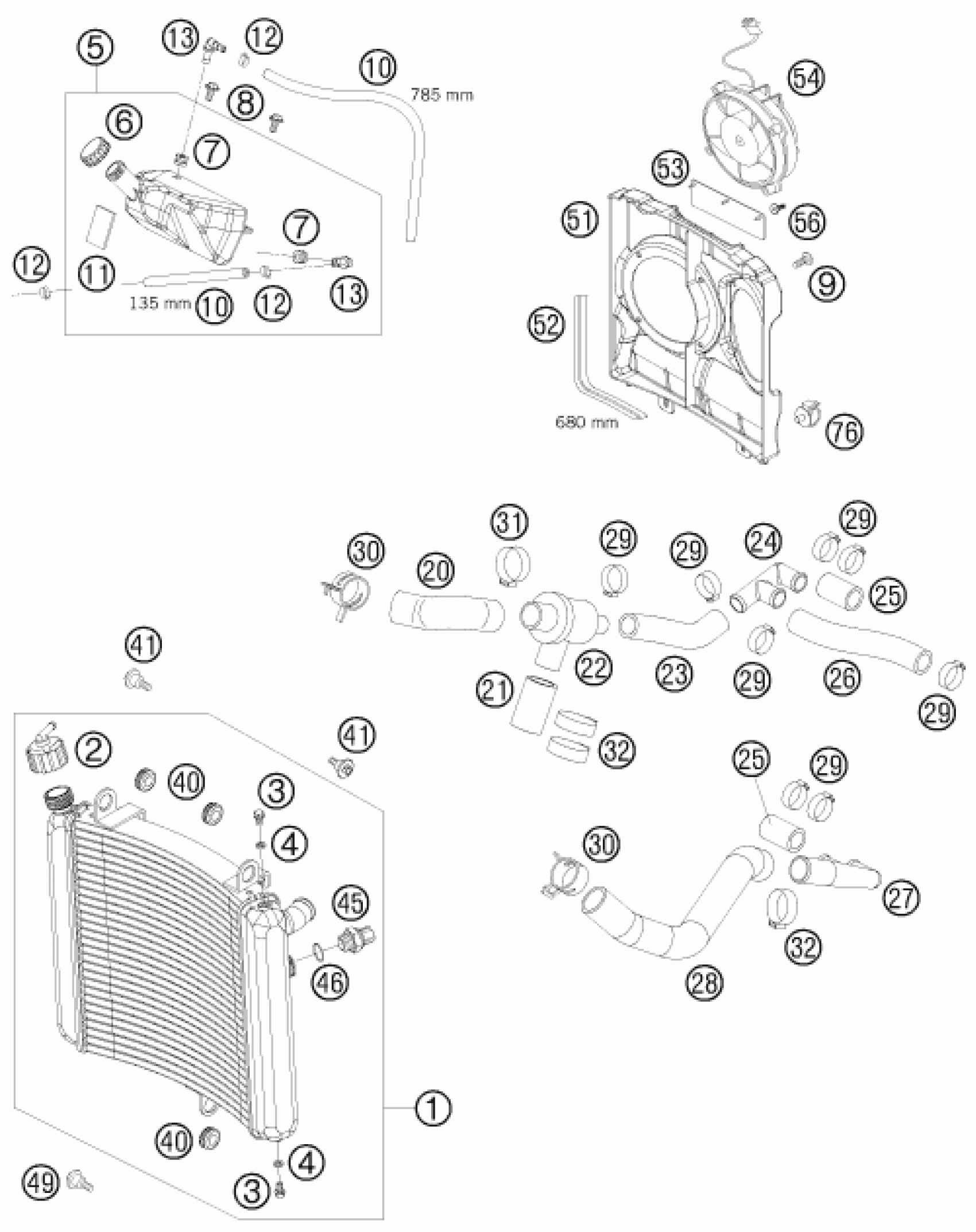

KTM 950 SUPERMOTO R 2008 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR ''45544E''

63035110000

$445.80

2

RADIATOR CAP 1,4 BAR

62535009000

$25.42

3

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

4

ALU-GASKET 6X10X1.5

60035048000

$3.08

5

WATER EXPANSION TANK CPL. 06

63035065000

$44.12

6

PLUG F. EXPANSION TANK

60035066000

$6.72

7

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

8

COLLAR SCREW M6X12 TX

0023060123

$2.05

9

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

FOAM 40x25x3 MM 06

63035065010

Unavailable

12

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

13

Angle piece, reservoir

60035068000

$3.08

20

RADIATOR HOSE THERM./DISTR. 05

63035031000

$12.33

21

RADIATOR HOSE THERM./PUMP 03

60035030000

$11.96

22

THERMOSTAT 75° CPL. W. CASE 03

60035017000

$62.64

23

RADIATOR HOSE THERM./DISTR. 05

62535025000

$9.34

24

DISTRIBUTOR R/S 18/18/18MM 03

60035019000

$5.10

25

RADIATOR HOSE CYL./DISTR. 03

60035026000

$10.46

26

RADIATOR HOSE DISTR./DISTR. 03

60035027000

$18.41

27

DISTRIBUTOR L/S 18/18/25MM 03

60035028000

$12.99

28

RADIATOR HOSE 05

62535024000

$22.19

29

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

$3.08

30

CLAMP STD DN32

00049320121

$4.11

31

VARIABLE ONE-EAR CLAMP 34,6MM

00050346706

$4.11

32

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

45

THERMOSWITCH LC8 102DG '03

60035045000

$40.48

46

O-ring 17X1.5

0770017015

$1.49

49

Special screw M6x24 WS=8

60038083000

$3.08

51

FAN COWL 05

62535044000

$23.07

52

EDGE PROTECTOR PER METER

58312085100

Unavailable

53

FAN CLACK RUBBER 08

62635044050

$8.03

54

FAN CPL. 12V LC4 2000

58435041000

$137.53

56

EJOT PT SCREW K50X16 1451

0081050161

$1.49

76

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11
