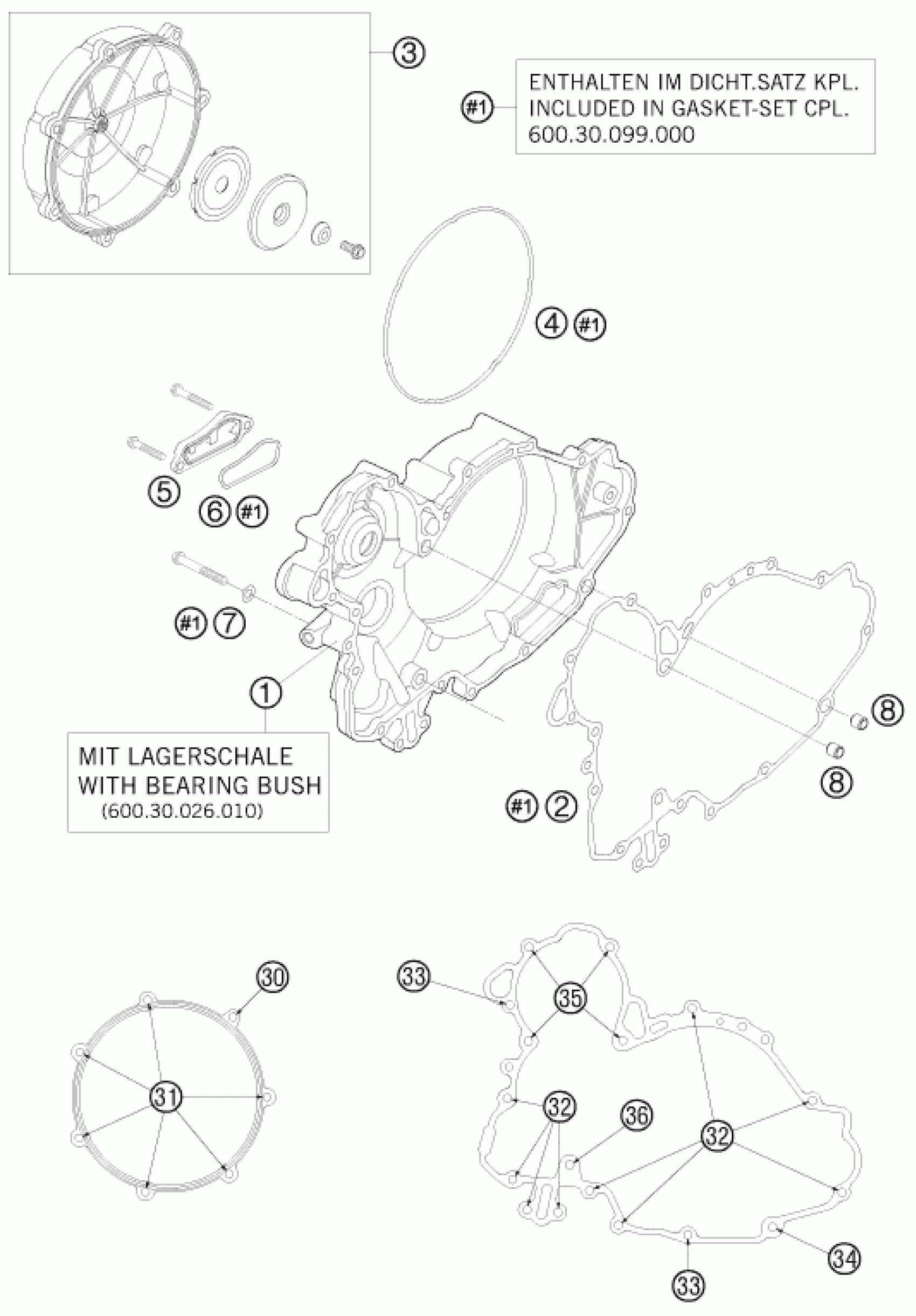

KTM 950 SUPERMOTO R 2008 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER LC8 CPL. 08

60030001144

Unavailable

2

CLUT.COV. GASK. INSIDE KLI.SIL

60030025000

Unavailable

3

OUTER CLUTCH COVER CPL. 06

60030126144

Unavailable

4

GASKET RING CLUTCH 2X3,1 VAMAC

60030027000

Unavailable

5

CLOS. COVER OIL SCR. MILLED 03

60030012100

Unavailable

6

MOLDED RING 1,8X2,5 VAMAC 03

60030012050

Unavailable

7

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

8

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

30

HH COLLAR SCREW M 6X85 WS=8

0015060853

Unavailable

31

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

32

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

33

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

34

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

35

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable

36

HH COLLAR SCREW M 8X60 WS=10

0015080603

Unavailable
