Description

Price

2

COVER POSITIVE POLE 06

62511059160

$4.35

9

CLAMP D=6/8MM, BLACK

55011022100

$2.05

1

BATTERY 12V/11AH 03

60011053000

$366.89

3

BATTERY COVER 96

58411053050

$22.65

4

RUBBER L=145MM

50303018000

$6.44

5

STARTER CABLE L=650MM 05

62511059000

$10.62

6

BATTERY CABLE L=125MM 05

62511059050

$12.05

7

GROUND CABLE L=650MM 05

62511097000

$9.79

8

Rubber grommet, starter port 0

60040009000

$3.08

10

Starter reley 12V 99

58211058000

$72.64

11

Plug-in fuse, big 30A

58011109130

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

13

BRACKET START RELAY 05

62511058050

$8.71

14

SCREW FOR PLASTIC 50X12

0016050121

$2.05

15

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

16

Hex. nut DIN 934 M6

0934060003

$1.49

20

VOLTAGE REGULATOR

62511034100

$163.80

21

BRACKET VOLTAGE REGULATOR 05

62511037000

$17.74

22

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

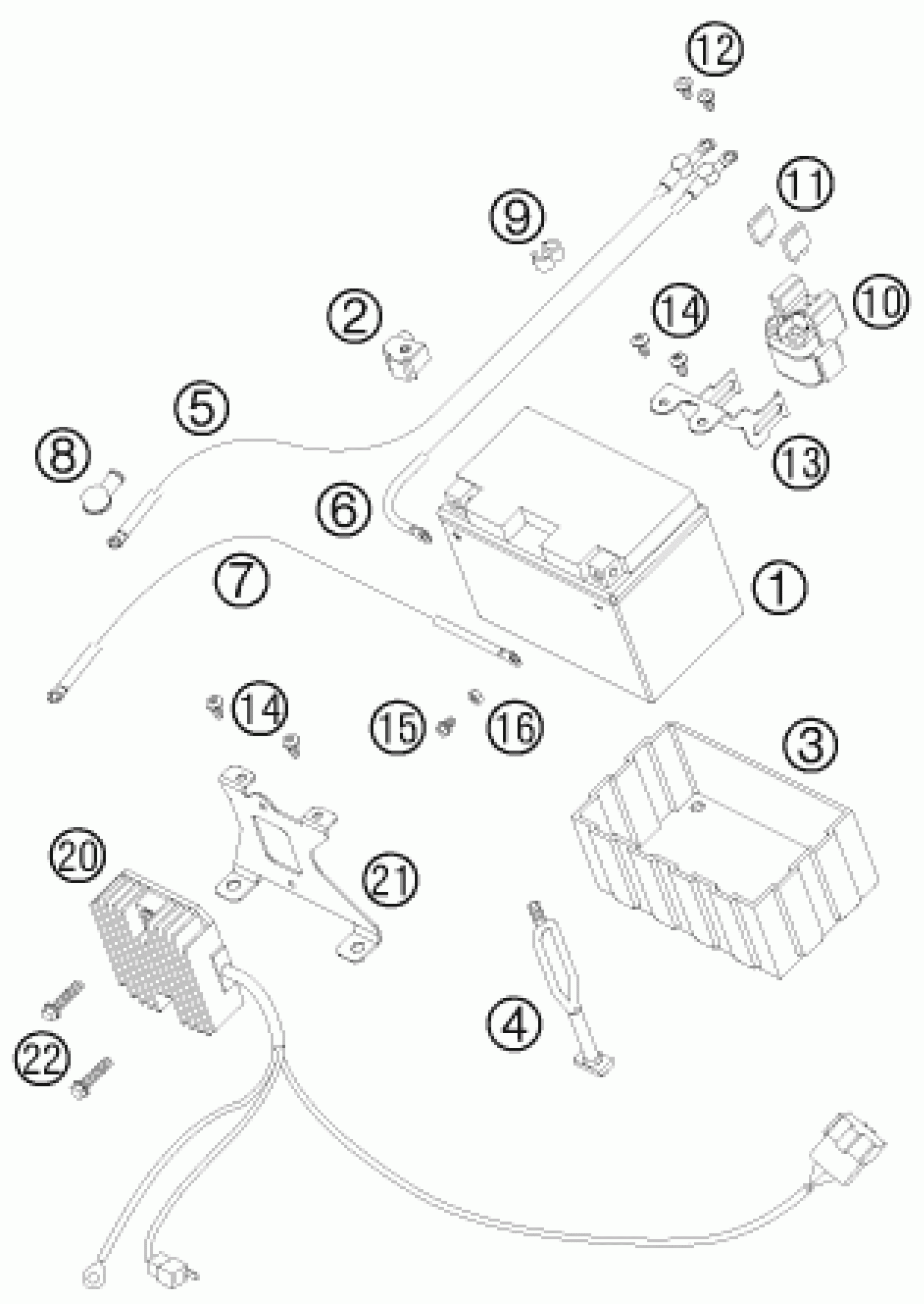

KTM 950 SUPERMOTO R 2008 BATTERY Diagram

COVER POSITIVE POLE 06

CLAMP D=6/8MM, BLACK

BATTERY 12V/11AH 03

BATTERY COVER 96

RUBBER L=145MM

STARTER CABLE L=650MM 05

BATTERY CABLE L=125MM 05

GROUND CABLE L=650MM 05

Rubber grommet, starter port 0

Starter reley 12V 99

Plug-in fuse, big 30A

Oval head screw ISO 7380 M 6X8

BRACKET START RELAY 05

SCREW FOR PLASTIC 50X12

HH COLLAR SCREW M6X10 TX30

Hex. nut DIN 934 M6

VOLTAGE REGULATOR

BRACKET VOLTAGE REGULATOR 05

HH COLLAR SCREW M6X25 TX30
