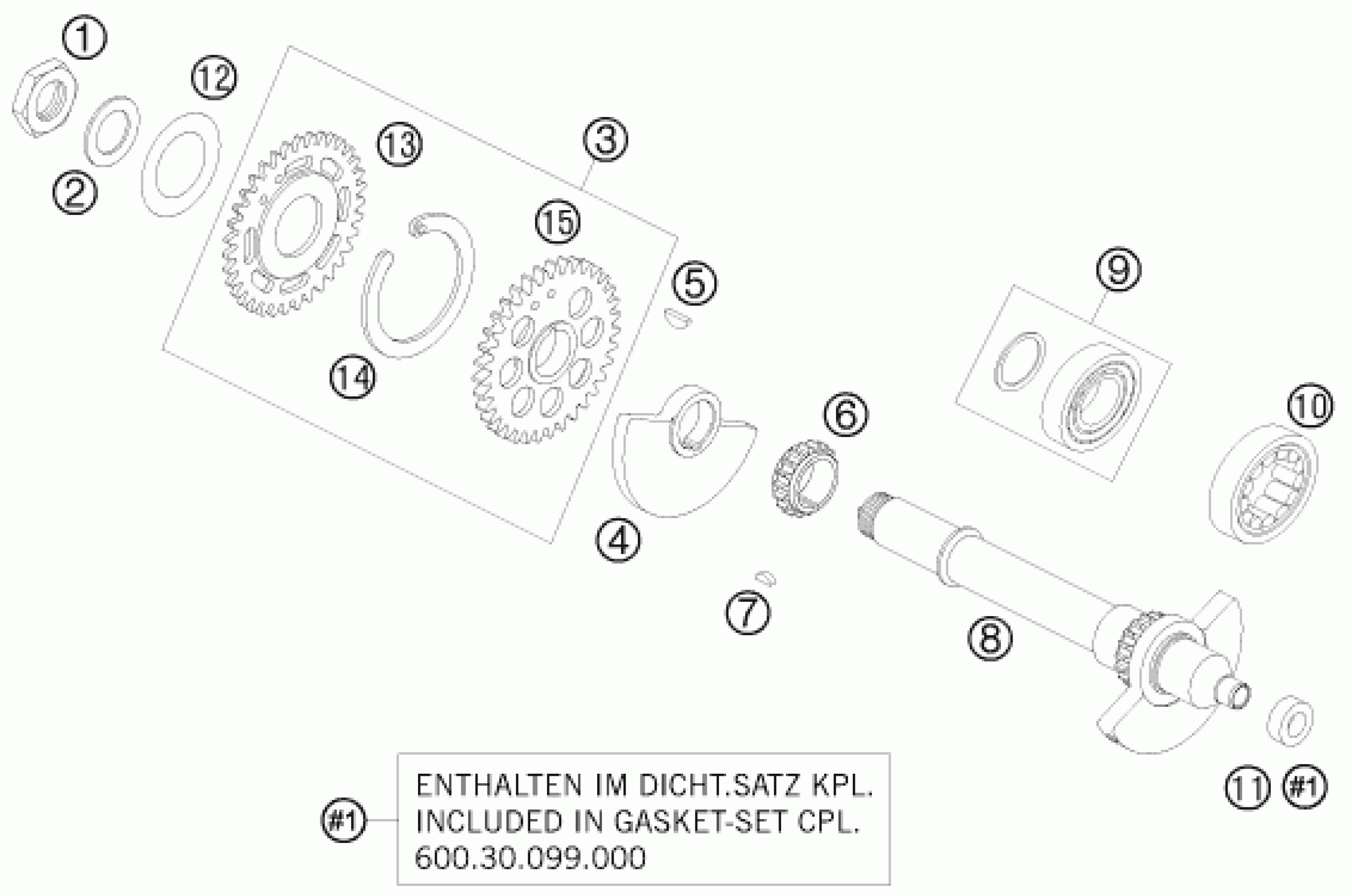

KTM 950 SUPERMOTO R 2008 BALANCER SHAFT Diagram

#

Description
Price

1

hex nut M20x1,. H=6mm

60036073150

Unavailable

2

STOP DISK 20,2 X 34 X 1

60033043000

Unavailable

3

SPREAD TRANSMISSION 05

60036081000

Unavailable

4

BALANCER WEIGHT R/S 05

60036074150

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

6

TIMING GEAR 18-T 03

60036014018

Unavailable

7

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

8

TIMING VALVE JACKSHAFT CPL.

60036073100

Unavailable

9

CYL. ROLLER BEAR. NUP 204E

60030024100

Unavailable

10

CYL.ROLLER BEARING 26,5X47X14

60030021000

Unavailable

11

SHAFT SEAL RING 12X20X5 B

0760122050

Unavailable

12

SPRING WASH. 30,5X46,5X0,6-1,5

0093463006

Unavailable

13

CLAMPING WHEEL 35-Z 05

60036083035

Unavailable

14

TENSION SPRING 05

60036081050

Unavailable

15

DRIVE WHEEL 35-T 05

60036082035

Unavailable
