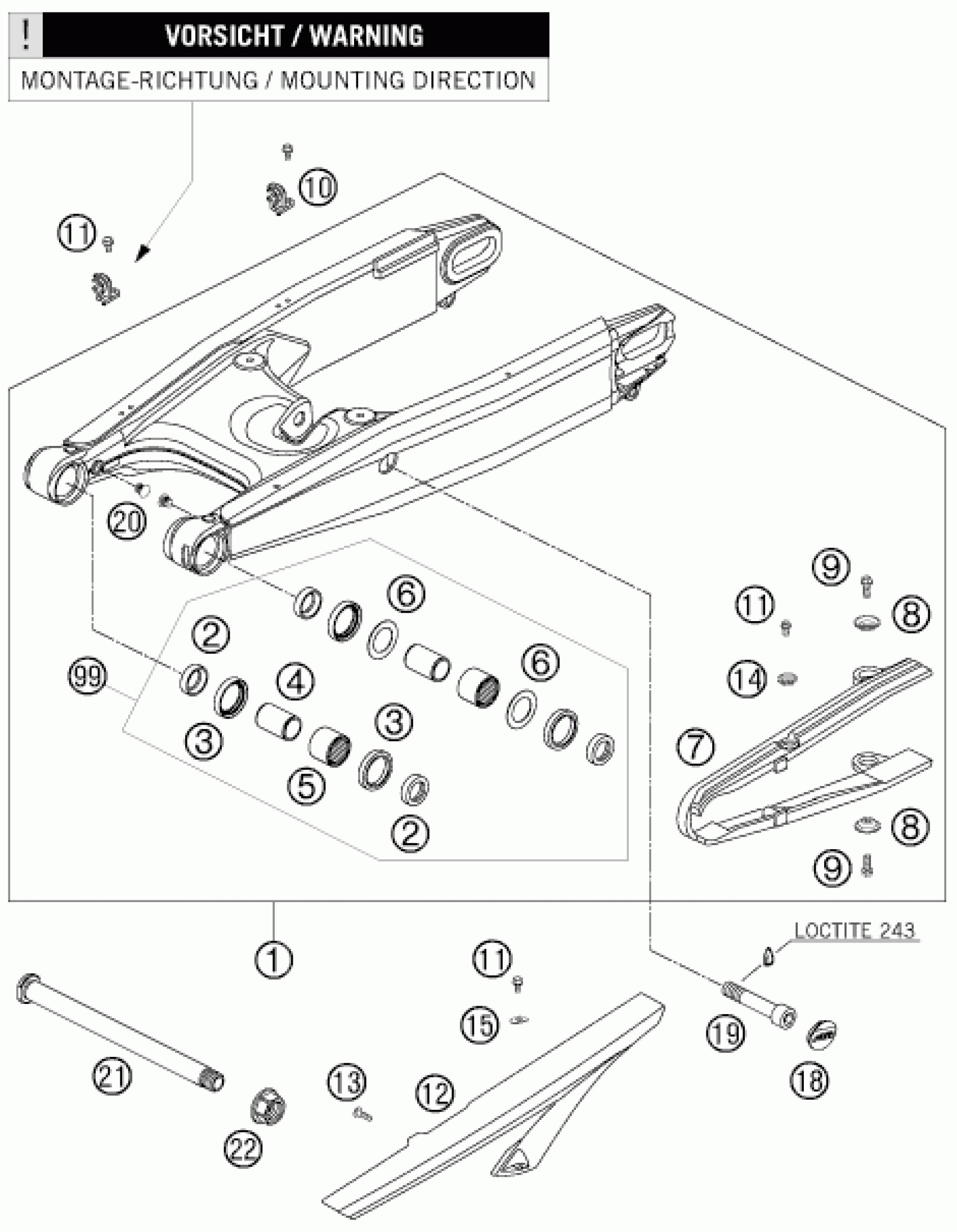

KTM 950 SUPERMOTO R 2007 SWING ARM Diagram

#

Description
Price

7

CHAIN SLID. GUARD SWINGARM 05

60004066100

Unavailable

8

BUCKET

72210079000

Unavailable

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

Unavailable

11

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

12

CHAINGUARD 05

61004060000

Unavailable

13

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

14

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

15

WASHER CHAINGUARD 05

61004060050

Unavailable

18

PLUG SWINGARM 03

60004041000

Unavailable

19

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

20

PLUG SFL13

55009086000

Unavailable

21

SWINGARM BOLT CPL. 05

60004037144

Unavailable

22

COLLAR NUT M19X1,5 WS=27MM

60004038000

Unavailable

1

SWING ARM CPL. SM-R SD-R 07

6100403004433

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

Unavailable

3

Radial shaft seal 30X40X7

0760304073

Unavailable

4

INNER RING JR20X25X38,5 03

60004032000

Unavailable

5

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

6

Stop disk 03

60004033000

Unavailable

99

SWINGARM REP. KIT

60004230010

Unavailable
