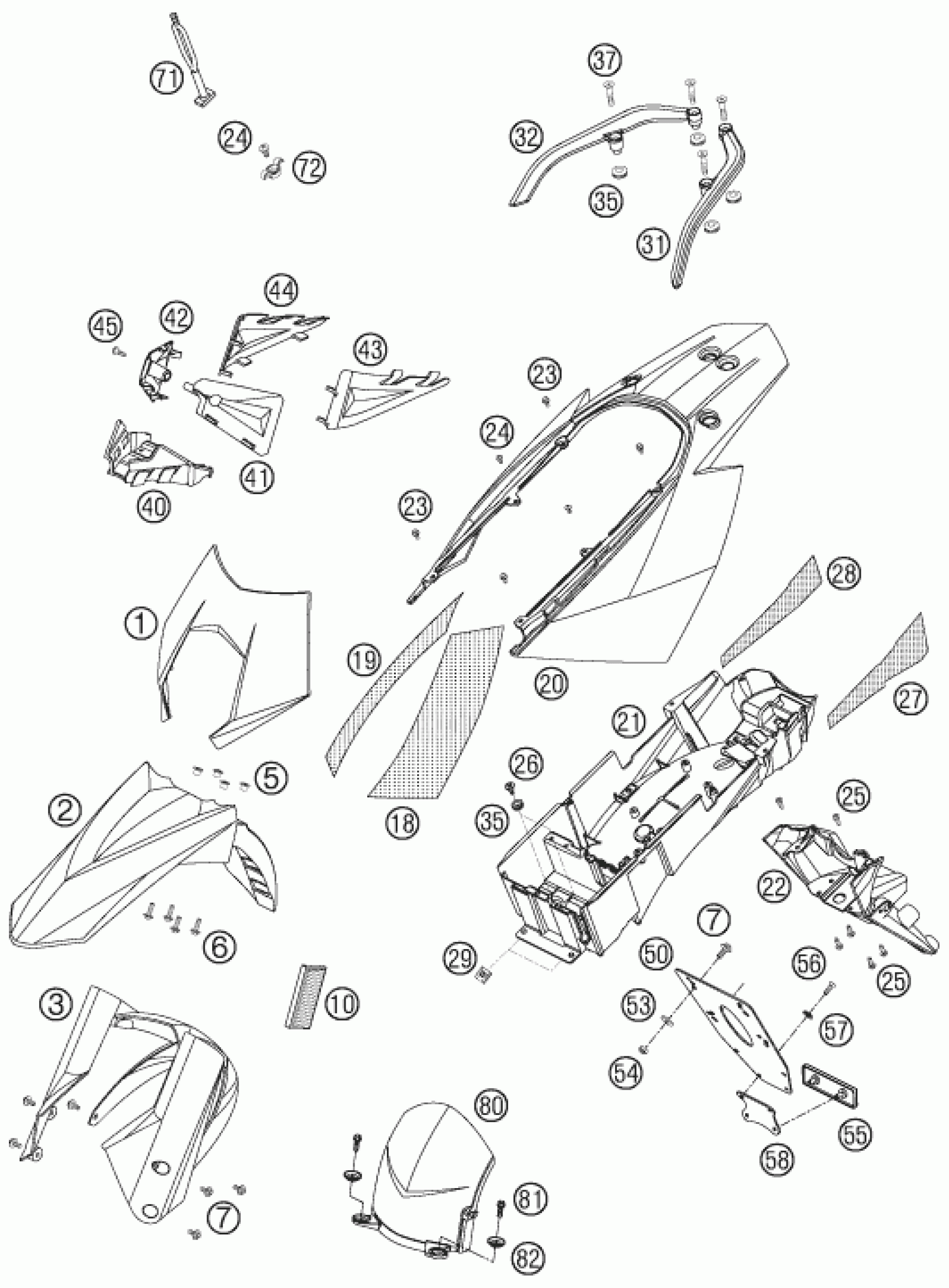

KTM 950 SUPERMOTO R 2007 MASK, FENDERS Diagram

#

Description
Price

3

SPLASH PROTECT. 05

62501094000

Unavailable

1

HEADLIGHT MASK BLACK MATT 07

5860800100033A

Unavailable

2

FENDER FRONT BLACK MATT 07

6250801000033A

Unavailable

5

COLLAR BUSHING 7,2X10X15X8,5

62508009000

Unavailable

6

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

18

THERM. PROT.FOIL L/S ABOVE 07

62508018150

Unavailable

19

THERM.PROT.FOIL R/S ABOVE 07

62508018160

Unavailable

20

REAR END TOP PART BLACK MA. 07

6250801800033A

Unavailable

21

REAR END LOWER PART 06

62508019200

Unavailable

22

NUMB.PLATE CARRIER 05

62508015000

Unavailable

23

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

24

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

25

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

27

THERMAL PROTECTON FOIL L/S 07

62508019250

Unavailable

28

THERMAL PROTECTON FOIL R/S 07

62508019360

Unavailable

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

31

HAND GRIP L/S 07

6301200800033S

Unavailable

32

HAND GRIP R/S 07

6301200900033S

Unavailable

35

RUBBER SLEEVE D=12MM

41001052000

Unavailable

37

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

Unavailable

40

SPLASH PROTECTOR FRAME 05

60003087000

Unavailable

41

COVER FRAME L/S FRONT 05

62503085000

Unavailable

42

COVER FRAME R/S FRONT 05

62503086000

Unavailable

43

COVER FRAME L/S REAR 05

62503083000

Unavailable

44

COVER FRAME R/S REAR 05

62503084000

Unavailable

45

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

50

license plate mouning plate

60012081200

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

55

REFLECTOR RED

58412080000

Unavailable

57

WASHER 6MM

40006006000

Unavailable

58

BRACKET FOR REFLECTOR

58412080050

Unavailable

59

WASHER DIN0125-A 5,3

0125050003

Unavailable

60

Self locking nut DIN 985 M5

0985050003

Unavailable

71

RUBBER L=145MM

50303018000

Unavailable

72

SUPPORT TOOL SET 05

62508021000

Unavailable

80

SPLASH PROTECT. 05

61008014000

Unavailable

81

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

82

BUCKET

72210079000

Unavailable

26

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

29

clip nut M6

54603048100

Unavailable
