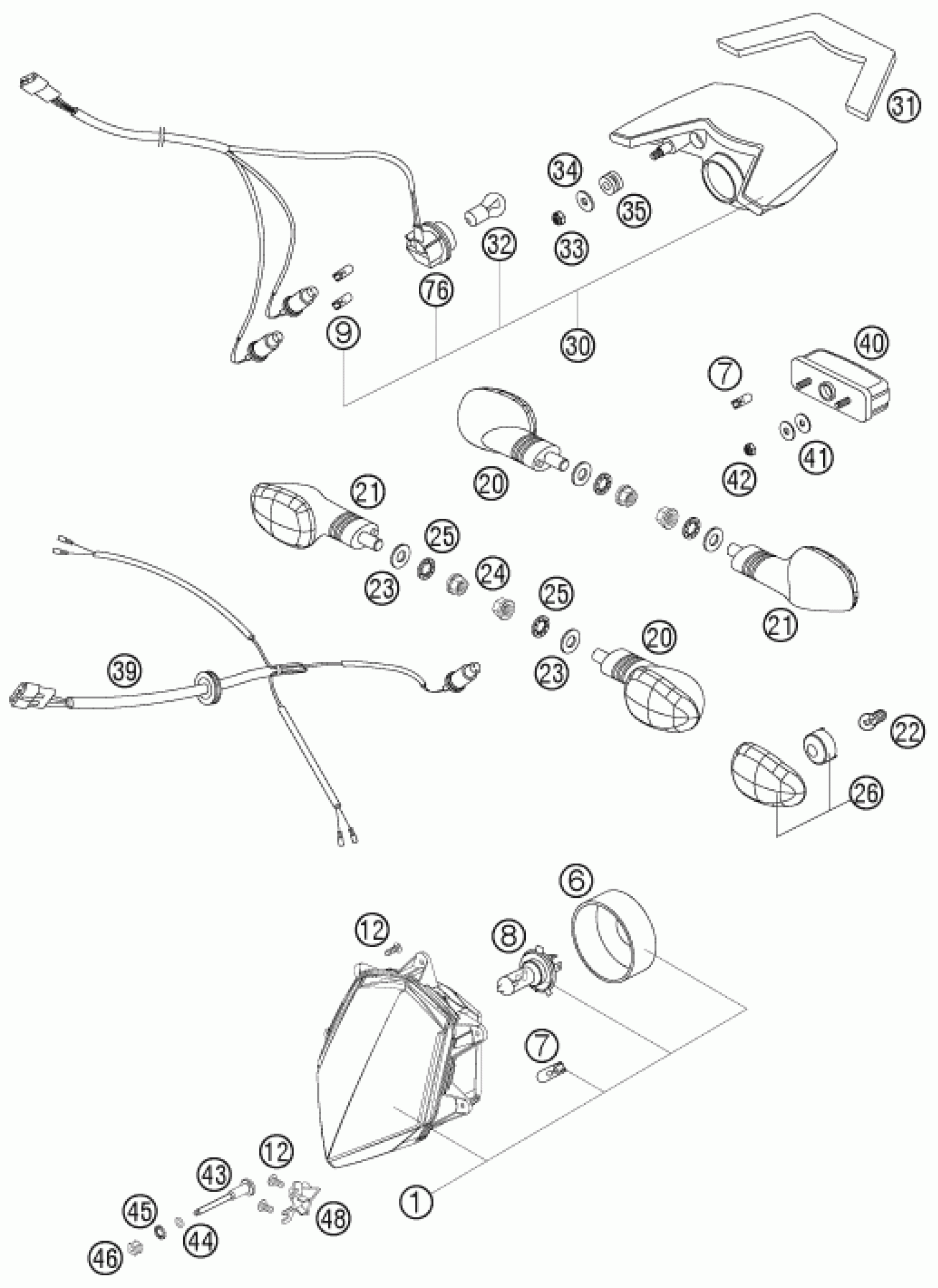

KTM 950 SUPERMOTO R 2007 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT LEFT TR. 05

58614001100

Unavailable

6

RUBBER CAP FOR HEAD LIGHT 05

58614001050

Unavailable

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

8

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

9

BULB RED WR5W 12V

49011435200

Unavailable

12

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

58414025100

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

58414026100

Unavailable

22

BULB 12V 10W (BA15S)

44111015100

Unavailable

23

washer DIN 125 A 10.5

0125100003

Unavailable

24

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

FLASHER LENS L/S & R/S 02

58414028100

Unavailable

30

REAR LIGHT CPL.SMOKED GLASS 07

58614140044

Unavailable

31

METAMOLL FOR REARLIGHT 05

58614040050

Unavailable

32

BULB RED PR21W 12V

60014048100

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

Washer DIN9021-A 6.4

0021060003

Unavailable

35

rubber grommet 16x10.8x3

58214069051

Unavailable

39

WIRING HARNESS REAR 05

62511076000

Unavailable

40

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

41

washer DIN 9021 A - 5.3

0021050003

Unavailable

42

Self locking nut DIN 985 M5

0985050003

Unavailable

43

ADJ. SCREW HEAD LIGHT 06

58614021100

Unavailable

44

O-RING 8X2 SILICONE

0770080020

Unavailable

45

CLAMPRING F. HEAD LIGHT ADJ.

58614024000

Unavailable

46

ADJUSTINGNUT F. HEAD L. ADJ.05

58614018000

Unavailable

48

TAB HEAD LIGHT ADJ. 05

62514063050

Unavailable

76

CABLE HARNESS REAR PART 07

58611176100

Unavailable
