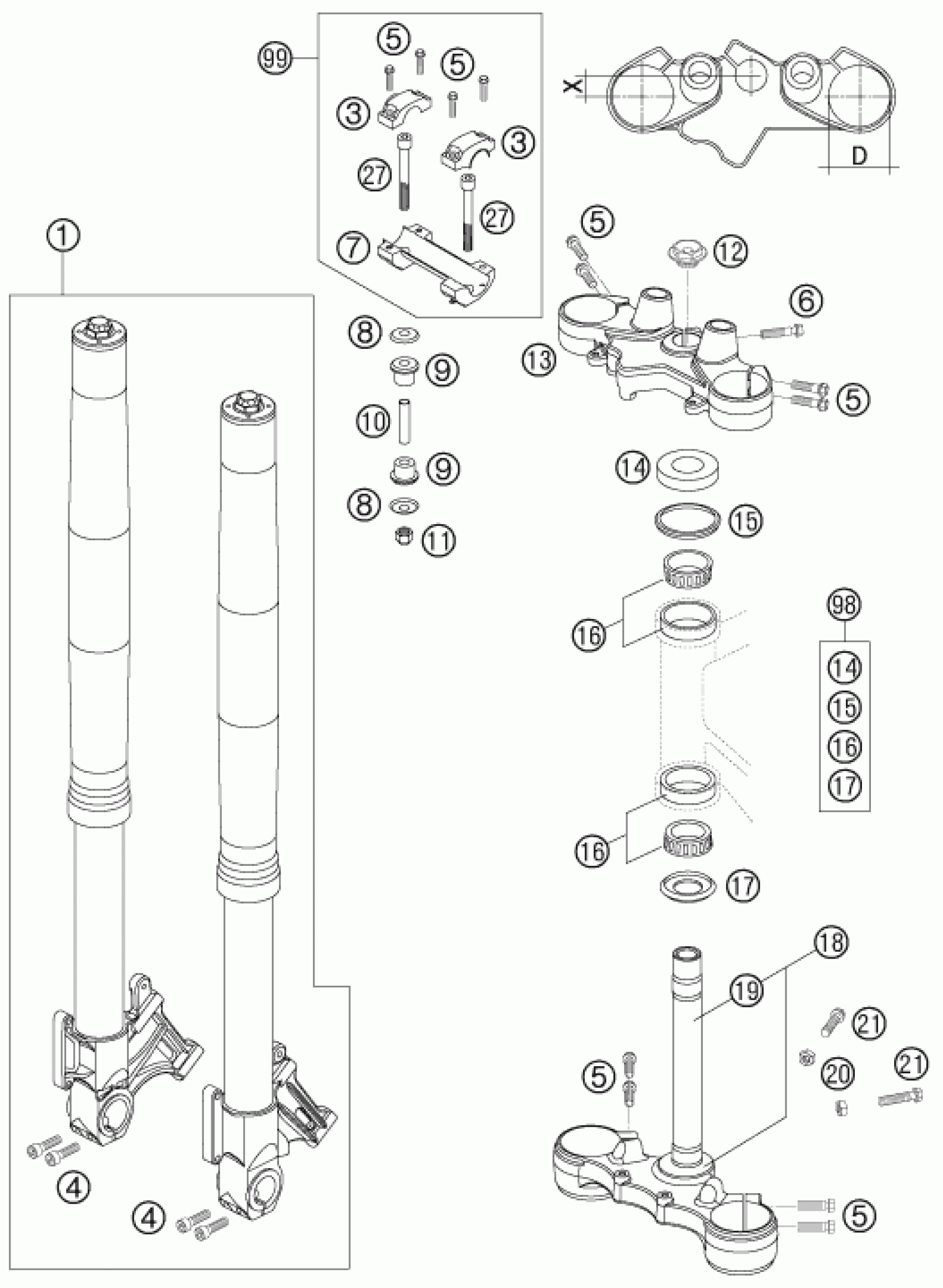

KTM 950 SUPERMOTO R 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FRONT FORK WP 950 SUPERMOTO-R

14187C21

Unavailable

3

HANDLEBAR CLAMP 28MM 07

5900103830001S

Unavailable

4

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

7

HANDLEBAR SUPPORT 28MM 07

5900103920001S

Unavailable

8

washer 10.5x32x2

56401042000

Unavailable

9

rubber bushing

56401040000

Unavailable

10

SPACER TUBE 10,2X12X44

56401041100

Unavailable

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

12

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

Unavailable

13

TOP TRIPLE CLAMP 07

6250103402733S

Unavailable

14

STEERING HEAD COVER 05

61001086000

Unavailable

15

STEARING HEAD GASKET TOP

54601184000

Unavailable

16

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

17

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

18

BOTTOM TRIPLE CLAMP CPL. 07

6250103202733S

Unavailable

19

FORK TUBE LC8 ADV 03

60001033000

Unavailable

20

Hexagon nut DIN934 M8

0934080003

Unavailable

21

HH SCREW DIN0933-M 8X30

0933080303

Unavailable

27

AH SCREW DIN6912-M10X70

0984100703

Unavailable

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
