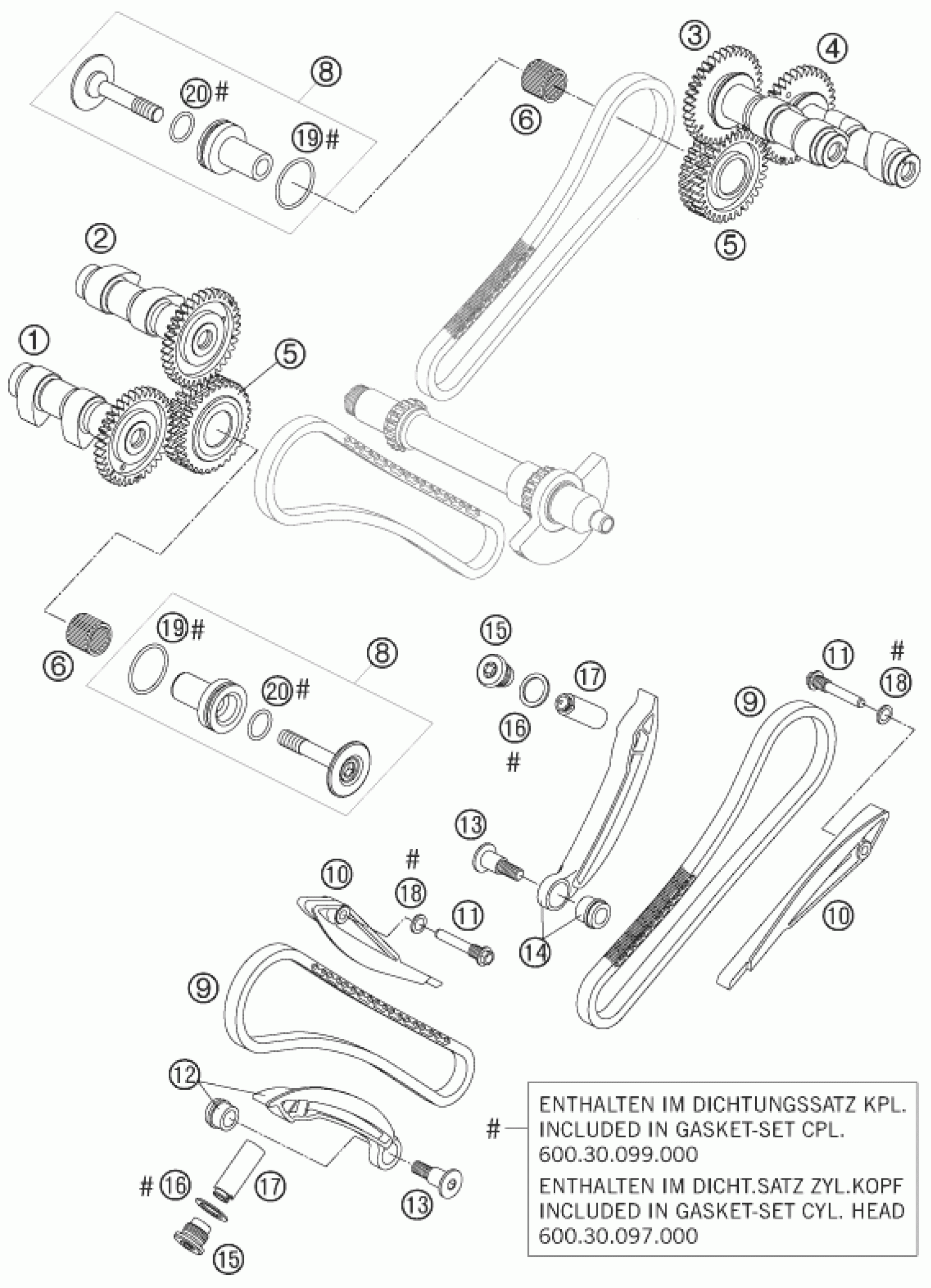

KTM 950 SUPERMOTO BLACK 2007 TIMING DRIVE Diagram

#

Description
Price

1

CAMSHAFT EXHAUST CPL. FRT 03

60036010144

Unavailable

2

CAMSHAFT INTAKE CPL. FRT. 03

60036009144

Unavailable

3

CAMSHAFT INTAKE CPL. REAR 03

60036109144

Unavailable

6

NEEDLE BEARING K18/24/20

0405182420

Unavailable

19

O-RING 29X2 VITON

0770290020

Unavailable

8

BEARING BOLT

60036071100

Unavailable

9

TOOTH CHAIN 88 LINK 6,35PITCH

60036013000

Unavailable

10

GUIDE RAIL 03

60036001000

Unavailable

11

BUSHING SCREW 2 CYL. 03

60036002060

Unavailable

12

TENSIONER RAIL CPL. FRONT 03

60036002000

Unavailable

13

COLLAR SCREW AH M8 03

60036002050

Unavailable

14

TENSIONER RAIL CPL. REAR 03

60036102000

Unavailable

15

SCREW PLUG M16X1,5 03

60036008000

Unavailable

16

CU SEAL-RING DIN7603 16X20X1,3

0603162013

Unavailable

17

TIMING-CH.TENS. HYDR.(75YM) 03

60036003000

Unavailable

18

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

4

CAMSHAFT EXHAUST CPL. REAR 03

60036110144

Unavailable

20

O-ring 16x2 Viton 75

0770160021

Unavailable

5

TIMING GEARS 32-T CPL. 03

60036070000

Unavailable
