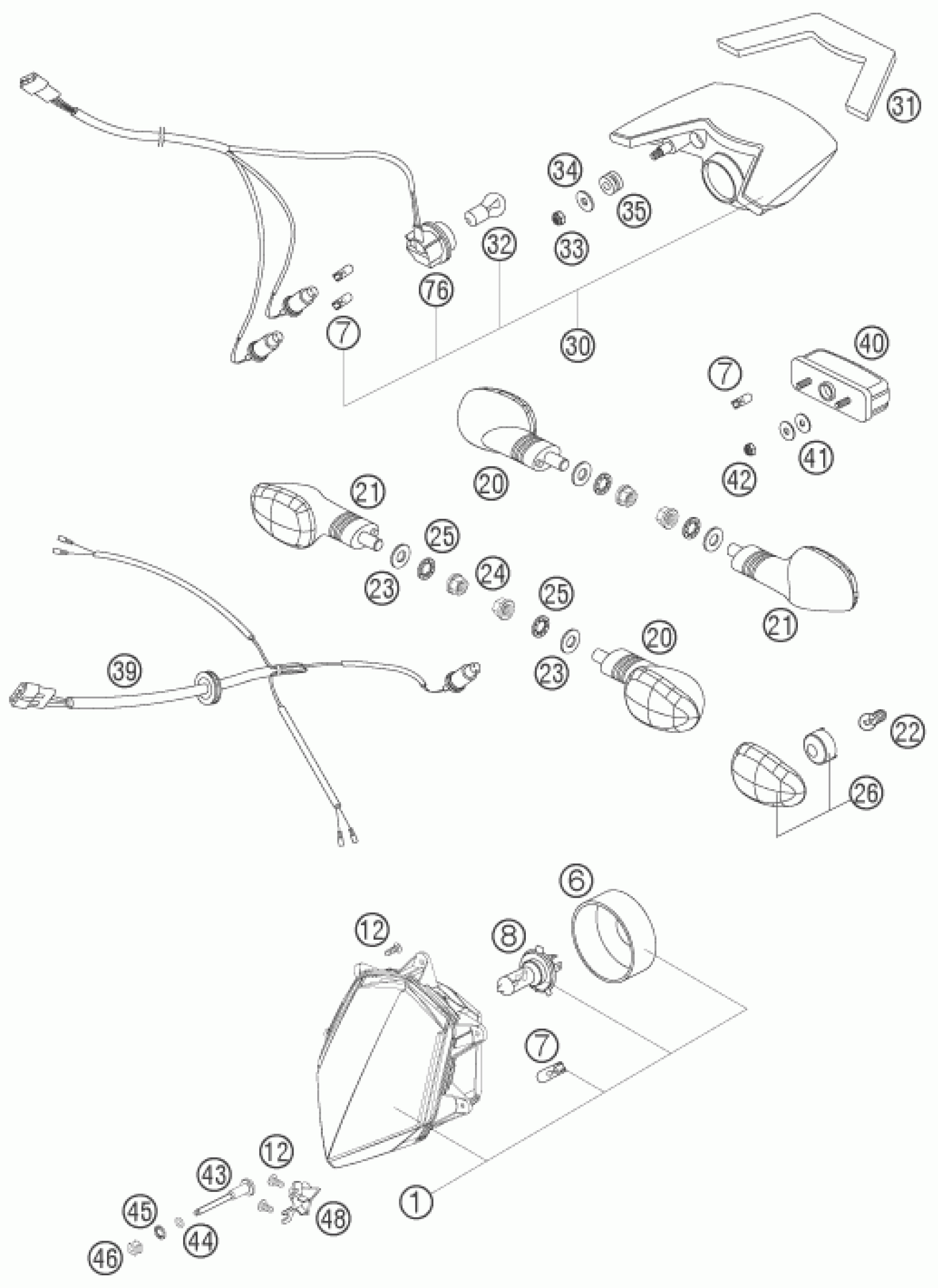

KTM 950 SUPERMOTO BLACK 2007 LIGHTING SYSTEM Diagram

BULB 12V 21W

60014048000

$5.23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

rubber grommet 16x10.8x3

58214069051

$5.23

WIRING HARNESS REAR 05

62511076000

$11.11

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

washer DIN 9021 A - 5.3

0021050003

$1.49

Self locking nut DIN 985 M5

0985050003

$2.05

ADJ. SCREW HEAD LIGHT 06

58614021100

$9.34

O-RING 8X2 SILICONE

0770080020

$1.49

CLAMPRING F. HEAD LIGHT ADJ.

58614024000

$2.05

ADJUSTINGNUT F. HEAD L. ADJ.05

58614018000

$4.11

TAB HEAD LIGHT ADJ. 05

62514063050

$1.49

CABLE HARNESS REAR PART 05

58611076100

$47.21

HEAD LIGHT LEFT TR. 05

58614001100

Unavailable

RUBBER CAP FOR HEAD LIGHT 05

58614001050

$4.35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

SCREW FOR PLASTIC 50X12

0016050121

$2.05

FLASHER CPL.FRONT L/S REAR R/S

58414025100

$29.30

FLASHER CPL.FRONT R/S REAR L/S

58414026100

$29.03

BULB 12V 10W (BA15S)

44111015100

$3.08

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

FLASHER LENS L/S & R/S 02

58414028100

$6.63

REAR LIGHT CPL. RED 05

58614040044

$91.62

METAMOLL FOR REARLIGHT 05

58614040050

$4.61

washer DIN 125 A 10.5

0125100003

$2.05
