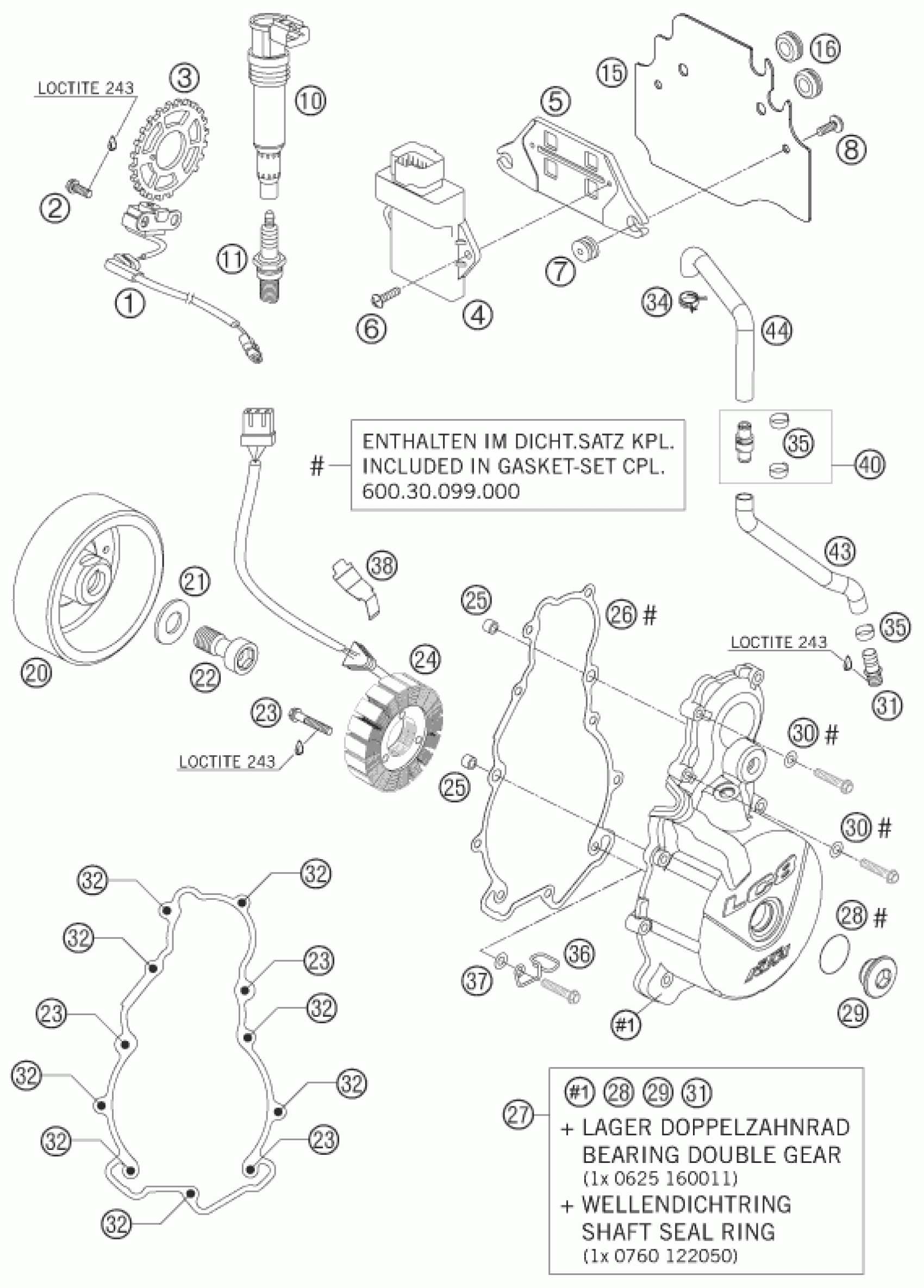

KTM 950 SUPERMOTO BLACK 2007 IGNITION SYSTEM Diagram

#

Description
Price

1

PULSE GENERATOR LC8 04

60039034100

$68.62

2

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

3

TRIGGER WHEEL 03

60039020100

$4.06

4

DIGITALBOX 950SM 05

62539031000

Unavailable

5

ADAPTER PLATE DIGITALBOX 03

60039028000

$3.89

6

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

7

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.08

8

COLLAR SCREW M6X12 TX

0023060123

$2.05

10

STICK COIL 03

60039006000

$94.80

11

SPARK PLUG CR8EK

59039093000

$11.02

15

COVER PLATE 07

63003082000

Unavailable

16

RUBBER SLEEVE D=12MM

41001052000

$4.11

20

IGNITION ROTOR 04

60039005100

$818.68

21

WASHER 17X32X4 03

60039040010

$5.23

22

AH EXPAND. SCREW M16X35 8.8

60039003000

Unavailable

22

AH EXPAND. SCREW M16X1,5 05

60039003100

Unavailable

23

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

24

STATOR 03

60039004000

$245.67

25

DOWEL 9,8 X 7 X 10

49030090000

$2.05

26

IGNIT.COVER GASK.MATRI.CS0,5MM

60030040100

$31.78

27

IGNITION COVER CPL. 06

60030002144

$200.74

28

O-RING 24X2,5 NBR

0770024025

$3.08

29

SCREW PLUG M24X1,5 PA 6.6

6003009400023

$3.08

30

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

31

VENTILATION CONNECTOR M16X1,5

60030022000

$8.31

32

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

34

CLAMP STD DN22

00049220121

$2.05

35

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

36

CABLE SUPPORT 03

60011094000

$5.23

37

WASHER DIN0125-A 6,4

0125060003

$1.49

38

generator line bracket

60039040020

$3.08

40

BACK-PRESSURE VALVE CPL.

60030090300

Unavailable

43

ENGINE BREATHER HOSE BOTTOM

60030087101

$42.35

44

ENGINE BREATHER HOSE TOP

60030087102

$18.33

4

DIGITALBOX 950 SE 06

63039031000

Unavailable
