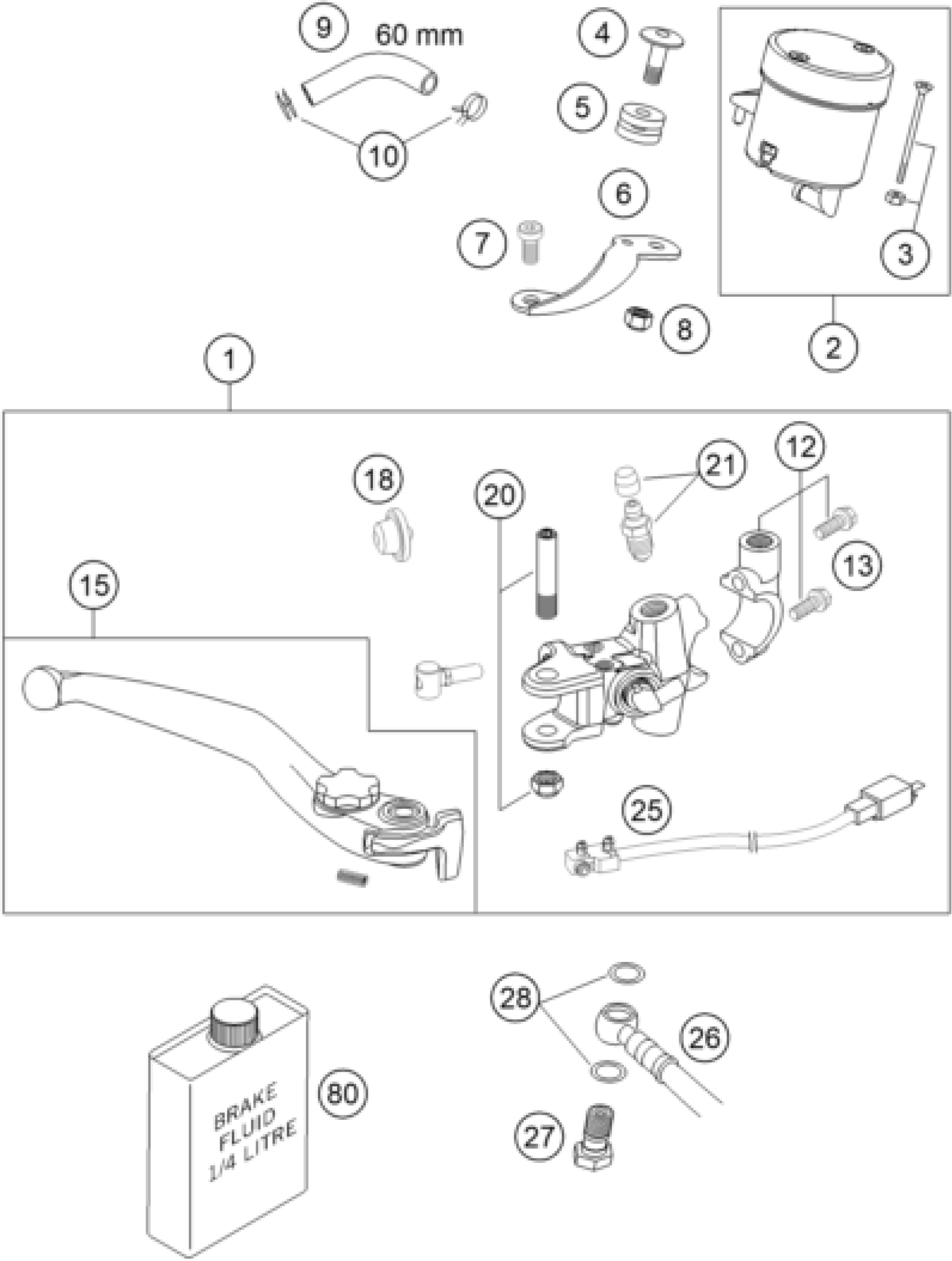

KTM 950 SUPERMOTO BLACK 2007 FRONT BRAKE CONTROL Diagram

HAND BRAKE CYLINDER 07

62513001100

$298.92

BRAKE FLUID RESERVOIR CPL.

61013009002

$41.51

SCREW + NUT FOR RESERVOIR

61013009003

$17.10

SCREW RET.PANEL-RESERVOIR

61013013050

$9.06

RUBBER BUSH 05

61013013000

$3.08

RET.PANEL FLUID RES. FRONT 05

61013009001

$9.34

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

NUT FOR RESERVOIR

61013009004

$3.08

HOSE FOR RESERVOIR 6X1,5

58007016101

$16.35

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

CLAMP CPL. 05

61013005000

$28.51

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

HAND BRAKE LEVER CPL. 07

62513002144

$127.53

RUBBER CUP 05

61013008000

$7.66

LEVER SCREW CPL. 05

61013006000

$12.43

BLEEDER SCREW WITH CAP

60013020000

$7.38

BRAKE LIGHT SWITCH FRONT 05

61011050000

$59.74

BRAKE PIPE FRONT CPL. 05

62513012000

$113.89

HOLLOW SCREW M10X1X19

50213025000

$6.54

sealing ring DIN 7603 10x14x1

0603100141

$2.05

Brake fluid DOT5.1 0,25L

00062030000

$12.52
