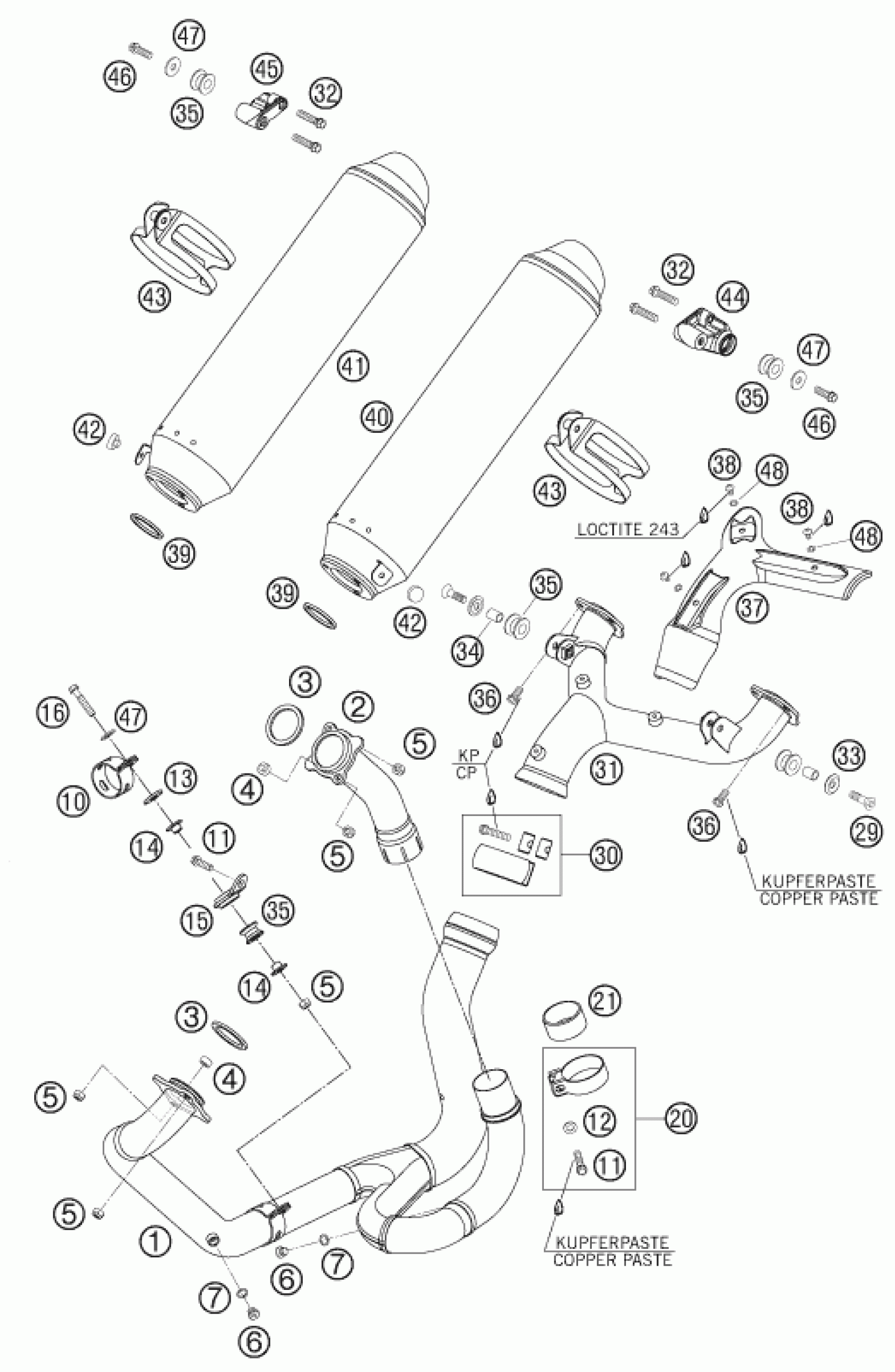

KTM 950 SUPERMOTO BLACK 2007 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE FRONT 05

62505007100

$659.56

2

EXHAUST PIPE REAR 05

62505008000

$136.86

3

GASKET 03

60005005000

$8.41

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

$5.23

5

self-locking nut M8 Cu

51010086100

$3.08

6

PLUG DIN0908-M10X1 A2

0908100000

$5.23

7

sealing ring DIN 7603 10x14x1

0603100141

$2.05

10

CLAMP EXHAUST PIPE 05

61005007049

$11.23

11

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

12

washer DIN 125 A -8.4

0125080003

$1.49

13

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

14

collar bushing 8.5x12x23.5x10

58405050065

$5.23

15

EXHAUST PIPE BRACKET FRONT 07

62505015150

$15.16

16

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

20

CLAMP CPL. D=53,2MM 05

61005051100

$26.39

21

Graphite ring 45X50X25

58405005001

$16.92

29

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

30

EXHAUST CLAMP CPL. 05

61005052000

$28.42

31

DISTRIBUTOR TUBE 05

62505048100

$322.97

32

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

33

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

$6.07

34

SPACER BUSH. 8,5X12X18MM 05

62505069000

$7.00

35

damp. component silicone grey

54305068100

$8.31

36

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

37

THERMAL SHIELD 05

62505047000

$69.36

38

SCREW TORX M5X10 05

58605083010

$2.05

39

EXHAUST GASKET 03

60005005002

$6.54

40

SILENCER L/S 05

62505083100

Unavailable

41

SILENCER R/S 05

62505083000

Unavailable

42

RUBBER BUFFER

54308042000

$3.08

43

CLAMP FOR SILENCER CPL. 03

60005095000

$35.02

44

SILENCER/HANDLE HOLDER L/S 07

6000508500001S

$40.94

45

SILENCER/HANDLE HOLDER R/S 07

6000508600001S

$41.51

46

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

47

WASHER DIN9021-A 8,4

0021080003

$1.49

48

TOOTH LOCK WASHER DIN6797-J

0797050000

$2.05
