CRANKSHAFT, PISTON

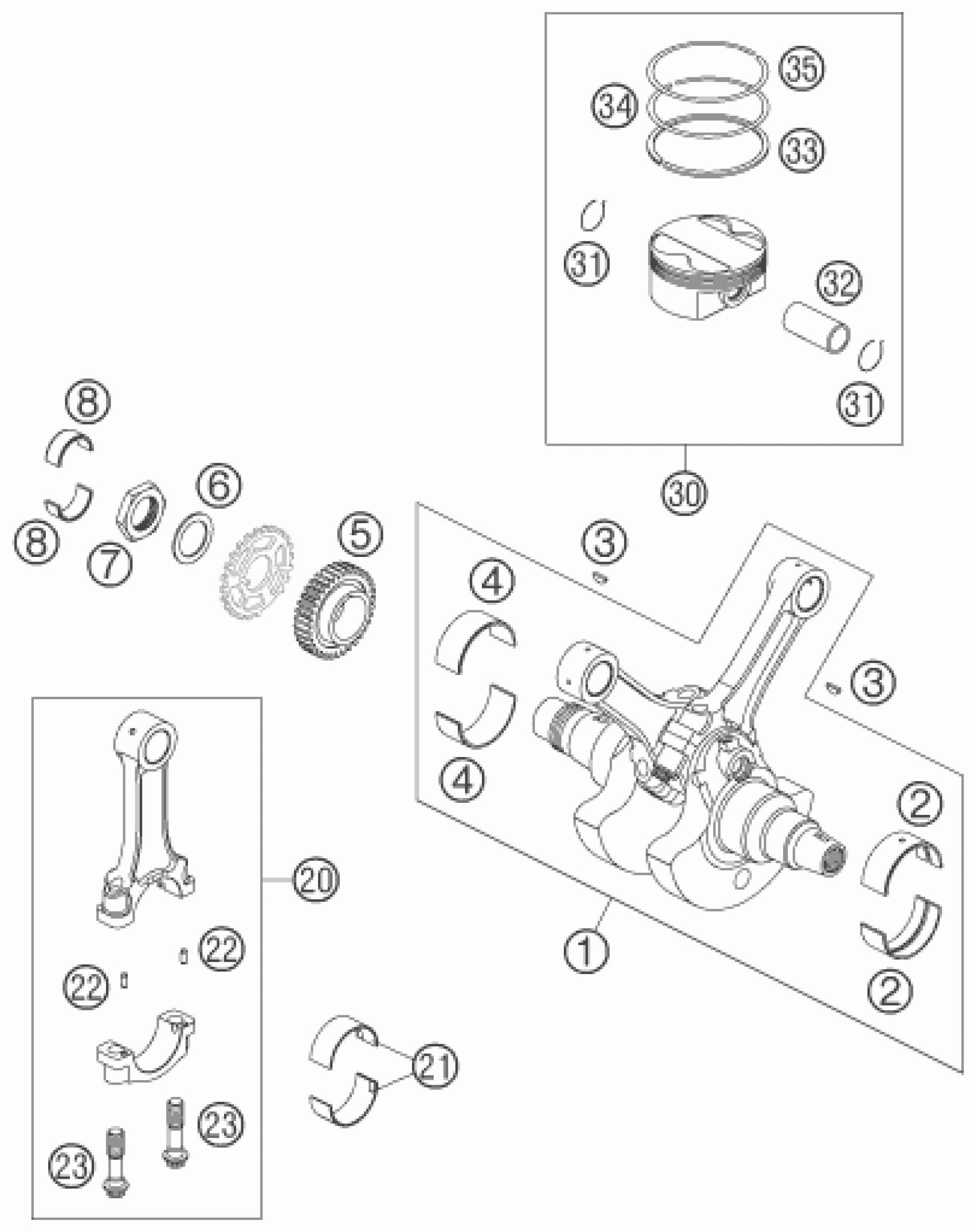

KTM 950 SUPERMOTO BLACK 2007 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
CRANKSHAFT CPL. 600-3 06
60030018300
$907.46
2
SPLIT BEAR.BUSH SIZE 1 RED 03
60030082000 1
Unavailable
2
SPLIT BEAR.BUSH SIZE 2 BLUE 03
60030082000 2
Unavailable
2
SPLIT BEAR.BUSH SIZE 3 YELL.03
60030082000 3
Unavailable
3
woodruff key DIN 6888 4x5x13
0888040050
$4.11
4
SPLIT BEAR.BUSH SIZE 1 RED 03
60030182000 1
Unavailable
4
SPLIT BEAR.BUSH SIZE 2 BLUE 03
60030182000 2
Unavailable
4
SPLIT BEAR.BUSH SIZE 3 YELL.03
60030182000 3
Unavailable
5
PRIMARY PINION 35 T 03
60032023035
$137.25
6
WASHER 33,2X46X2 03
60032009040
$3.08
7
HH-NUT M33X1,5 L/S WS46 03
60032009050
$15.89
8
BUSHING BOWL 28X32X13 03
60030026010
$14.02
20
CONNECTING ROD CPL. 06
60030013244
$235.05
21
BUSH.BOWL PACK. SIZE 1 RED 03
60030013051
Unavailable
21
BUSH.BOWL PACK. SIZE 2 BLUE 03
60030013052
Unavailable
21
BUSH.BOWL PACK. SIZE 3 YELL.03
60030013053
Unavailable
22
CYLINDER PIN 03
60030015061
$1.73
23
CONNECTING-ROD BOLT MJ10X1 06
60030015260
$19.81
30
PISTON D=100 03
60030007000 I
Unavailable
30
PISTON D=100 03
60030007000 II
Unavailable
31
CIRCLIP 22 X 1,6
58430074000
$9.62
32
PISTON PIN 22 X 13 X 60
58330833000
$46.27
33
OIL SCRAPER RING D=100MM 03
60030032000
$24.83
34
PISTON RING MIDDLE D=100MM 03
60030031000
$22.34
35
L-PISTON RING D=100MM 1,3MM
60030030000
$37.99
