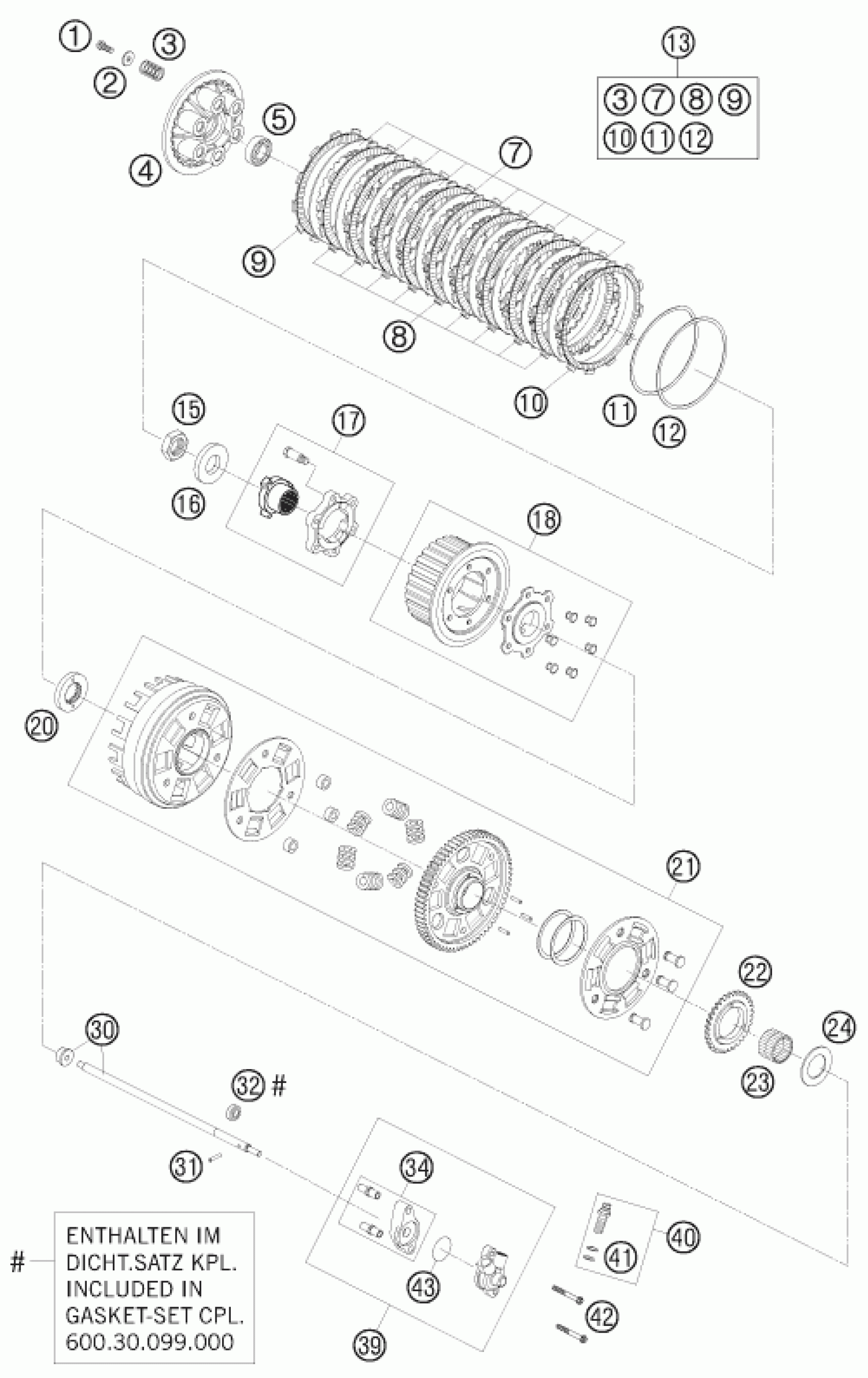

KTM 950 SUPERMOTO BLACK 2007 CLUTCH Diagram

HH collar screw M6x20 TX30

0025060206

$3.08

Washer DIN9021-A 6.4

0021060003

$2.05

CLUTCH SPRING LC8 2003

60032005000

$11.40

PRESSURE CAP LC8 2003

60032003000

$77.50

BALL BEARING 6003 JR2 C4

0625060032

$15.98

STEEL DISC 2MM 03

60032010000

$11.68

LINING DISK 2,8MM 03

60032011000

$28.14

LINING DISK OUTSIDE 2,8MM 03

60032111000

$35.15

LINING DISK TURN OUT 2,8MM 03

60032012000

$35.80

BELLEVILLE SPRING 2003

60032034000

$34.12

THRUST WASHER 2003

60032035000

$13.92

HEXAGON NUT DIN0936-M22X1,5 R.

0936220155

$2.05

WASHER DIN0126 22X37X3 MM

0126220373

$1.49

CLUTCH BOOSTER UNIT CPL. 03

60032080000

$337.34

INNER CLUTCH HUB CPL. 03

60032002000

$247.77

SECTION WASHER 03

60032021000

$33.93

OUT.CLUTCH HUB CPL. 67-T 2004

60032001144

$725.74

OIL PUMP GEAR WHEEL 32-T 03

60038001032

$27.85

Needle bushing HK 30X35X26

0618303526

$60.11

STOP DISK 30,2/50/2

60032020000

$7.85

PUSH ROD CPL.

60032054400

$41.32

Needle roll.DIN5402 NRB 3X17.8

0402031780

$1.49

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

$5.23

DISTANCE CLUTCH CONTR. CPL.

60032061050

$57.68

CYLINDER CPL. LC8 07

60032061144

$220.74

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

sealing ring DIN 7603 10x14x1

0603100141

$2.05

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

CLUTCH KIT LC8 03-13

60032011010

$386.99

O-RING GASKET 03

60032065000

$12.61
