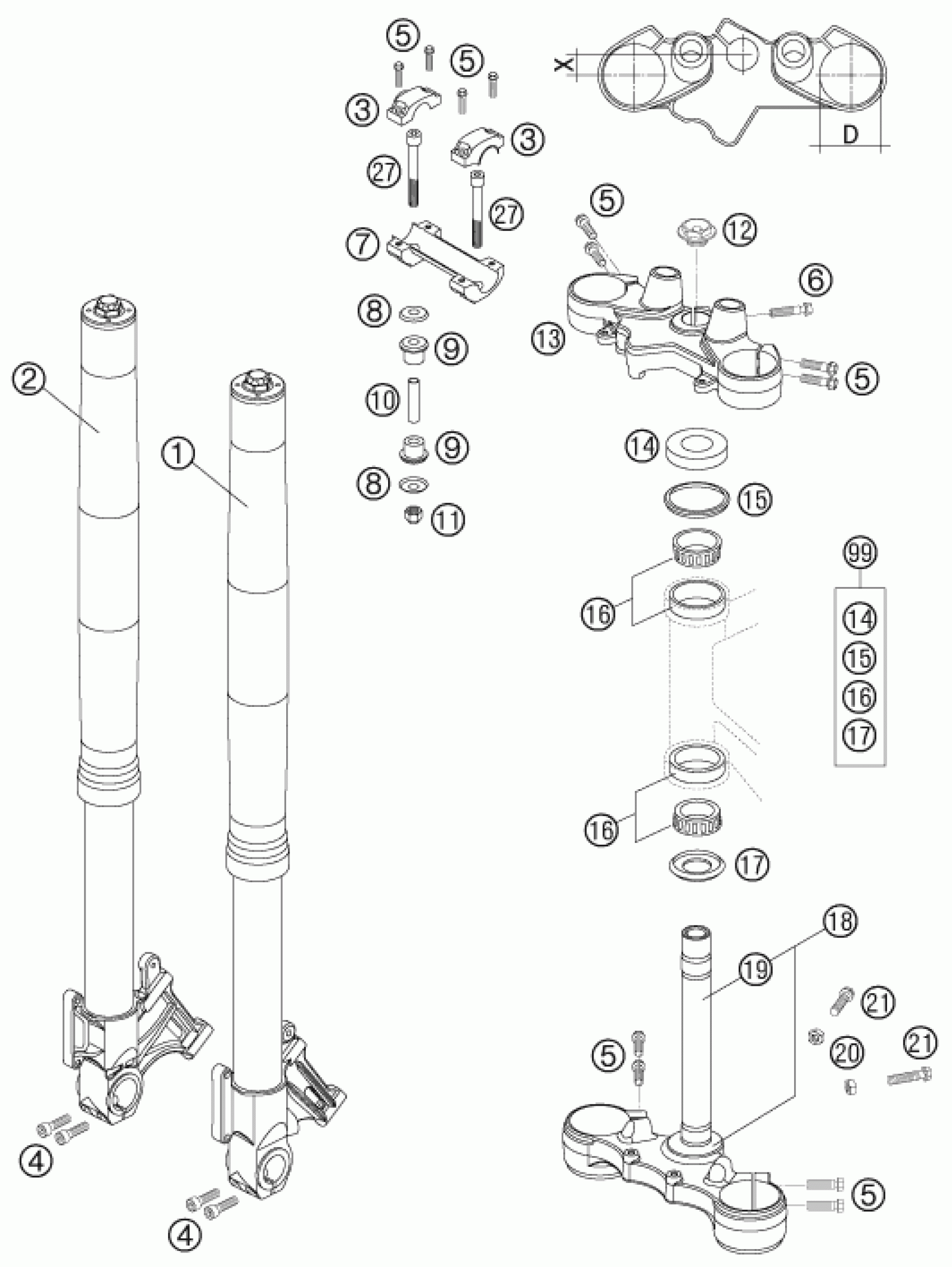

KTM 950 SUPERMOTO BLACK 2006 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

2

FORK LEG R/S WP48 950 SM 06

14187B20RS

$1,091.58

3

HANDLEBAR CLAMP 28MM ELOX. 05

59001038300

$27.76

4

AH SCREW DIN0912-M 8X30

0912080303

$2.05

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

7

HANDLEBAR SUPPORT 28 MM ELOX.

59001039200

$147.25

8

washer 10.5x32x2

56401042000

$4.11

9

rubber bushing

56401040000

$5.23

10

SPACER TUBE 10,2X12X44

56401041100

$5.88

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

12

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

$14.58

13

TOP TRIPLE CLAMP 05

62501034030

$133.70

14

STEERING HEAD COVER

54201086000

$8.50

15

STEARING HEAD GASKET TOP

54601184000

$7.10

16

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

17

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

18

BOT.TRIPLE CLAMP CPL. 05

62501032030

$167.35

19

FORK TUBE LC8 ADV 03

60001033000

$65.16

20

Hexagon nut DIN934 M8

0934080003

$2.05

21

HH SCREW DIN0933-M 8X30

0933080303

$2.05

27

AH SCREW DIN6912-M10X70

0984100703

$7.00

1

FORK LEG L/S WP48 950 SM 06

14187B20LS

$1,091.58

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
