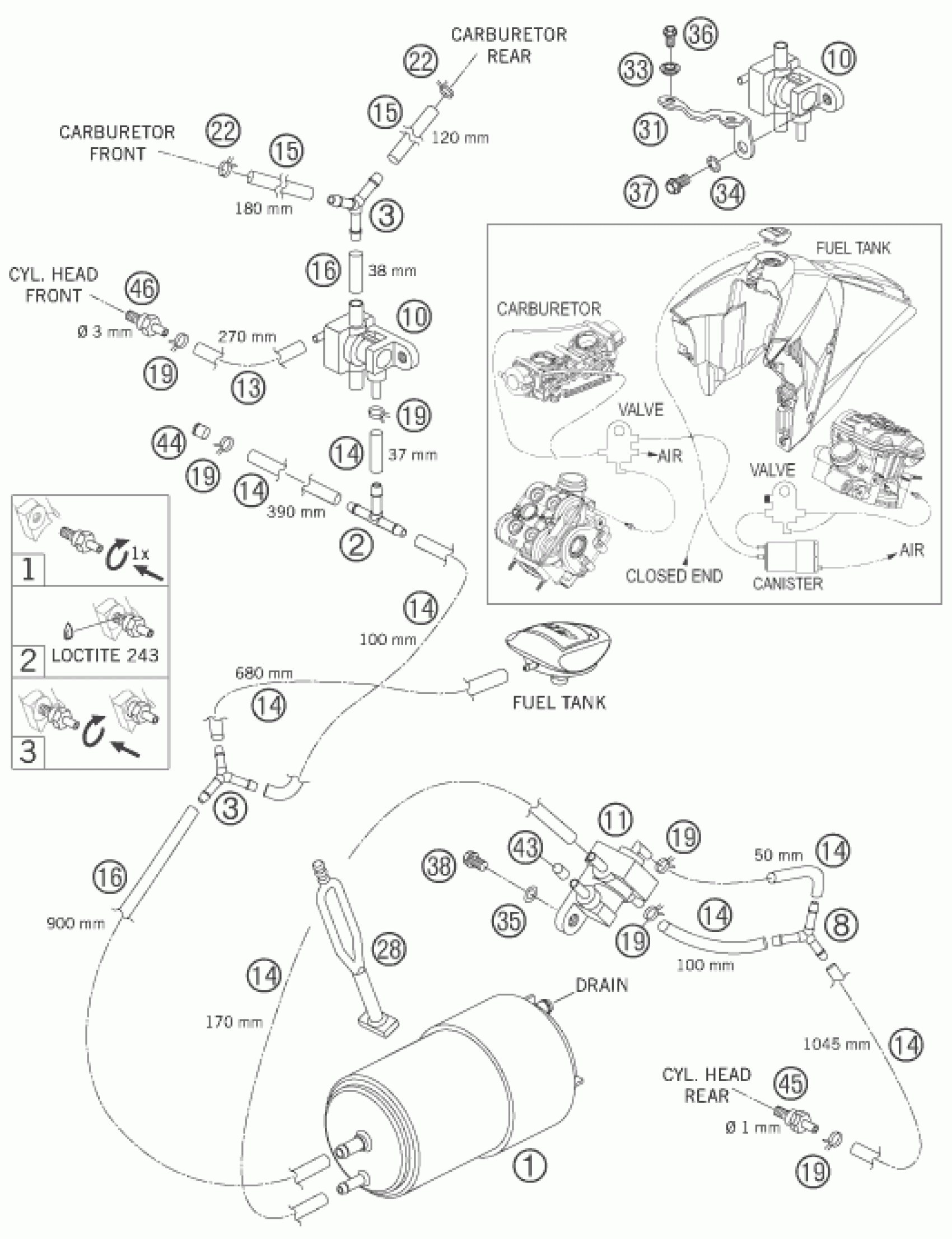

KTM 950 SUPERMOTO BLACK 2006 EVAPORATIVE CANISTER Diagram

#

Description
Price

35

washer DIN 125 A -8.4

0125080003

$1.49

46

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

38

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

45

VACUUM CONECT. M6/1MM M-GROOVE

60036023000

$21.32

1

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

2

T-connector TS-6 03

60015022000

$5.98

3

Y-CONNECTING PIECE YS 6-8-6 04

60015025000

$5.30

10

VALVE MIKUNI CI-41-04

60015030000

$132.93

11

VALVE MIKUNI CI-41-05

60015031000

$134.78

13

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

14

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

15

HOSE 6X12 PER METER

60007116001

Unavailable

16

HOSE NBR 7X11 PER METER

60015019001

Unavailable

19

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

22

CLAMP YDNAC 10128 12MM

58031005000

$3.08

28

RUBBER L=145MM

50303018000

$6.44

31

BRACKET FOR EVAP-VALVE

60015011000

Unavailable

33

BUSHING EVAP-VALVE 04

60015013000

Unavailable

34

LOCK WASHER 8MM

36003014000

$2.05

36

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

37

HH COLLAR SCREW M 8X10 WS=10

0015080103

$3.08

43

COVER CAP EVAP.CANIST.VALVE 04

60015033000

$1.49

44

PLUG FOR EVAP.CANISTER SYST.04

60015034000

Unavailable

8

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

$5.23
