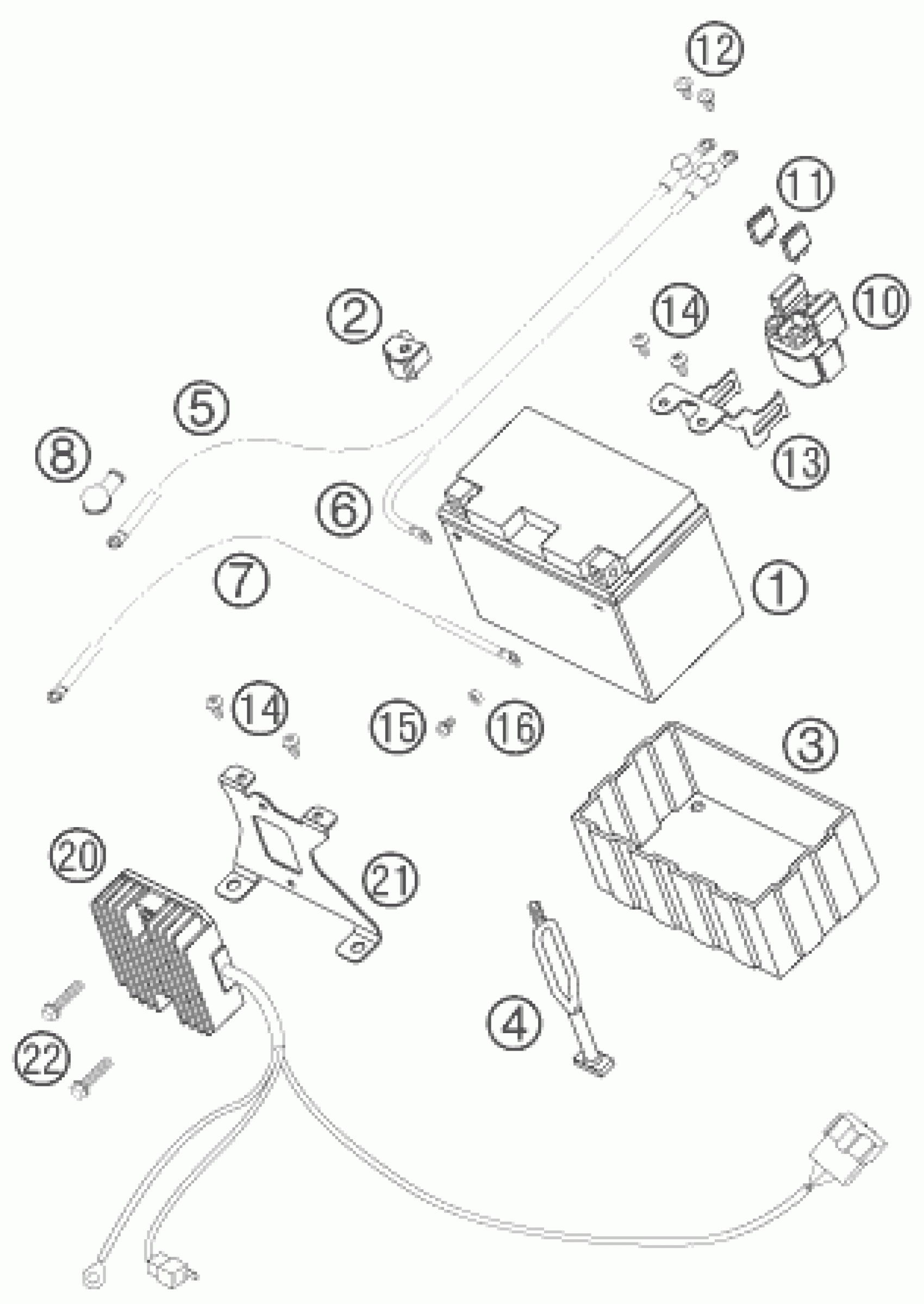

KTM 950 SUPERMOTO BLACK 2006 BATTERY Diagram

#

Description
Price

2

COVER POSITIVE POLE 06

62511059160

Unavailable

1

BATTERY 12V/11AH 03

60011053000

Unavailable

3

BATTERY COVER 96

58411053050

Unavailable

4

RUBBER L=145MM

50303018000

Unavailable

5

STARTER CABLE L=650MM 05

62511059000

Unavailable

6

BATTERY CABLE L=125MM 05

62511059050

Unavailable

7

GROUND CABLE L=650MM 05

62511097000

Unavailable

8

Rubber grommet, starter port 0

60040009000

Unavailable

10

Starter reley 12V 99

58211058000

Unavailable

11

Plug-in fuse, big 30A

58011109130

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

13

BRACKET START RELAY 05

62511058050

Unavailable

14

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

15

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

16

Hex. nut DIN 934 M6

0934060003

Unavailable

20

VOLTAGE REGULATOR 05

62511034000

Unavailable

21

BRACKET VOLTAGE REGULATOR 05

62511037000

Unavailable

22

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable
