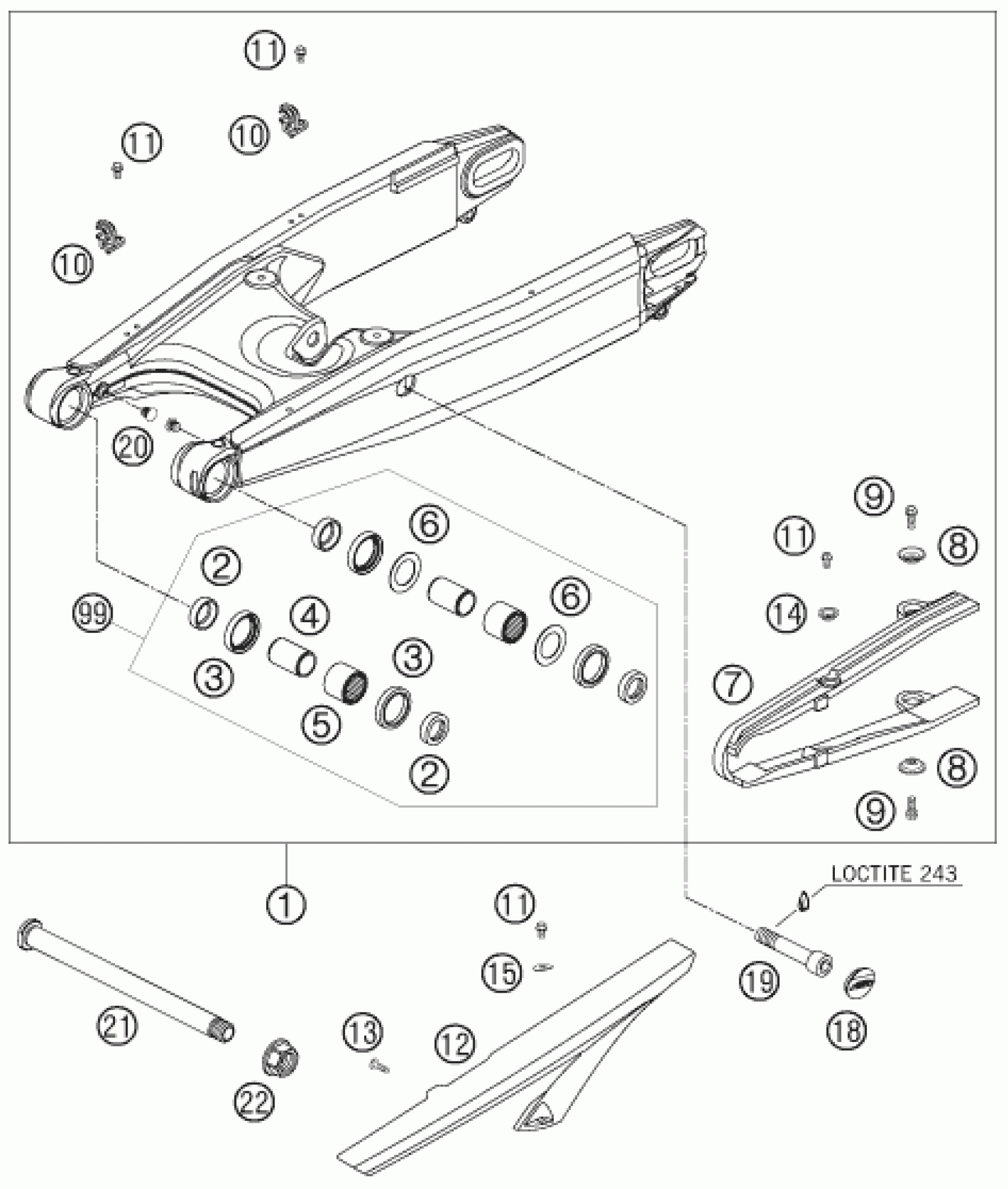

KTM 950 SUPERMOTO BLACK 2005 SWING ARM Diagram

SWINGARM CPL. 990 DUKE 05

61004030044

$1,120.66

Bucket f. shaft seal ring 03

60004034000

$8.03

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

$2.05

SPECIAL SCREW M 5,0X10

0009050103

$2.05

CHAINGUARD 05

61004060000

$10.00

Stop disk 03

60004033000

$2.05

CHAIN SLID. GUARD SWINGARM 05

60004066100

$27.48

Radial shaft seal 30X40X7

0760304073

$4.11

INNER RING JR20X25X38,5 03

60004032000

$18.13

NEEDLE BUSH HK2526B 03

60004031000

$10.65

BUCKET

72210079000

$3.00

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

WASHER CHAINGUARD 05

61004060050

$5.23

PLUG SWINGARM 03

60004041000

$6.72

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

PLUG SFL12 GREY 05

60004042000

$1.49

SWINGARM BOLT CPL. 05

60004037144

$56.72

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

SWINGARM REP. KIT

60004230010

$86.57
