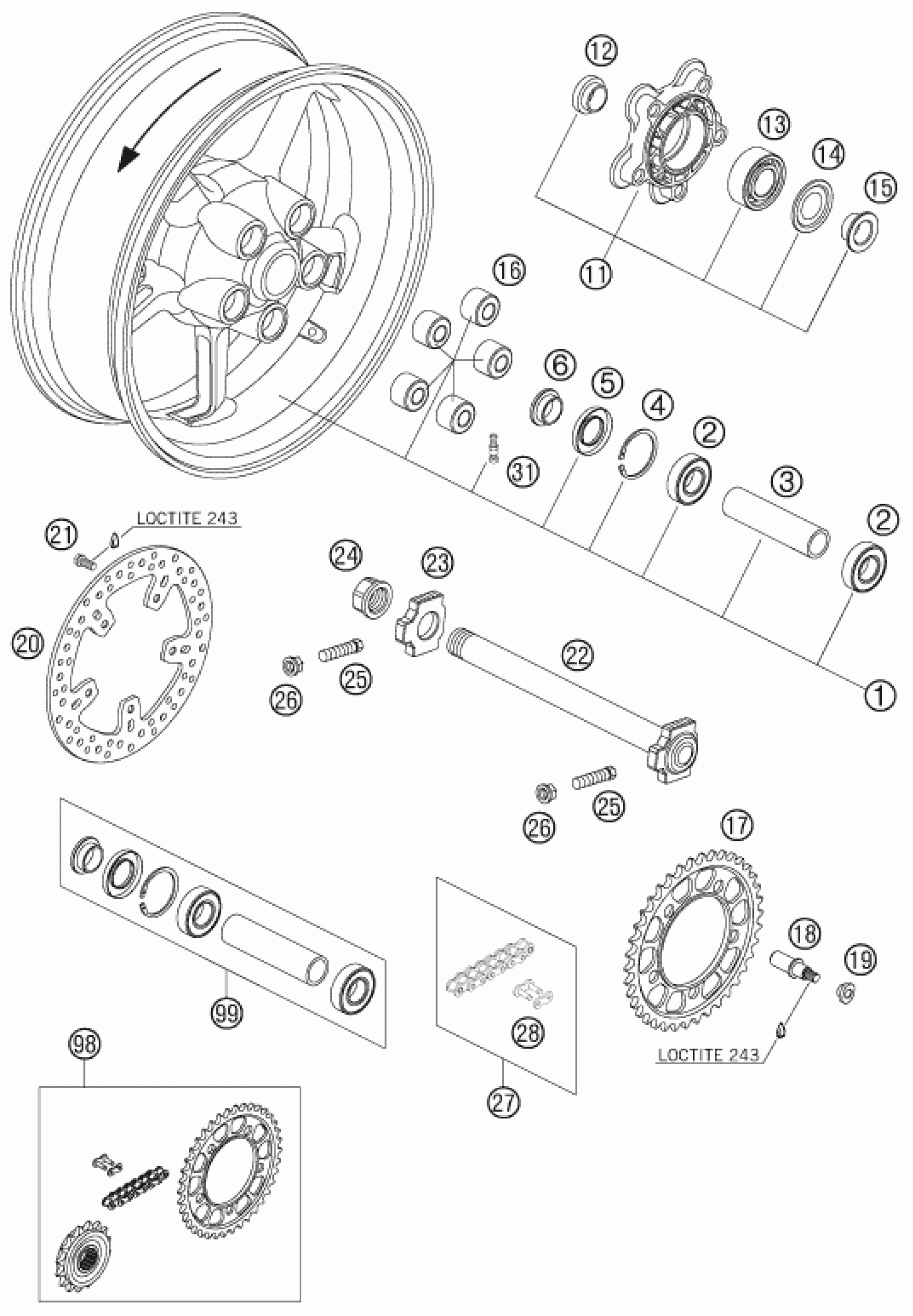

KTM 950 SUPERMOTO BLACK 2005 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 05

61010001044

$626.94

2

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

3

BEARING SPACER TUBE REAR 05

61010011000

$18.20

4

CIRCLIP DIN0472-52X2

0472052200

$3.08

5

Radial shaft seal 30X52X7

0760305271

$5.23

6

SPACER BUSH. REAR WHEEL R/S 03

60010013000

$10.70

11

SPROCKET SUPPORT CPL. 05

61010050044

Unavailable

12

SPACER BUSH. SPR. SUPP. IN. 03

60010014000

$12.63

13

BALL BEARING 3206 2RS1

0625032067

$71.62

14

NILOS RING 7206 AVH 03

60010016000

$6.62

15

SPACER BUSH. SPROCKET SUPP. 03

60010012000

$16.18

16

DAMPING RUBBER 05

61010059000

$16.63

17

REAR SPROCKET 38-T STEEL 05

61010051138

Unavailable

17

REAR SPROCKET 39-T STEEL 05

61010051139

Unavailable

17

REAR SPROCKET 40-T STEEL 05

61010051140

Unavailable

18

BOLT FOR SPROCKET SUPPORT 05

61010056000

$6.35

19

NUT REAR SPROCKET 05

61010057000

$4.11

20

BRAKE DISK REAR D=240MM 05

61010060000

$147.07

21

SPECIAL SCREW M8X18 05

61009062018

$4.11

22

WHEEL SPINDLE REAR CPL. 03

60010081044

$56.09

23

Chain tension adjuster, right,

60010084000

$22.81

24

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

25

SPEC. SCREW M10X1,25X40 WS=10

50304040000

$5.23

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

27

CHAIN 525 WITH MASTER LINK 03

60010165118

$231.40

28

MASTER LINK FOR CHAIN 525 03

60010066000

Unavailable

31

VALVE CPL. BREMBO DUKE 2003

58709076000

$8.69

17

REAR SPROCKET 41-T STEEL 05

61010051141

$75.45

17

REAR SPROCKET 42-T STEEL 05

61010051142

Unavailable

99

REAR WHEEL REP. KIT

61010015000

Unavailable

98

DRIVETRAIN KIT SM/SMR 17T/41T

00050002012

Unavailable
