Description

Price

32

COVER SILENCER R/S 05

62512009000

$13.69

33

THERMAL PROTECTION FOIL L/05

62512008050

$4.91

34

THERMAL PROTECTION FOIL R/S 05

62512009050

$4.91

35

RUBBER SLEEVE D=12MM

41001052000

$4.11

36

COLLAR BUSHING 8,2X12X28X9 03

60012008003

$7.28

37

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

$3.08

38

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

18

THERM.PROT. FOIL L/S TOP 05

62508018050

$18.50

19

THERM.PROT. FOIL R/S TOP 05

62508018060

$23.37

20

REAR END TOP PART BLACK 05

6250801800030A

$191.05

21

REAR END LOWER PART 05

62508019000

Unavailable

22

NUMB.PLATE CARRIER 05

62508015000

$60.58

23

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

24

SCREW FOR PLASTIC 50X12

0016050121

$2.05

25

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

27

THERMAL PROTECTION FOIL L/S 05

62508019050

Unavailable

28

THERMAL PROTECTION FOIL R/S 05

62508019060

$6.57

30

BAGGAGE RACK 05

62512010000

$36.02

31

COVER SILENCER L/S 05

62512008000

$13.77

44

COVER FRAME R/S REAR 05

62503084000

$2.15

45

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

50

LICENCE NUMBER SUPPORT 05

60012081100

$8.41

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

REFLECTOR RED

58412080000

$5.23

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

57

WASHER 6MM

40006006000

$1.49

58

BRACKET FOR REFLECTOR

58412080050

$6.07

59

WASHER DIN0125-A 5,3

0125050003

$1.49

60

Self locking nut DIN 985 M5

0985050003

$2.05

70

TOOL SET 950/990 05

61029099000

$110.50

71

RUBBER L=145MM

50303018000

$6.44

72

SUPPORT TOOL SET 05

62508021000

$8.71

1

HEAD LIGHT MASK BLACK 05

5860800100030A

$56.20

2

FENDER FRONT BLACK 05

6250801000030A

$64.54

3

SPLASH PROTECT. 05

62501094000

$53.57

5

COLLAR BUSHING 7,2X10X15X8,5

62508009000

$5.23

6

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

10

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

40

SPLASH PROTECTOR FRAME 05

60003087000

$5.22

41

COVER FRAME L/S FRONT 05

62503085000

$6.35

42

COVER FRAME R/S FRONT 05

62503086000

$5.83

43

COVER FRAME L/S REAR 05

62503083000

$2.61

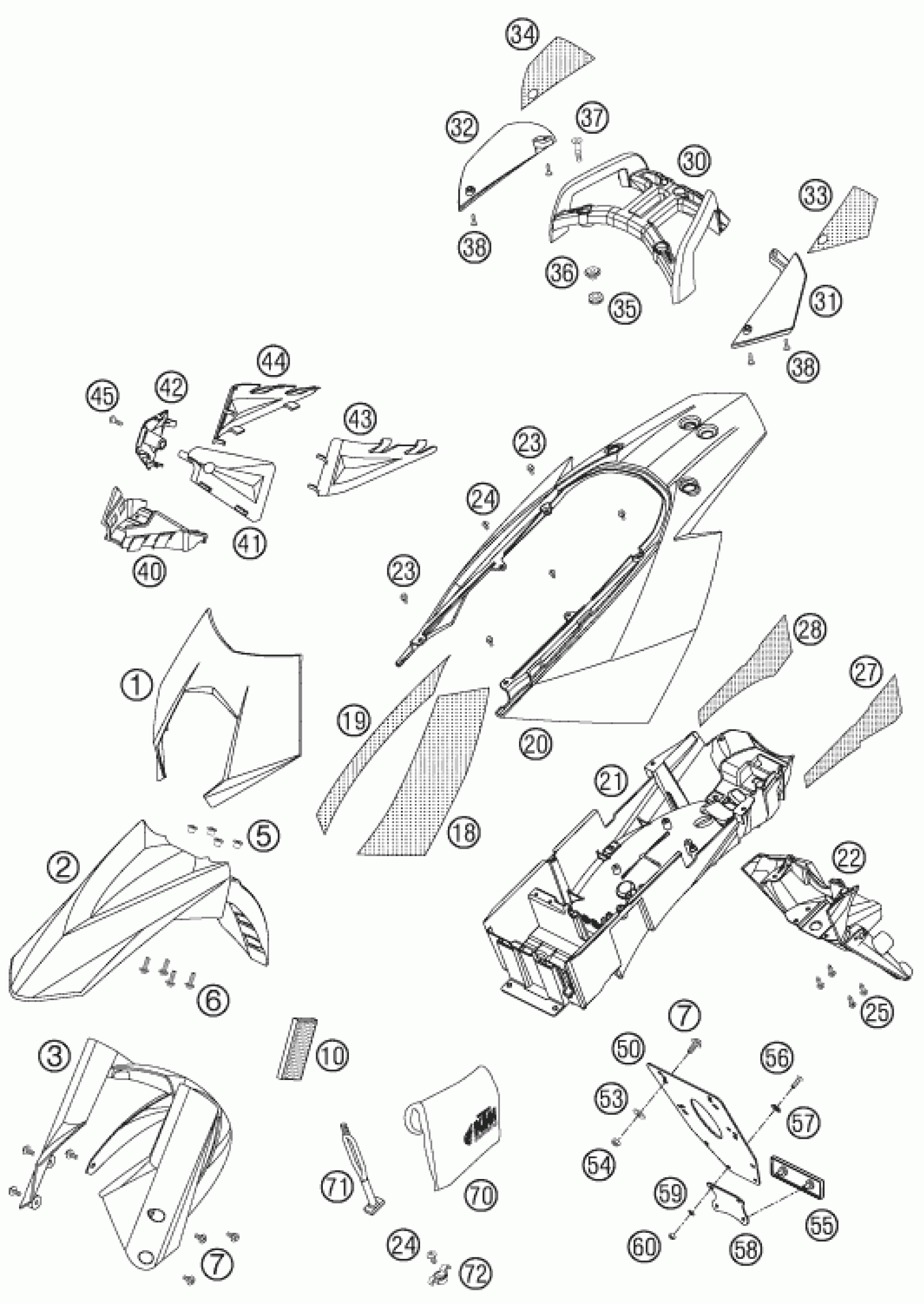

KTM 950 SUPERMOTO BLACK 2005 MASK, FENDERS Diagram

COVER SILENCER R/S 05

THERMAL PROTECTION FOIL L/05

THERMAL PROTECTION FOIL R/S 05

RUBBER SLEEVE D=12MM

COLLAR BUSHING 8,2X12X28X9 03

FLAT HEAD SCREW DIN7991-M 8X40

SCREW FOR PLASTIC D=5X18

THERM.PROT. FOIL L/S TOP 05

THERM.PROT. FOIL R/S TOP 05

REAR END TOP PART BLACK 05

REAR END LOWER PART 05

NUMB.PLATE CARRIER 05

HH COLLAR SCREW M 5X12 WS=8

SCREW FOR PLASTIC 50X12

EJOT PT SCREW K60X20 WS=6

THERMAL PROTECTION FOIL L/S 05

THERMAL PROTECTION FOIL R/S 05

BAGGAGE RACK 05

COVER SILENCER L/S 05

COVER FRAME R/S REAR 05

SCREW FOR PLASTIC D=5X18

LICENCE NUMBER SUPPORT 05

Washer DIN9021-A 6.4

Self lock. nut DIN985-M6-A2

REFLECTOR RED

OVAL HEAD SCREW DIN0966-M 5X16

WASHER 6MM

BRACKET FOR REFLECTOR

WASHER DIN0125-A 5,3

Self locking nut DIN 985 M5

TOOL SET 950/990 05

RUBBER L=145MM

SUPPORT TOOL SET 05

HEAD LIGHT MASK BLACK 05

FENDER FRONT BLACK 05

SPLASH PROTECT. 05

COLLAR BUSHING 7,2X10X15X8,5

HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X15 WS=8

SIDE REFLECTOR YELLOW 03

SPLASH PROTECTOR FRAME 05

COVER FRAME L/S FRONT 05

COVER FRAME R/S FRONT 05

COVER FRAME L/S REAR 05
