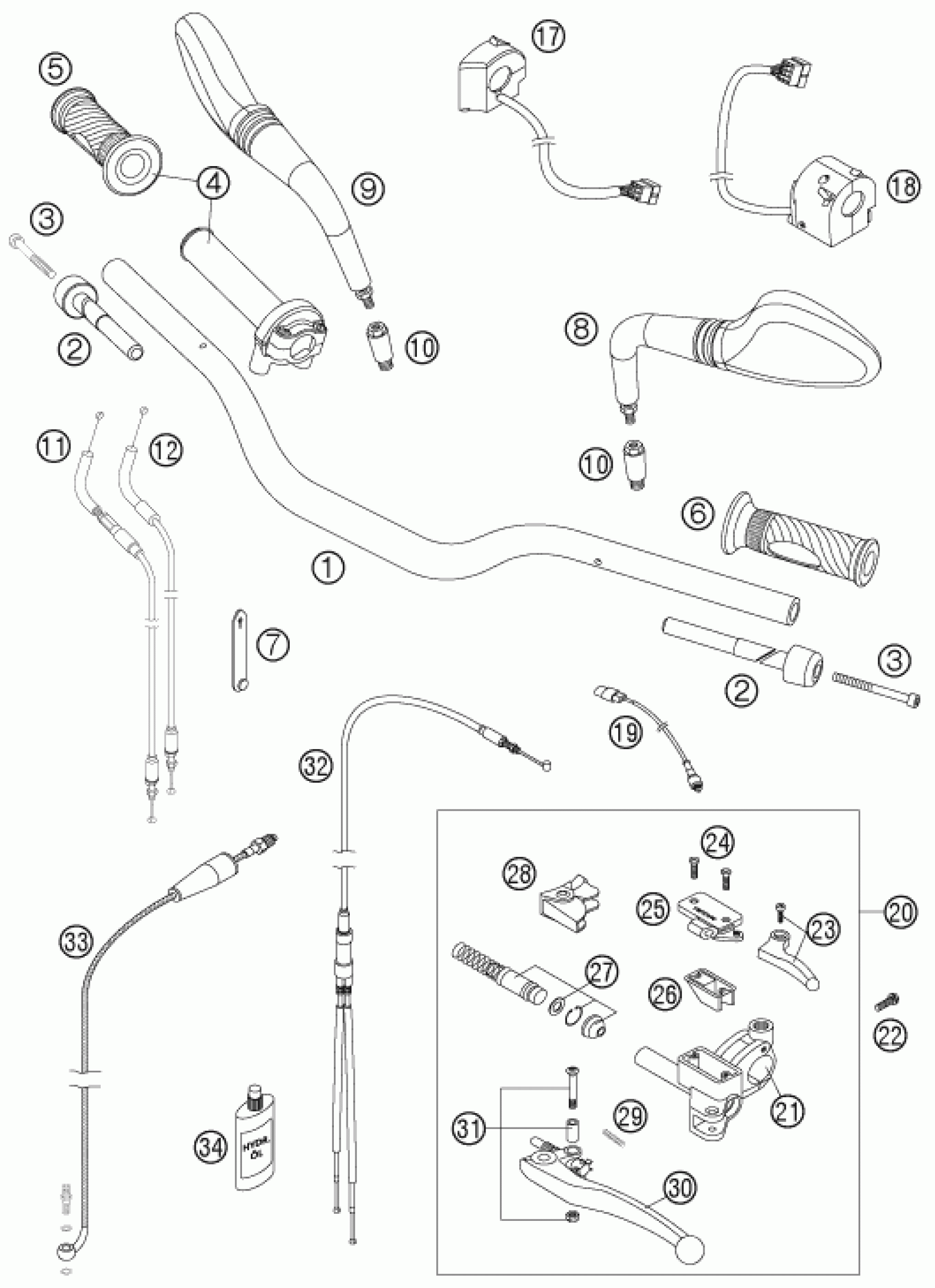

KTM 950 SUPERMOTO BLACK 2005 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR ALU 05

62502001000

Unavailable

2

handlebar weight

61002004000

Unavailable

3

SHCS DIN 912 M6x65

0912060653

Unavailable

4

THROTTLE GRIP 05

61002010000

Unavailable

5

TWIST GRIP COVER PERFORATE 05

61002013000

Unavailable

6

FIXED GRIP PERFORATED 05

61002052000

Unavailable

8

REAR MIRROR L/S 05

58712040100

Unavailable

9

REAR MIRROR R/S 05

58712041100

Unavailable

10

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

11

THROTTLE CABLE OPEN 05

62502091000

Unavailable

12

THROTTLE CABLE CLOSE 05

62502092000

Unavailable

20

MASTER CYLINDER MAGURA D=10.5

60002030000

Unavailable

21

CLAMP MIRROR WITH CLAMP

60002044000

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

23

CHOKE LEVER CPL. LC8 2003

60036050000

Unavailable

24

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

25

COVER HYD.CLUTCH WITH CHOKE 03

60002033000

Unavailable

26

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

27

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

28

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

29

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

30

CLUTCH LEVER LONG CPL. 2003

60002031000

Unavailable

31

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

17

START-STOP SWITCH AD 03

58411074300

Unavailable

18

LIGHT SWITCH 05

61011070000

Unavailable

32

CHOKE CABLE LC8 ADVENTURE 03

60002095000

Unavailable

33

CLUTCH PIPE LC8 ADV '03

60032063100

Unavailable

34

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

7

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

19

CLUTCH SWITCH 03

58411049100

Unavailable
