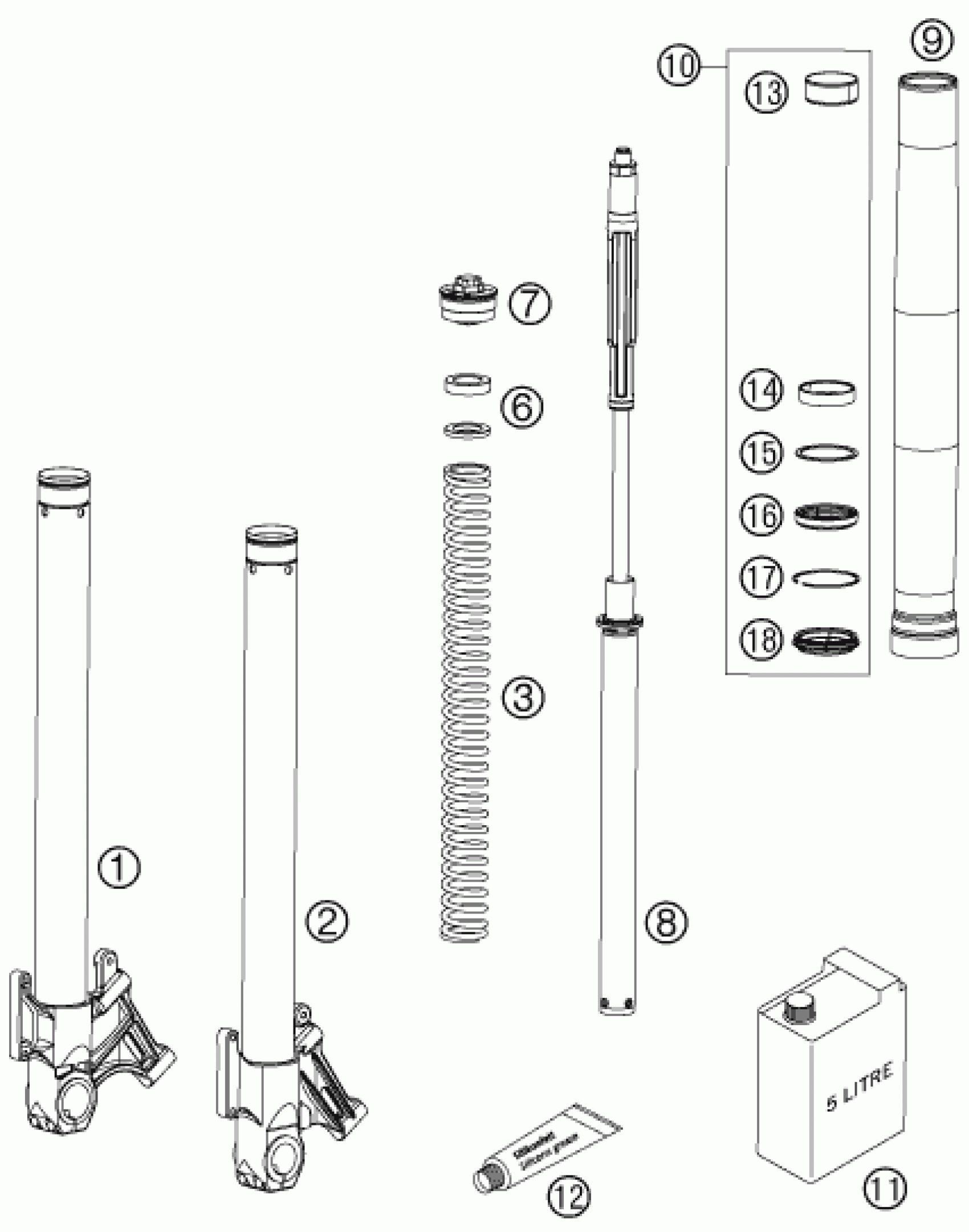

KTM 950 SUPERMOTO BLACK 2005 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

AXLE CLAMP R/S CPL. 05

48600482S1

Unavailable

2

AXLE CLAMP L/S CPL. 05

48600483S1

Unavailable

3

SPRING C=5,6 L=450 D=5,5 05

91410044S

$145.85

6

Preload bush 26,5x42x1,5

48600053

$4.11

6

Preload bush 42x26,5x2,5

48600036

$2.05

6

Preload bush 26,5x42x5

48600037

$4.11

7

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

$127.99

8

CARTRIDGE CPL.FOR SPRING D5.25

48600502S

Unavailable

9

OUTER TUBE L=550MM D=54/60

48600484

$624.48

10

REPAIR-KIT GASKET 05

R14011

$106.21

11

FORK OIL SAE5 5L 2005

48600401S1

$149.59

12

SILICONE GREASE F. DUST STRI

T511

$34.59

14

DU-BUSH D48XD52X12DDL02

48600429

$12.05

15

Supportwasher 50x57,6x1,5

48600013

$3.08

16

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

17

Snap ring SB58x1,5 acc drawing

48600070

$2.05

18

DUST CAP D=48 58,4X11,8

48600400

$12.80

13

DU-BUSH D47XD49X20DDL02

48600428

$12.05
