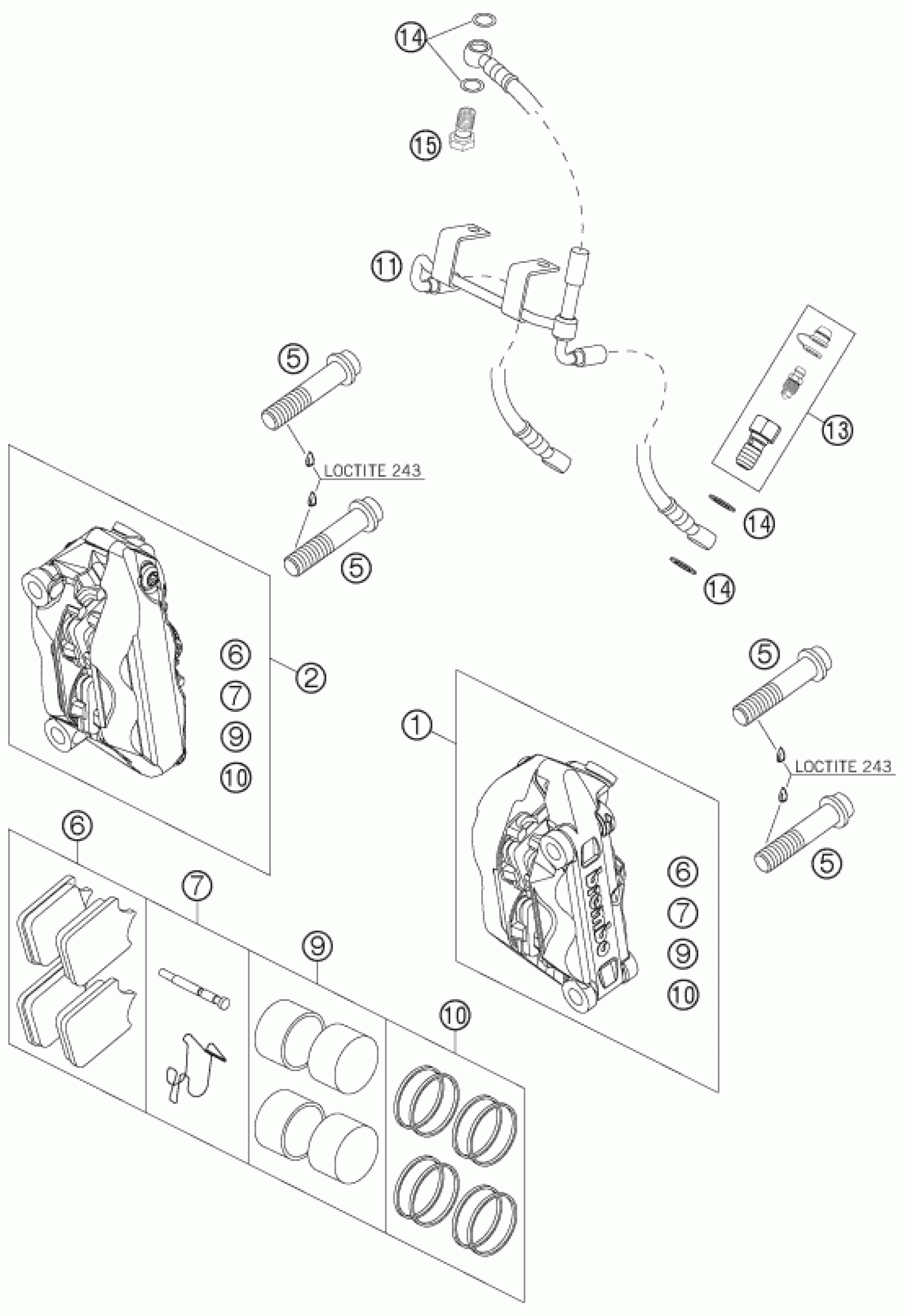

KTM 950 SUPERMOTO BLACK 2005 FRONT BRAKE CALIPER Diagram

#

Description

Price

15

HOLLOW SCREW M10X1X19

50213025000

$6.54

1

BRAKE CALIPER RADIAL L/S 05

62513015000

$382.78

2

BRAKE CALIPER RADIAL R/S 05

62513016000

$264.25

5

AH-COLLAR SCREW M10X1,25X55

0035100559

$3.08

6

BRAKE PAD FR. TOSHIBA TT2172HH

61013030000

$77.41

7

PINS + SPRINGS F. BRAKECALIPER

61013018000

$30.38

9

BRAKE PISTONS 4X

61013019000

$79.00

10

REP.KIT SEALING RINGS 4X

61013019100

$33.65

11

BRAKE PIPE FRONT CPL. 05

62513012000

$113.89

14

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

13

BLEEDER SCREW CPL. 05

62513020000

$27.48
