Description

Price

4

BALANCER WEIGHT R/S 05

60036074150

$63.13

5

woodruff key DIN 6888 4x5x13

0888040050

$4.11

6

TIMING GEAR 18-T 03

60036014018

$51.23

7

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

3

SPREAD TRANSMISSION 05

60036081000

$130.37

1

hex nut M20x1,. H=6mm

60036073150

$6.91

2

STOP DISK 20,2 X 34 X 1

60033043000

$2.05

8

TIMING VALVE JACKSHAFT CPL.

60036073100

$221.96

9

CYL. ROLLER BEAR. NUP 204E

60030024100

$85.92

10

CYL.ROLLER BEARING 26,5X47X14

60030021000

$42.35

11

SHAFT SEAL RING 12X20X5 B

0760122050

$8.03

12

SPRING WASH. 30,5X46,5X0,6-1,5

0093463006

$2.61

13

CLAMPING WHEEL 35-Z 05

60036083035

$50.86

14

TENSION SPRING 05

60036081050

$12.15

15

DRIVE WHEEL 35-T 05

60036082035

$56.93

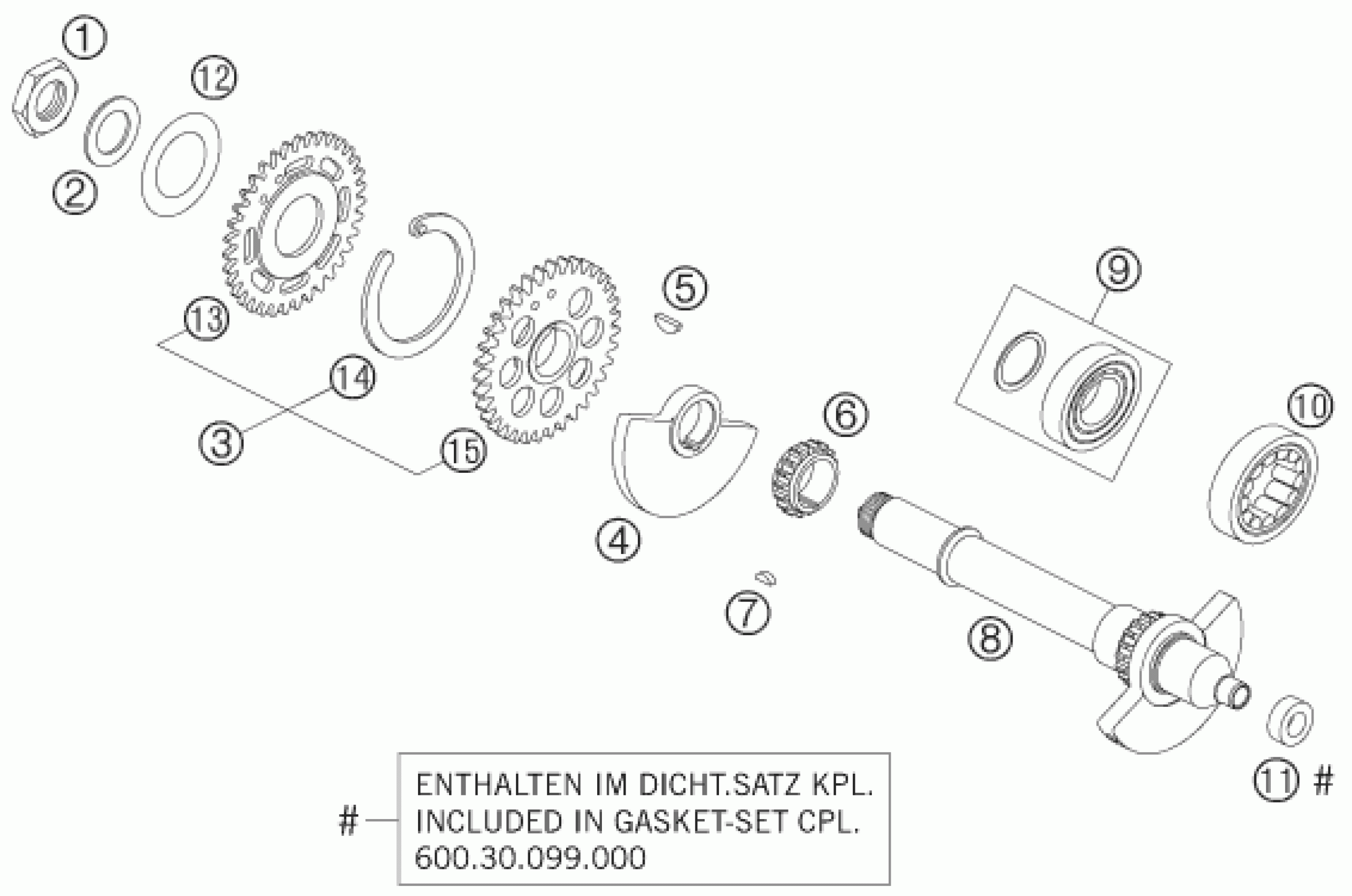

KTM 950 SUPERMOTO BLACK 2005 BALANCER SHAFT Diagram
