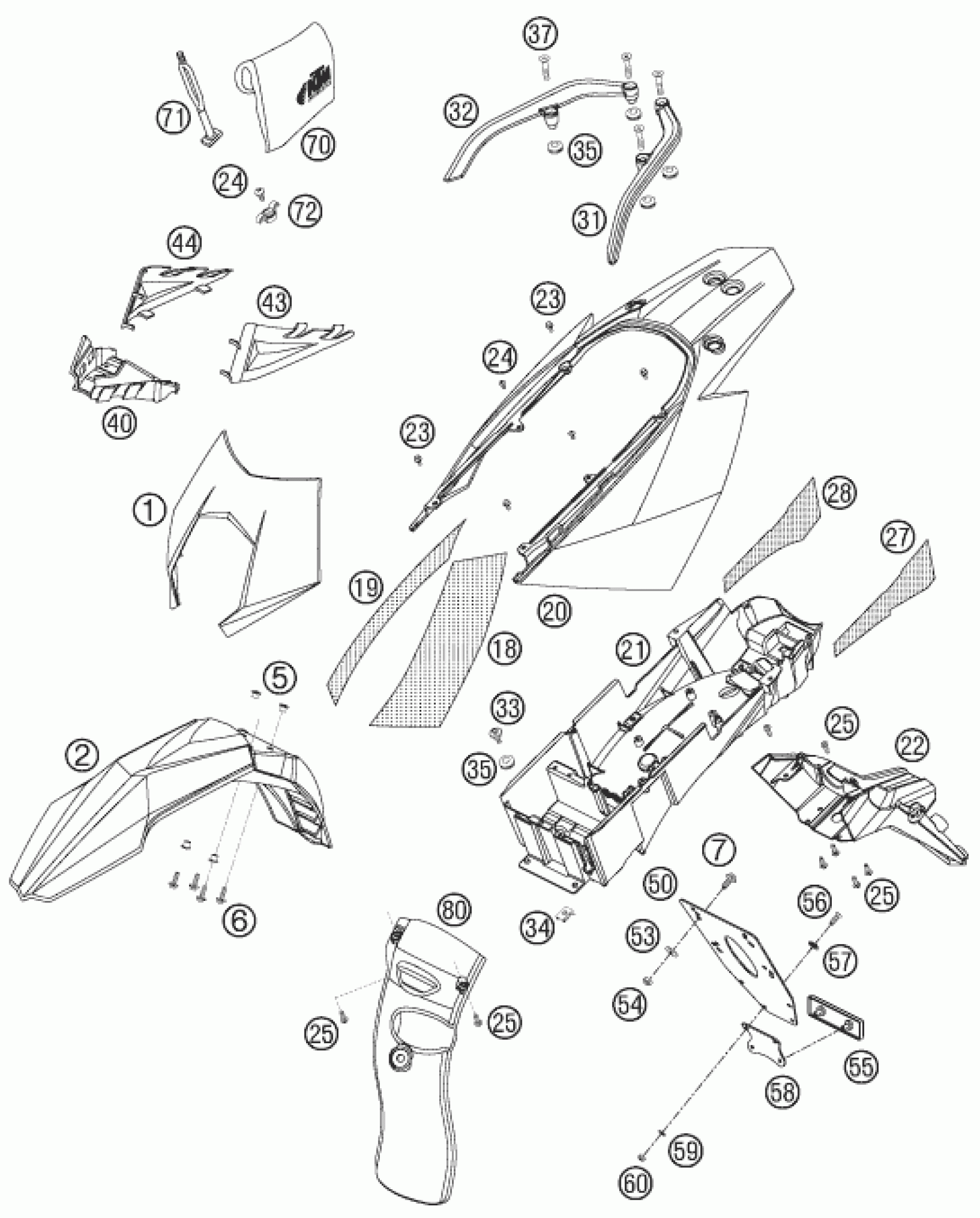

KTM 950 SUPERENDURO R 2007 MASK, FENDERS Diagram

#

Description
Price

2

FENDER FRONT ORANGE 06

6300801000004

$33.17

5

SPACER BUSHING FRONT FENDER

58408009050

$3.08

6

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

1

HEAD LIGHT MASK BLACK 06

5860800100030B

Unavailable

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

18

THERM. PROT.FOIL L/S ABOVE 07

62508018150

$18.50

19

THERM.PROT.FOIL R/S ABOVE 07

62508018160

$23.37

20

REAREND TOPPART BLK+DECAL 06

6250801800030B

Unavailable

21

REAR END LOWER PART 08

62508019400

Unavailable

22

NUMB.PLATE CARRIER 06

63008015000

$22.65

23

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

24

SCREW FOR PLASTIC 50X12

0016050121

$2.05

25

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

27

THERMAL PROTECTON FOIL L/S 07

62508019250

$12.61

28

THERMAL PROTECTON FOIL R/S 07

62508019360

$8.36

31

HAND GRIP L/S 07

6301200800001S

$58.15

32

HAND GRIP R/S 07

6301200900001S

$50.71

33

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

34

clip nut M6

54603048100

$4.11

35

RUBBER SLEEVE D=12MM

41001052000

$4.11

37

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

$3.08

40

SPLASH PROTECTOR FRAME 05

60003087000

$5.22

43

COVER FRAME L/S REAR 05

62503083000

$2.61

44

COVER FRAME R/S REAR 05

62503084000

$2.15

50

license plate mouning plate

60012081200

$8.41

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

REFLECTOR RED

58412080000

$5.23

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

57

WASHER 6MM

40006006000

$1.49

58

BRACKET FOR REFLECTOR

58412080050

$6.07

59

WASHER DIN0125-A 5,3

0125050003

$1.49

60

Self locking nut DIN 985 M5

0985050003

$2.05

70

TOOL SET 950 SUPERENDURO 06

63029099000

Unavailable

71

RUBBER L=145MM

50303018000

$6.44

72

SUPPORT TOOL SET 05

62508021000

$8.71

80

SPLASH PROTECT. 06

63006010000

$12.97
