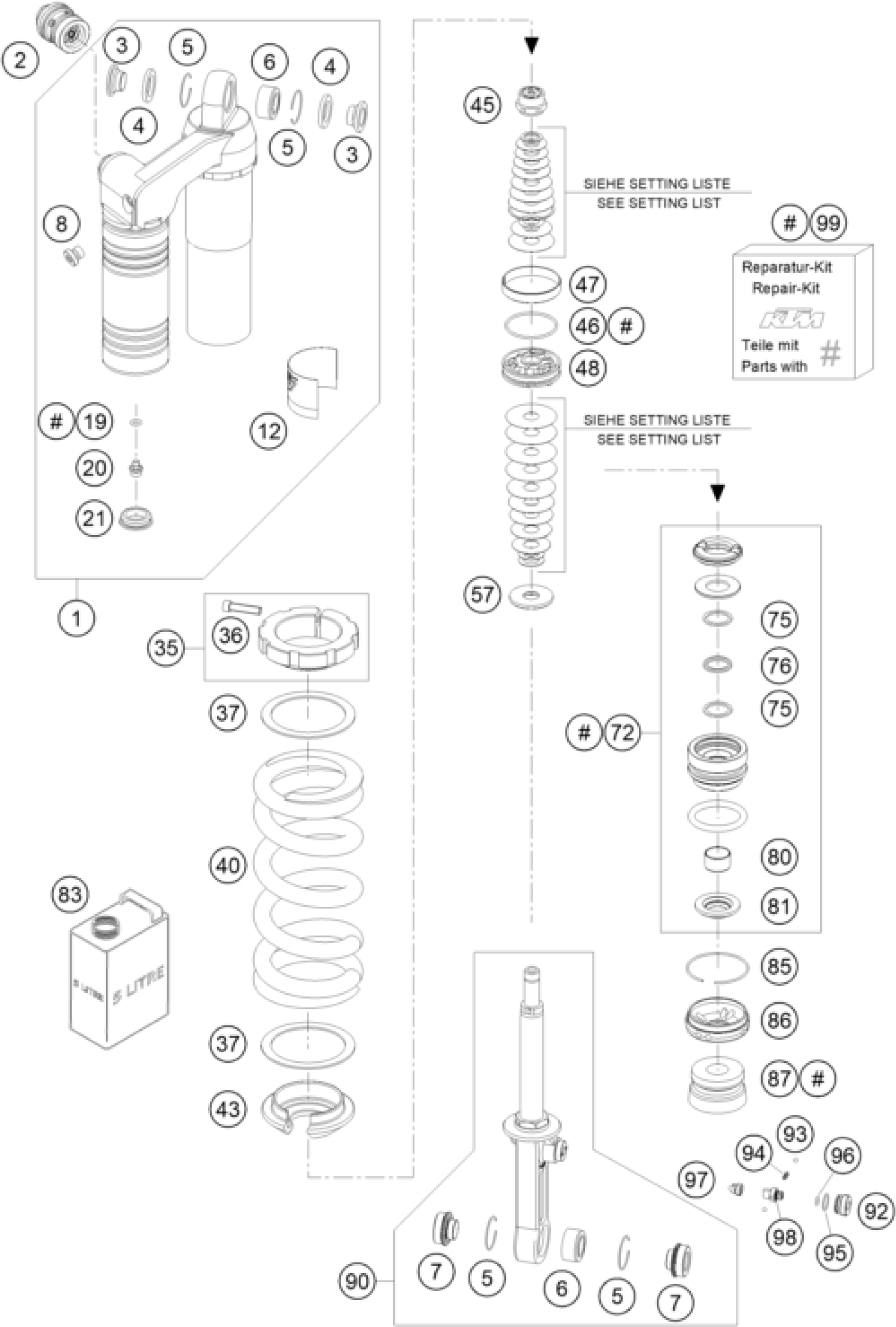

KTM 950 SUPERENDURO R 2007 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

21

Rubber cap do not open 22x5,5

46811208

Unavailable

85

Round-wire snap ring 49x1,5

46810010

Unavailable

86

COVER H=9,5

46180397

Unavailable

87

Rubber pad 17,2x45,2x40 black

50180276

Unavailable

1

MONOSHOCK TOP PART CPL. 07

46180398S2

Unavailable

2

50180213S4

Unavailable

3

Bearing bush 14x15/18/24,5x10,

50180366

Unavailable

4

Seal ring 19,5x26x3

46180003

Unavailable

5

Round-wire snap ring 25x1

50180168

Unavailable

6

Ball joint bearing 15x25x13

50180005

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

12

STICKER WP KTM

52000044

Unavailable

35

ADJUSTING NUT M52X1,5

46180394S

Unavailable

36

AH SCREW M5X25

46180354

Unavailable

37

Washer 58,6x73,6x1,5

50180410

Unavailable

40

SPRING 140-215 (59)D=13,75 TIT

91010277S

Unavailable

43

Spring retainer 28x73x15

46180396

Unavailable

45

Piston rod nut M12x1

46180597

Unavailable

46

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

47

PISTON RING

46810361

Unavailable

48

Piston 12,05x45,5x12,6 4,5/7

46810560

Unavailable

57

Rebound disc 12x35x4 h0

14460017

Unavailable

72

ADAPTOR CPL. D=46 H=28 D=38

46180341S

Unavailable

75

Washer 18x22,5x1,5 plastic

50180102

Unavailable

76

X-ring 18x2,62 Viton70

50180101

Unavailable

80

Guide bushing 18x20x12

46180119

Unavailable

81

Dirt scarper 18mm

50180082

Unavailable

83

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

90

MONOSHOCK LOWER PART CPL. 07

46180399S2

Unavailable

92

Screw cap M16x1

46180005

Unavailable

93

Steel ball d3

40540603

Unavailable

94

Spring (1,7) l7,9

48600028

Unavailable

95

O-ring 12x1 NBR70

46180013

Unavailable

96

O-ring 4x1,5 NBR70

50180222

Unavailable

97

Adjustment screw slot rebound

46180016

Unavailable

98

Adjustment screw slot rebound

46180006

Unavailable

99

REPAIR KIT GASKET 05

R15004

Unavailable

7

Bearing bush 14x15/23,5x14,45

46181307E

Unavailable
