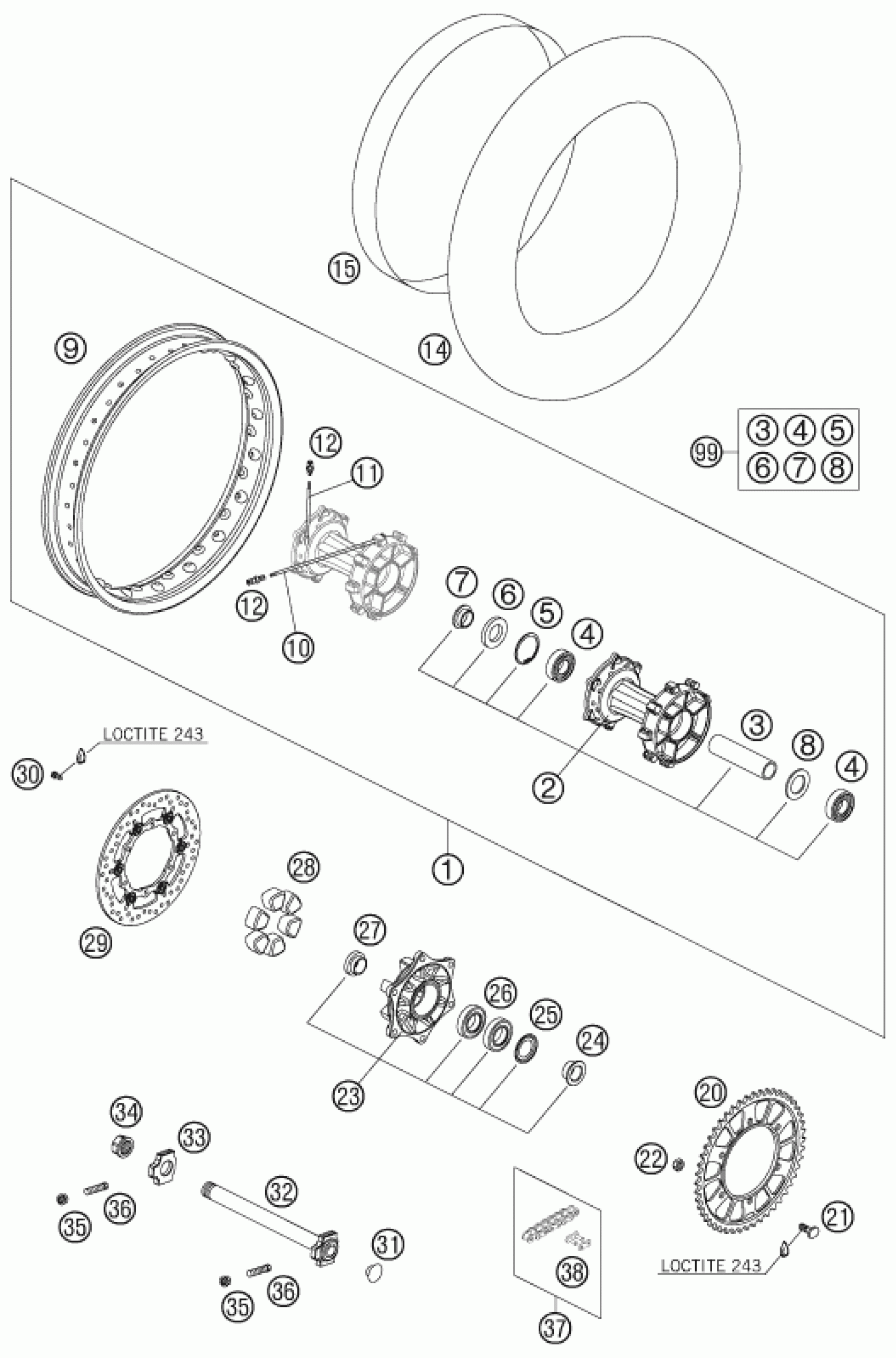

KTM 950 SUPERENDURO R 2007 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 2,50X18'' 0

6301000104430

Unavailable

2

REAR HUB CPL. 06

60110010044

Unavailable

3

Bearing spacing tube L=124.8mm

60010011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

Unavailable

8

Spacer ring 03

60010015000

Unavailable

9

REAR RIM 2,50X18'' DIRT STAR 0

6301007000030

Unavailable

10

SPOKE M5X219 06

63010171000

Unavailable

11

SPOKE M5X196 06

63010071000

Unavailable

12

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

14

TUBE 110/100C-18

50310075100

Unavailable

15

RIM TAPE 18'' 32/2 MM 0

63010073000

Unavailable

20

REAR SPROCKET 42-T 03

60010051042

Unavailable

20

REAR SPROCKET 45-T 03

60010051045

Unavailable

21

SPROCKET SCREW M10X1,25 03

60010052000

Unavailable

22

Hexag. nut DIN 980V M10X1.25 S

0980101253

Unavailable

23

SPROCKET SUPPORT CPL. 06

60110050044

Unavailable

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

25

NILOS RING 6006AV

60110016000

Unavailable

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

28

Rubber damping block 91

54610459000

Unavailable

29

BRAKE DISK REAR D=240MM 06

60110060000

Unavailable

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

31

PLUG MNE2673

60010081050

Unavailable

32

WHEEL SPINDLE REAR CPL. 03

60010081044

Unavailable

33

Chain tension adjuster, right,

60010084000

Unavailable

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

screw M10x1.25x50 WS10

50304040100

Unavailable

37

CHAIN 525 INCL. MASTER LINK

60010365118

Unavailable

38

MASTER LINK FOR CHAIN 525 07

60010266000

Unavailable

99

REAR WHEEL REP. KIT ADV

60010015010

Unavailable
